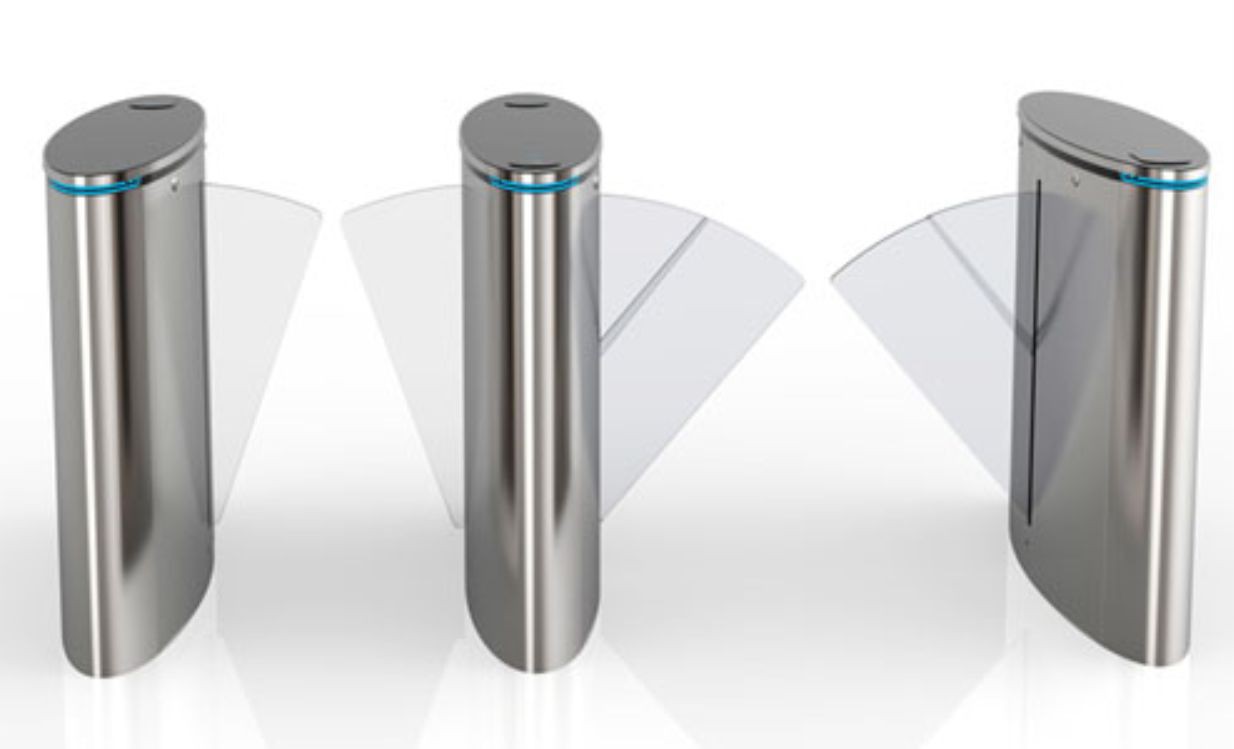

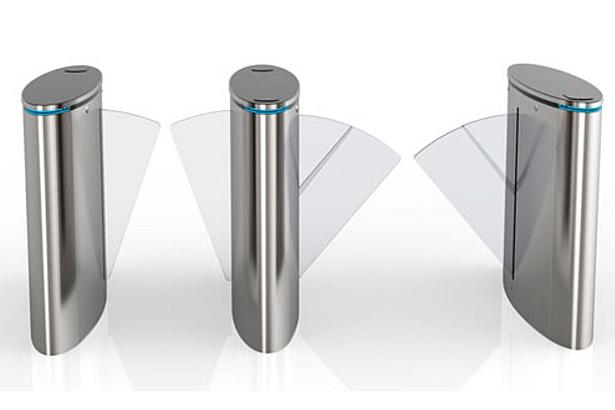

Flap Barrier Gate Single/Dual Core

Flap Barrier Gate Single/Dual Core
V-PM3410SC/DC-FBT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic flap barrier
  • Single/dual core and bi-directional operations supported
  • Half height operation with passage width of <550mm
  • Optional transparent telescopic flap for 900mm passage width
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe & fail lock function supported in case of emergency
  • Top quality AISI 304 grade SS construction with IP44 rating
  • Passage width 550mm standard (900mm optional) with throughput rate of 35–40 persons per minute and passing time 5s default (adjustable 0–25s)
  • Fast opening and closing speed of 0.5–0.8s with unidirectional and bidirectional passage direction
  • 5 pairs of infrared sensors for pedestrian protection with 40W DC brushless motor and service life of >5 million operation cycles
  • Operating voltage DC 24V, power supply AC100~240V and power consumption 35W with IP44 ingress protection rating
  • AISI 304 grade stainless steel chassis (optional 316 grade) with acrylic door material
  • Working temperature -20°C to +70°C and relative humidity ≤90% non-condensing
  • Overall dimensions 1400 × 300 × 990mm, net weight 65kg single core and 75kg double core, certified CE, FCC and RoHS
