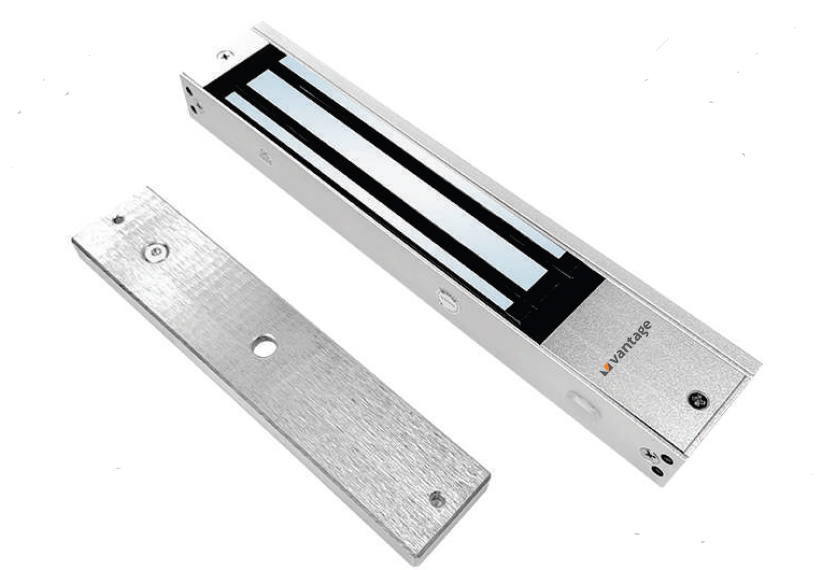

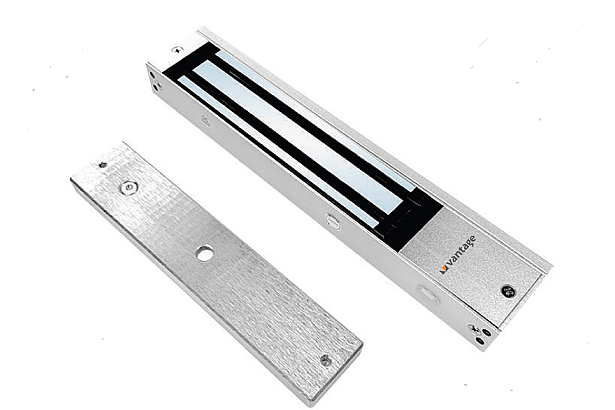

Single Door EM Lock 600 LBS With Door Status Feedback

Single Door EM Lock 600 LBS With Door Status Feedback
VV-AX601EM-SDC4
  • Single door electro‐magnetic lock with 600 Lbs holding force
  • Surface mount
  • Built-in LED indicator
  • Operating voltage 12VDC
  • Current drawn 450mA
  • MOV surge protection
  • Optional relay circuit for door status feedback
  • Holding force 600 lbs for single door
  • Operating voltage DC 12V 450mA or DC 24V 200mA
  • Power supply DC 12V 1A
  • Built-in LED indicator and buzzer support
  • Door status, push and lock signal supported
  • Service life 1,000,000 operations
  • Connection interface 5 wire
  • Operating temperature -30°C to 70°C
  • Dimensions 250 × 47 × 26 mm
  • Construction durable aluminum with anti-residual magnetism design
