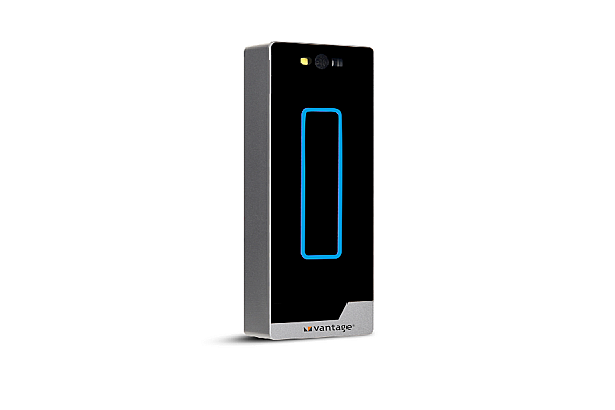

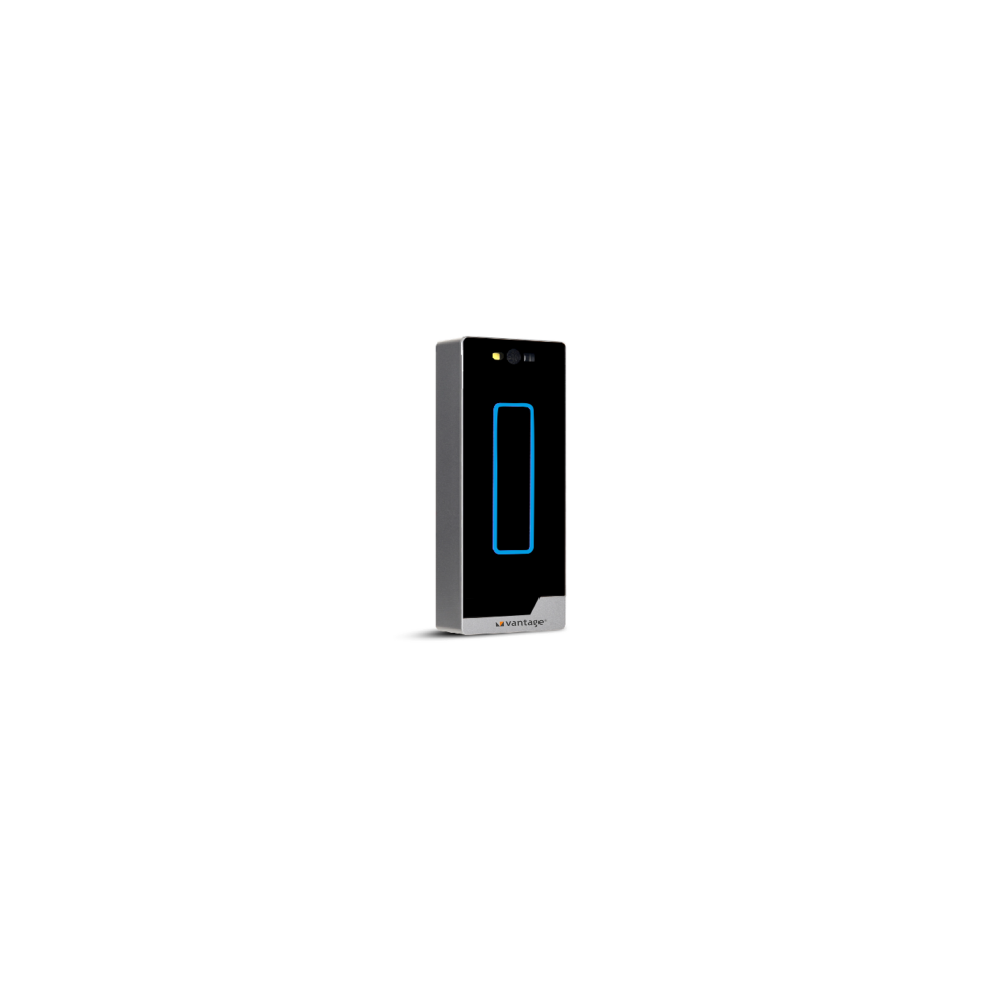

QR Code Scanner + RFID Card Reader

QR Code Scanner + RFID Card Reader
VV-RF110QR-T3
Image of 'IP66' feature Image of 'QR Code' feature Image of 'RFID Card' feature Image of 'Vandal Resistance' feature
  • Dual identification mode access control with QR code scanner and ID card reader
  • Multiple card types and communication interface supported
  • Rugged vandal resistant enclosure
  • Outdoor application rated with IP66 ingress protection level
  • Authentication mode QR code scanner and RFID card reader
  • Communication interface Wiegand 26/34 (optional RS232/RS485)
  • QR code formats Code128, Code39, EAN-8, EAN-128, EAN-13, QR Code, ISBN-13, Data Matrix, PDF417 and UPC-A
  • Card type 125KHz proximity cards (optional 13.56 MHz cards)
  • Reading distance 0 to 10 cm for QR code and 3 to 6 cm for RFID card
  • Decoding mode image decoding
  • Detection speed 100 ms
  • Protection rating IP66 with operating temperature -20°C to 60°C
  • Power supply DC 9 to 12V with working current 120 mA
  • Dimensions 120 × 45 × 15 mm with buzzer and LED alert support
