RFID Entry/Exit Readers

RFID Entry/Exit Readers

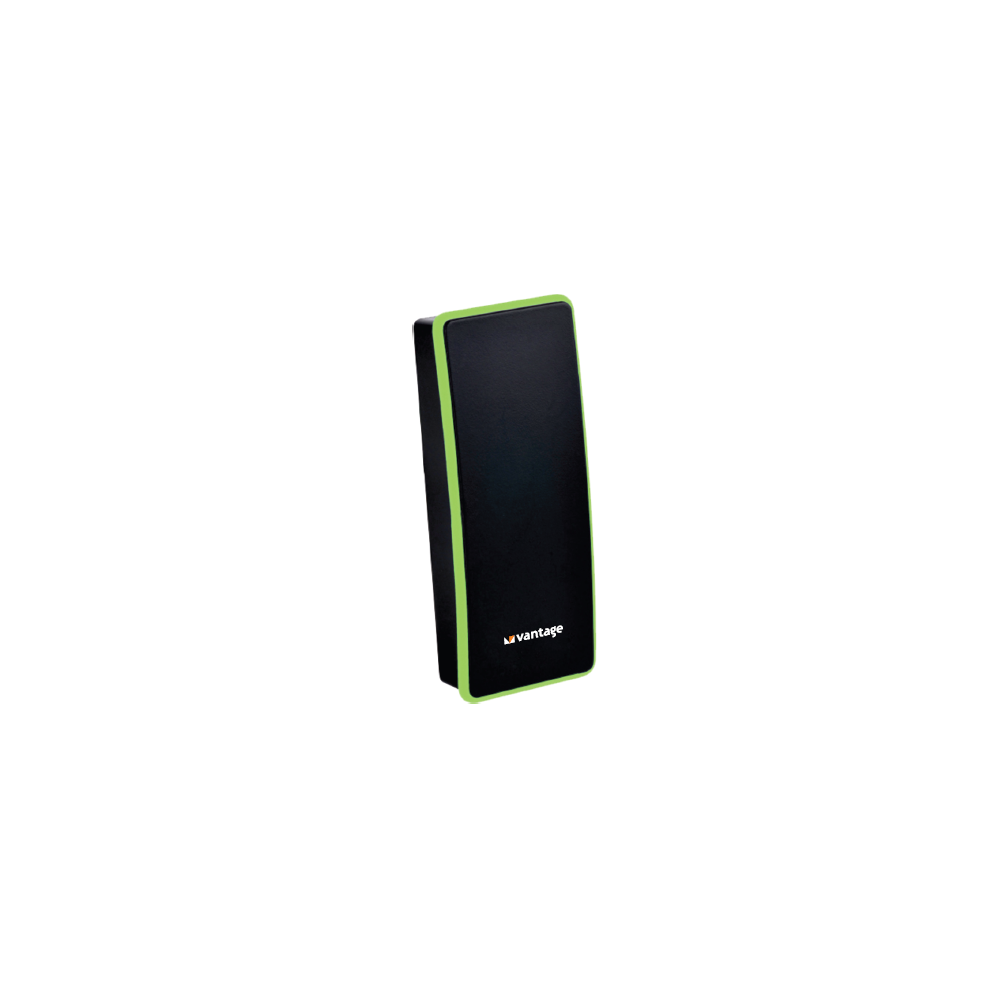

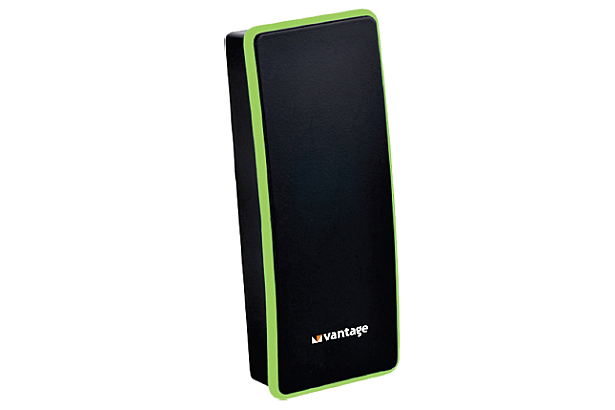

VV-RF502M-EMA1
Image of 'Buzzer Sound' feature Image of 'EM Card' feature Image of 'Multi Color LED Indicator' feature
  • Wiegand‐based Entry/Exit Readers
  • Operating frequency of 13.56 MHz
  • Read range of 10cm
  • Wiegand transmit distance: 100Mtr
  • Multi‐cards simultaneous read ability
  • Lightning proof protection
  • Premium ABS enclosure with blue/green LED indication
  • Operating frequency 13.56MHz with ISO14443A protocol supporting Mifare, NFC and Desfire card types
  • General reading distance 100mm with card reading reaction time 100ms and communication distance up to 100 metres
  • Working voltage DC 9~15V with working current ≤50mA
  • Wiegand 26/34 output format with IP65 waterproof rating
  • Working temperature -15°C to +60°C and storage temperature -20°C to +80°C with working humidity 10% to 95% R.H
  • Overall dimensions 122 × 52 × 25mm, certified CE, FCC and RoHS
