RFID Entry Exit Reader

RFID Entry Exit Reader

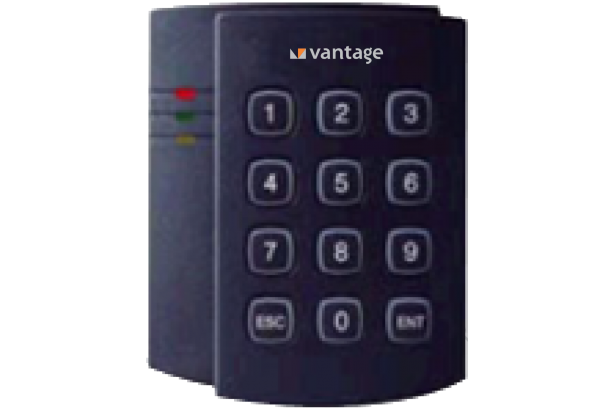

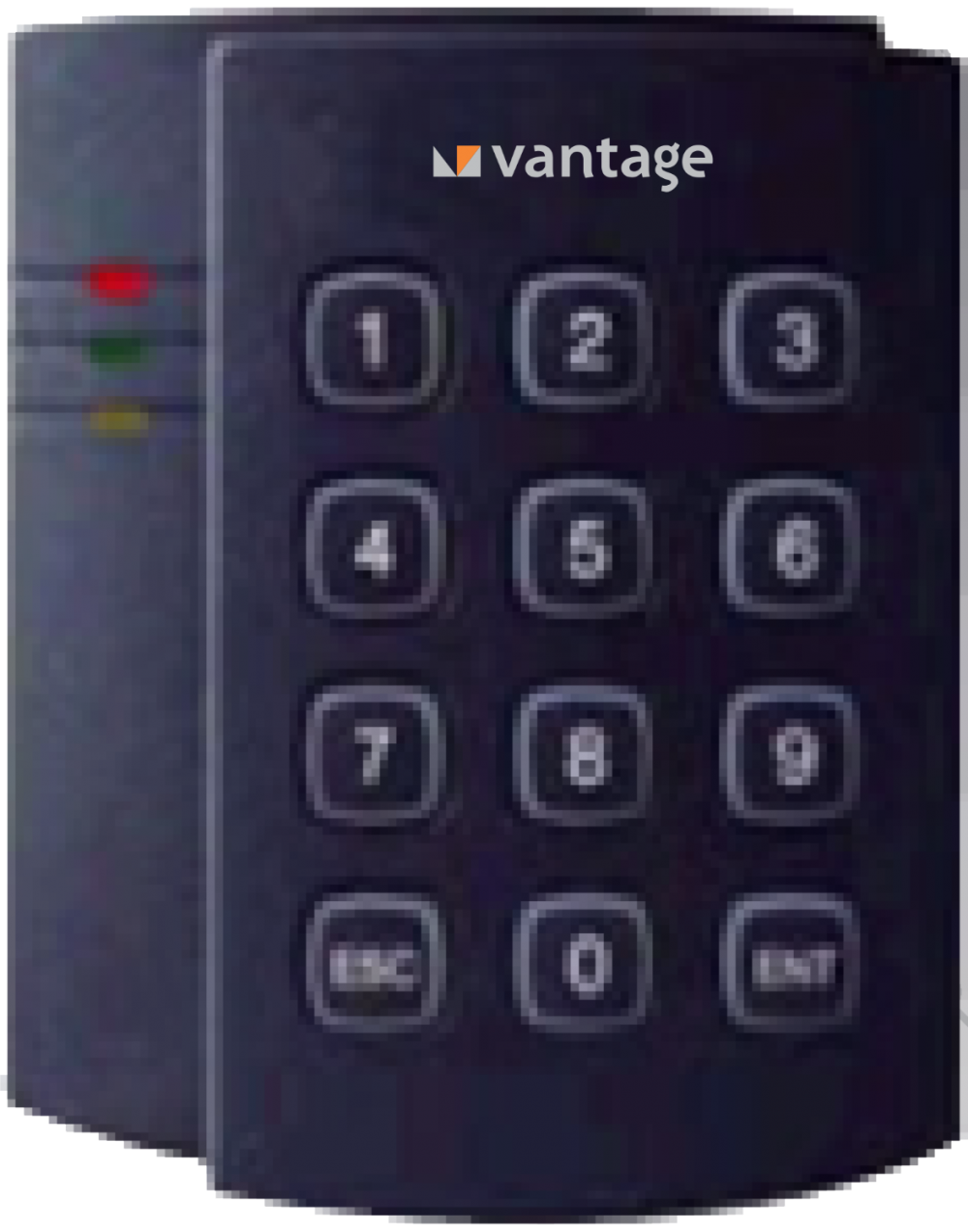

VV-RF203K-26BE2
Image of 'Buzzer Sound' feature Image of 'EM Card' feature Image of 'Multicolor LED Indication' feature Image of 'Numeric Keypad' feature
  • Wiegand-based Entry/Exit Readers with keypad
  • Operating frequency of 125 kHz
  • Read range of 3-5 cm
  • Weigand transmit distance: 200 Mtr
  • Lightning-proof protection
  • Multi-cards simultaneous read ability
  • Authentication mode - Card only, Pin only, Pin + Card
  • DC 9–16V working voltage
  • ≤100mA working current
  • Up to 100m communication distance
  • 3–5cm card reading range
  • 125 kHz operating frequency
  • Wiegand 26/44 output format
  • EM-ID and Mifare card support
  • -10°C to +70°C working temperature
  • 10% to 95% RH working humidity
  • 108 × 88 × 32 mm dimensions
