Access Control & Time Attendance Solutions

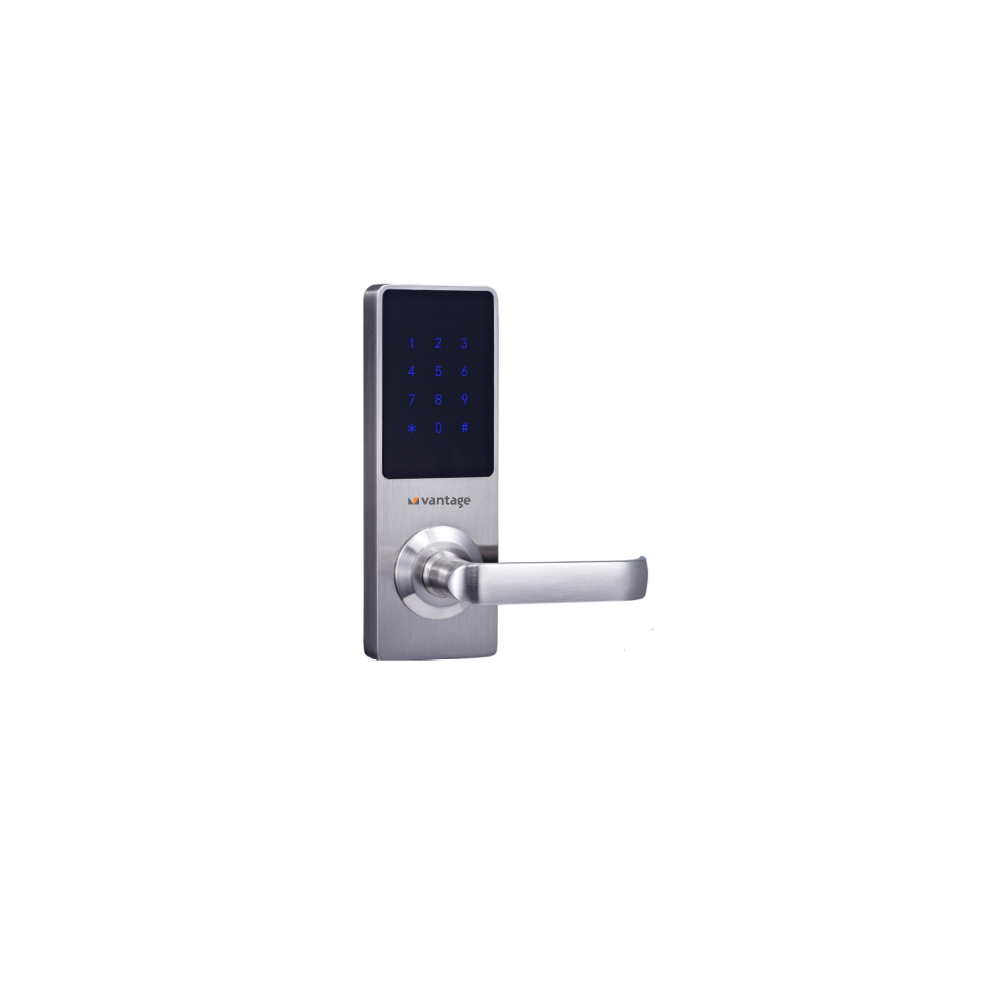

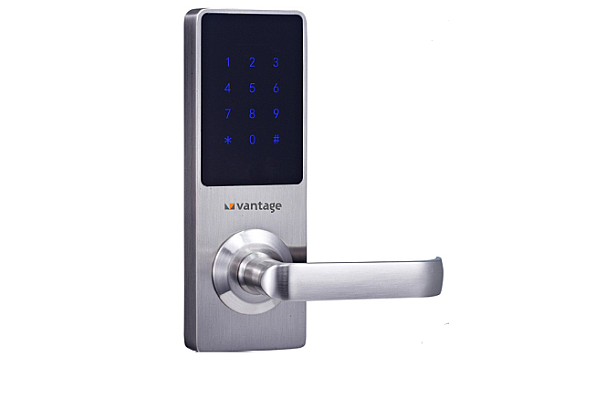

RFID & PIN Code Access Door Lock
VP-DL200S-CAY3
- Access modes through password / card/ key
- LED backlit touch keypad
- Enhanced security by random password for code access
- Idle handle design to prevent from forcible entry
- Voice guide for easier and more convenient use
- Voice volume is adjustable, includes mute mode
- Smart alarm for low battery & illegal operation
- External micro USB terminal for back-up power supply
- Zinc alloy construction with 50/50 mortise or tubular latch and Mifare (13.56MHz) smart card support
- User capacity 30 (password) or 100 (card) with unlocking time <1 second
- Password strength 4–6 digits with battery life ≥10,000 cycles
- Door thickness 28–110mm supported with mechanical override key supported (2 keys included)
- Power supply 6V (4×AA alkaline battery) with micro-USB emergency power backup
- Operating temperature -15°C to 55°C
- Overall dimensions 70(W)×200(L)×48(D)mm
