Access Control & Time Attendance Solutions

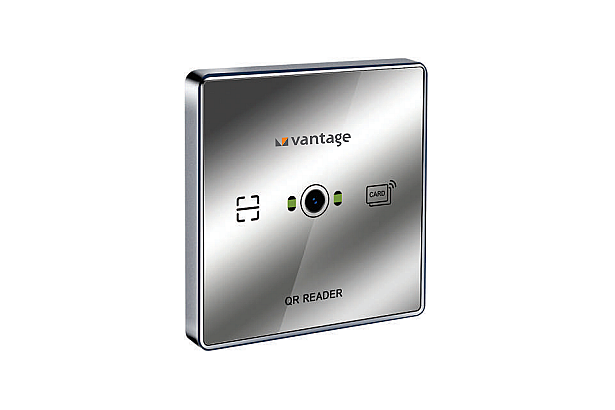

QR Code Scanner + RFID Card Reader
VV-RF100QR-T5
- Dual identification mode access control with QR code scanner and ID card reader
- Multiple card types and communication interface supported
- Rugged vandal resistant metal alloy enclosure
- Outdoor application rated with IP68 ingress protection level
- Authentication mode QR code scanner and RFID card reader
- Communication interface default Wiegand (optional USB, RS232, RS485)
- QR code formats Code128, Code39, EAN-8, EAN-128, EAN-13, QR Code, ISBN-13, Data Matrix, PDF417 and UPC-A
- Card type RFID 125KHz proximity cards (optional NFC 13.56 MHz)
- Reading distance 0 to 10 cm for QR code and 3 to 6 cm for RFID card
- Decoding mode image decoding
- Audio and visual alert supports buzzer and LED
- Enclosure material vandal resistant tempered glass and zinc alloy
- Protection rating IP68 with DC 12V power supply
- Dimension 86 × 86 × 8 mm with working current 60 mA
