Access Control & Time Attendance Solutions

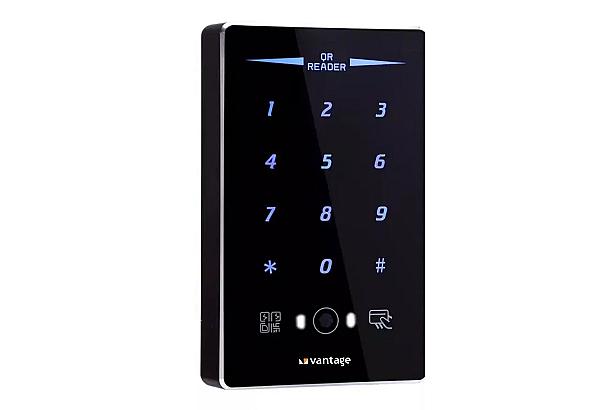

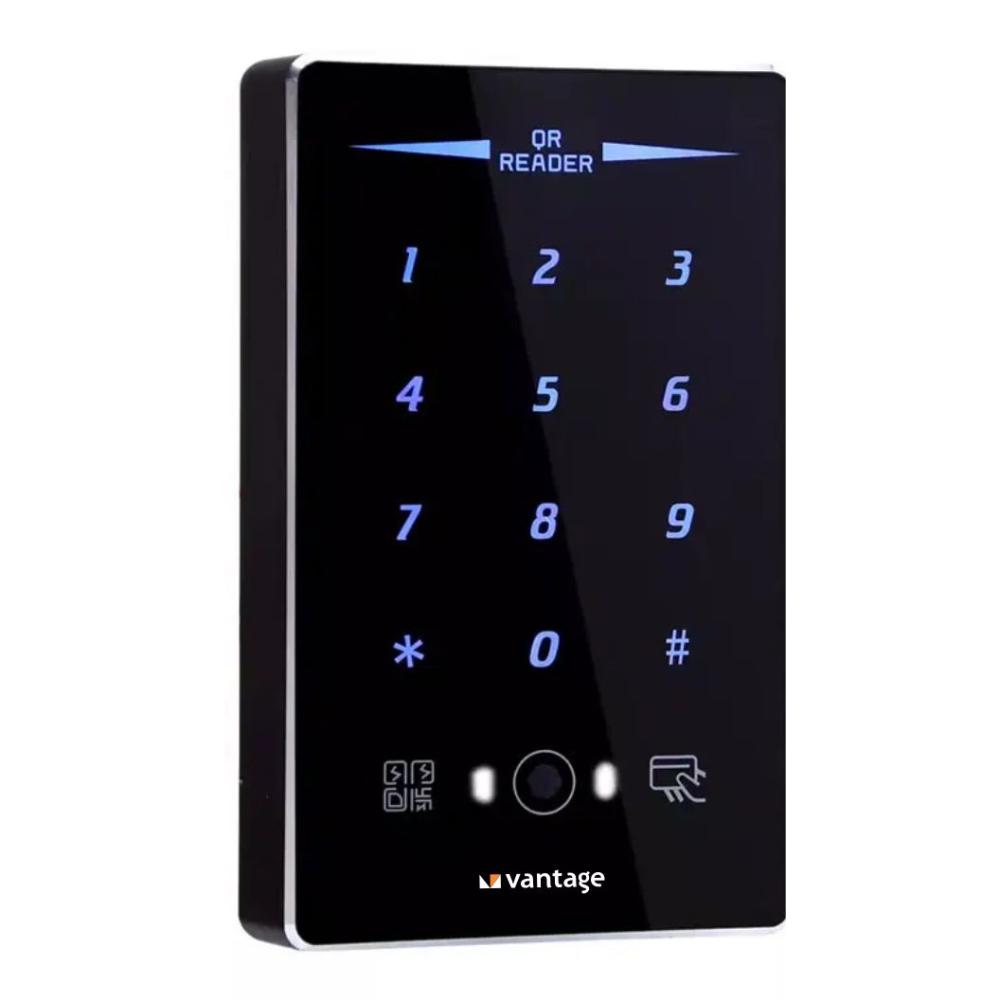

QR Code Reader with PIN and RFID Card

QR Code Reader with PIN and RFID Card
VV-RF120QR-KCAT5
Image of 'Access Control' feature Image of 'EM Card' feature Image of 'QR Code' feature Image of 'Touch Keypad' feature Image of 'Vandal Resistance' feature
  • Supports QR code (1D & 2D), IC card, and password keypad input for flexible access control options
  • Durable aluminum alloy metal housing with a 9H tempered glass panel for high scratch resistance and a sleek, modern finish
  • Wide-angle scan field with high-speed recognition and high accuracy, compatible with mobile screen QR codes, printed QR codes, and metal QR codes
  • Supports both Wiegand and RS-485 communication protocols,ensuring compatibility with any third party access control controllers
  • Smart LED indicators show real-time status: red for power on, green for successful card/QR/password read
  • Supports 1D and 2D QR code reading
  • EM125KHz and MIFARE card support
  • Touch keypad authentication interface
  • Wiegand 26 and 34 bit support
  • RS232 and RS485 communication support
  • QR code reading range up to 15cm
  • Reading speed lower than 200ms
  • Metal frame with tempered glass panel
  • Supports wide voltage DC5V to DC16V
  • Compatible with third party access controllers
