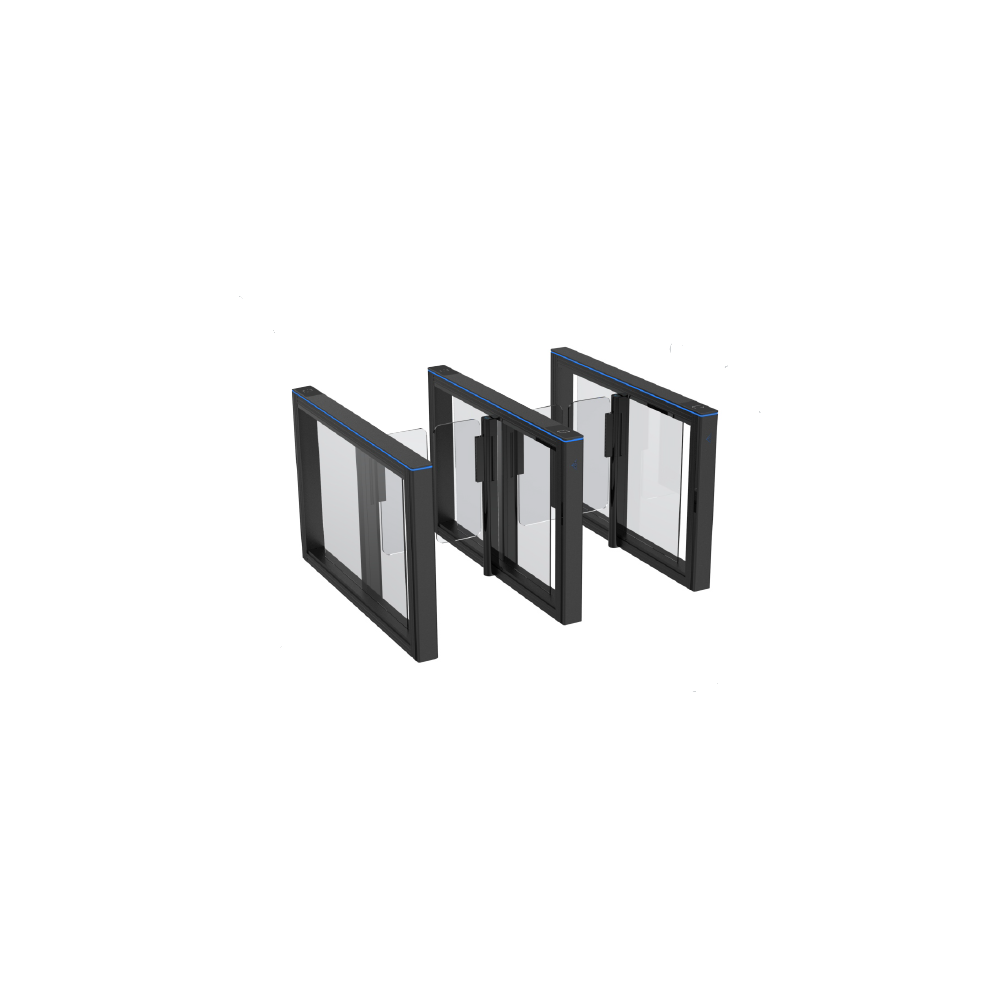

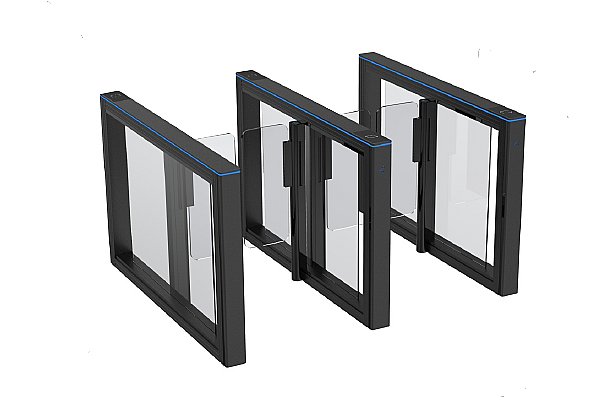

Premium Aluminum Alloy Swing Gate Barrier Single/Dual Core
V-PM4730SC/DC-SGT3
- Heavy-duty motorized-automatic swing gate
- Single/dual machine core with bi-directional operating modes supported
- Half height operation with ≤600mm standard passage width
- LED status indicator & adjustable time out delay
- Automatic reset of swing barrier after each passage
- Integration support with any RFID/Biometric Reader through NO input
- Fail safe function supported in case of emergency
- Top quality durable Aluminum construction with IP41 rating
- Passage width of ≤600 mm standard and ≤900 mm optional with a throughput rate of 35 to 40 persons per minute to handle high footfall entrances efficiently
- Gate opens and closes in just 0.5s to 1.5s with a default passing time of 5 seconds adjustable up to 25 seconds to match your site access requirements
- Equipped with 8 pairs of infrared safety sensors that detect pedestrians in real time to prevent gate impact and ensure injury-free access at all times
- Powered by a servo brushless DC motor at 24V DC with a service life of over 15 million operation cycles for years of silent and maintenance-free performance
- Universal power supply of 100 to 240 V AC with a power consumption of 100 W making it compatible with standard electrical installations across any region
- IP41 rated with working temperature from -25°C to +70°C and humidity tolerance up to 90% for dependable performance across varied indoor environments
- Communication via Relay Input (NO/NC/COMM) with optional RS232 and RS485 support for seamless integration with any RFID or biometric access reader on site
- Compact dimensions of 1500 x 110 x 990 mm with net weight of 75 kg for single core and 85 kg for double core fitting standard entrance lanes without structural changes
