Entrance Management Solutions

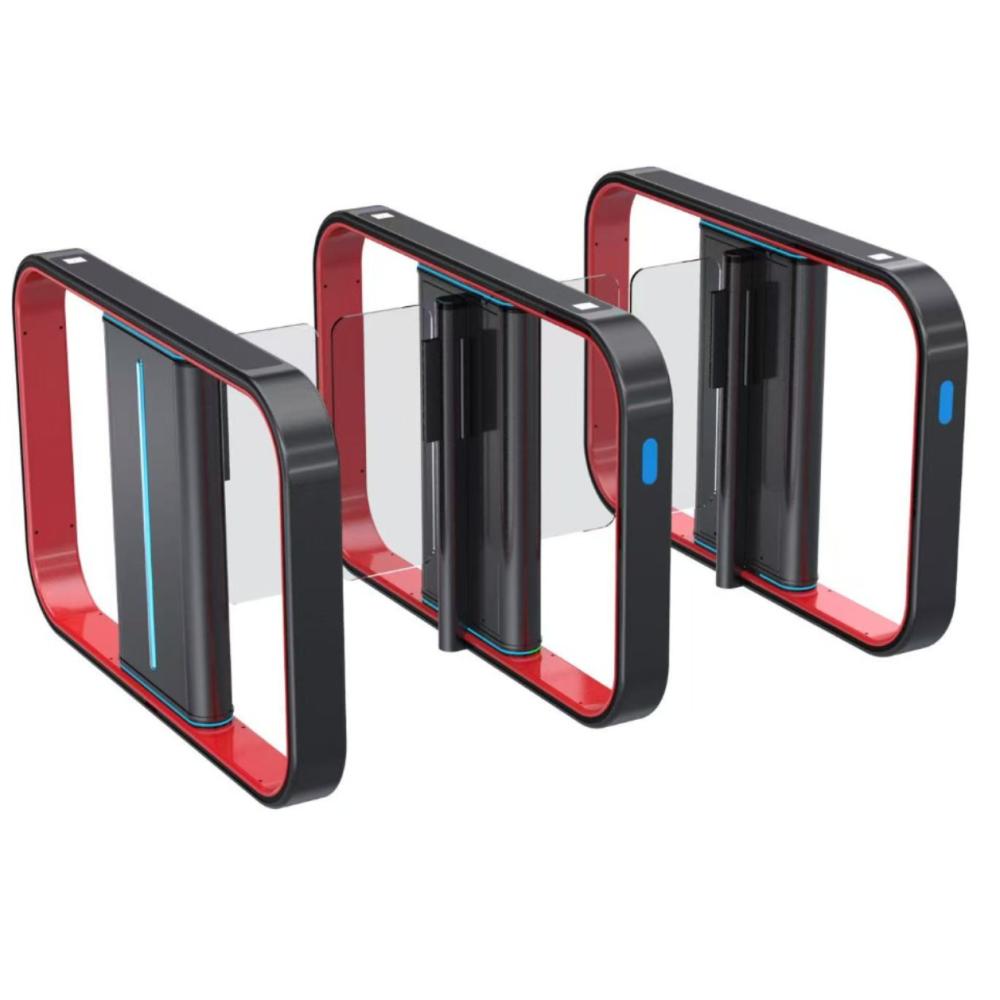

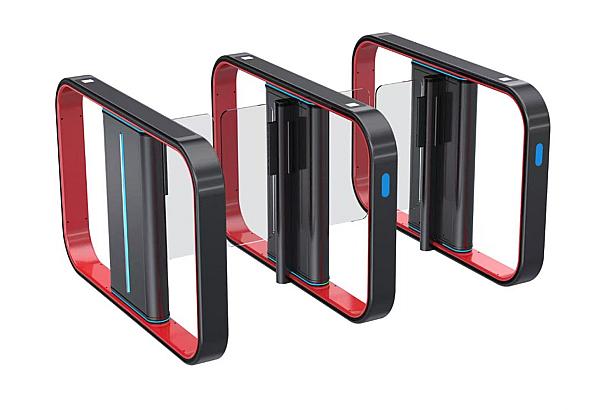

Premium Aluminum Alloy Swing Gate Barrier Single/Dual Core
V-PM4750SC/DC- SGT3
- Engineered for durability with quiet, stable performance and long operational lifespan
- Single / dual machine core with bidirectional operation modes
- Half-height operation with 600mm passage width (optional 900mm)
- Automatic gate reset after each passage
- Supports integration with any RFID/Biometric reader via NO input
- Fail-safe function with anti-tailgating and anti-reverse passage protection during power failure
- Available with multiple housing color options
- High-quality, durable aluminium alloy construction with IP40 rating
- Passage Width: ≤600mm (standard), ≤900mm (optional)
- Throughput Rate: 35–40 persons per minute
- Opening Speed: 0.5 to 1.5 seconds
- Drive System: Servo brushless motor
- Operating Voltage: DC 24V
- Power Supply: 24V 500W / 12V 3A
- Power Consumption: Maximum 100W
- Safety Sensors: Light curtain/bar with 48 detection points
- Communication Interface: Relay input (NO/COM), optional RS232/RS485
- Protection Rating: IP40 ingress protection
