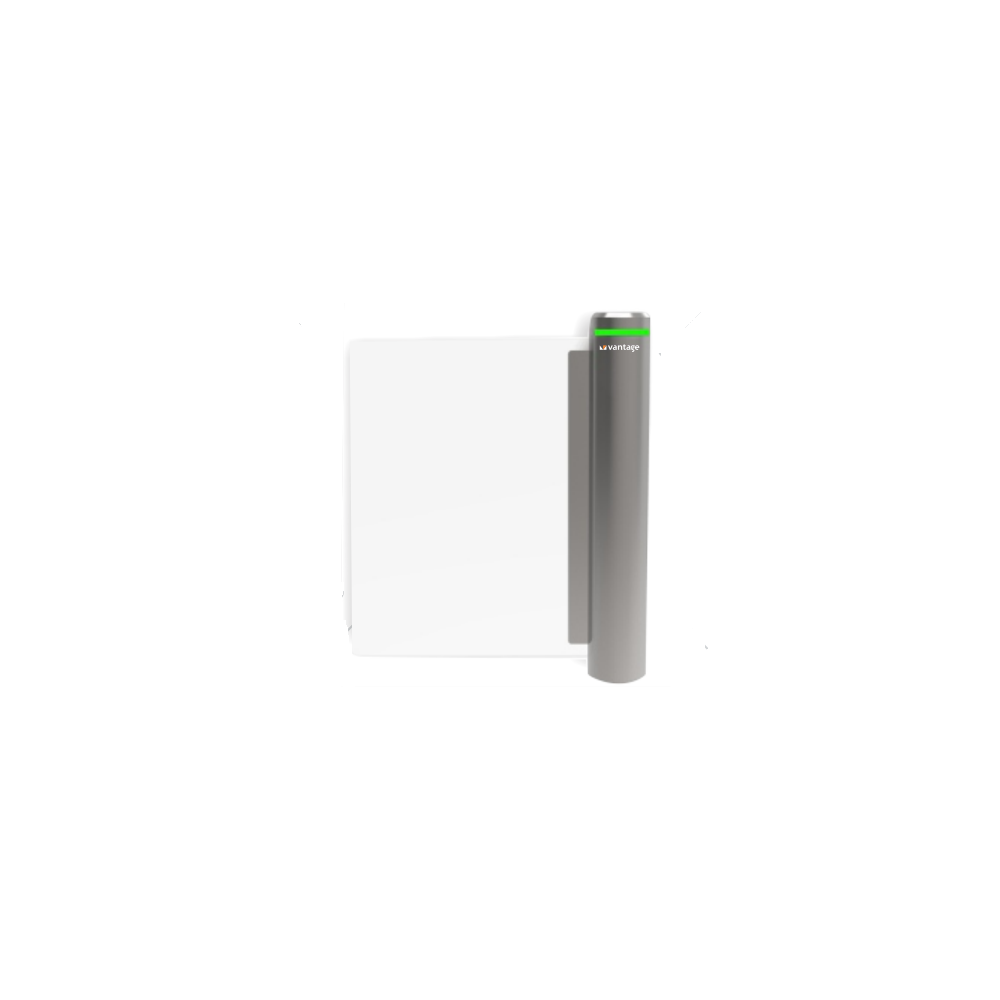

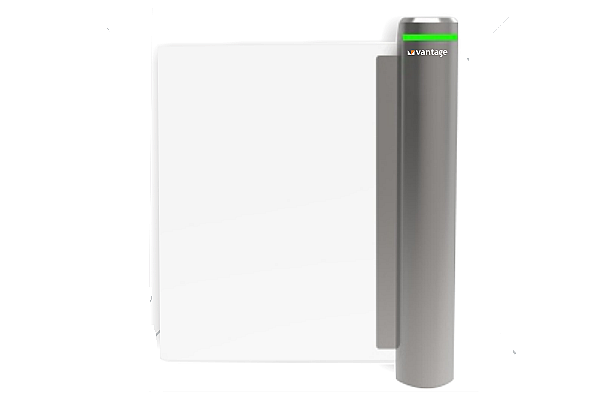

P Type Swing Gate Barrier

P Type Swing Gate Barrier
VP-PM4220-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'Wired Terminal' feature
  • Easy to operate tempered glass swing gate barrier
  • Selectable operating modes- single direction, bidirection, always free or always locked
  • IP54 Ingress Protection Rating
  • Automatic reset of barrier gate after each passage
  • LED indicators optional
  • Adjustable time out delay
  • Integration support with any RFID/Biometric Reader through NO input
  • Top quality AISI 304 grade SS construction
  • 900mm passage width with throughput rate 35 persons per minute
  • Brushless servo motor electro-magnetic DC drive with motor voltage DC 24V and power supply 100–240V AC, frequency 50–60Hz
  • Maximum power consumption 35W with RS485 and 12V dry contact communication interface
  • IP54 protection level with working temperature -25°C to +70°C
  • Dimensions 168×1000mm with net weight 40kg
  • Certified CE, FCC and RoHS compliant
