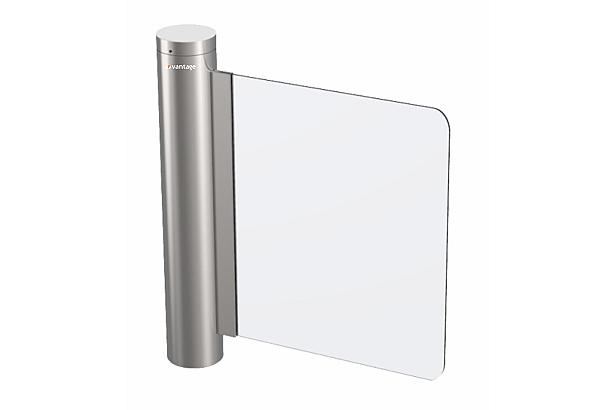

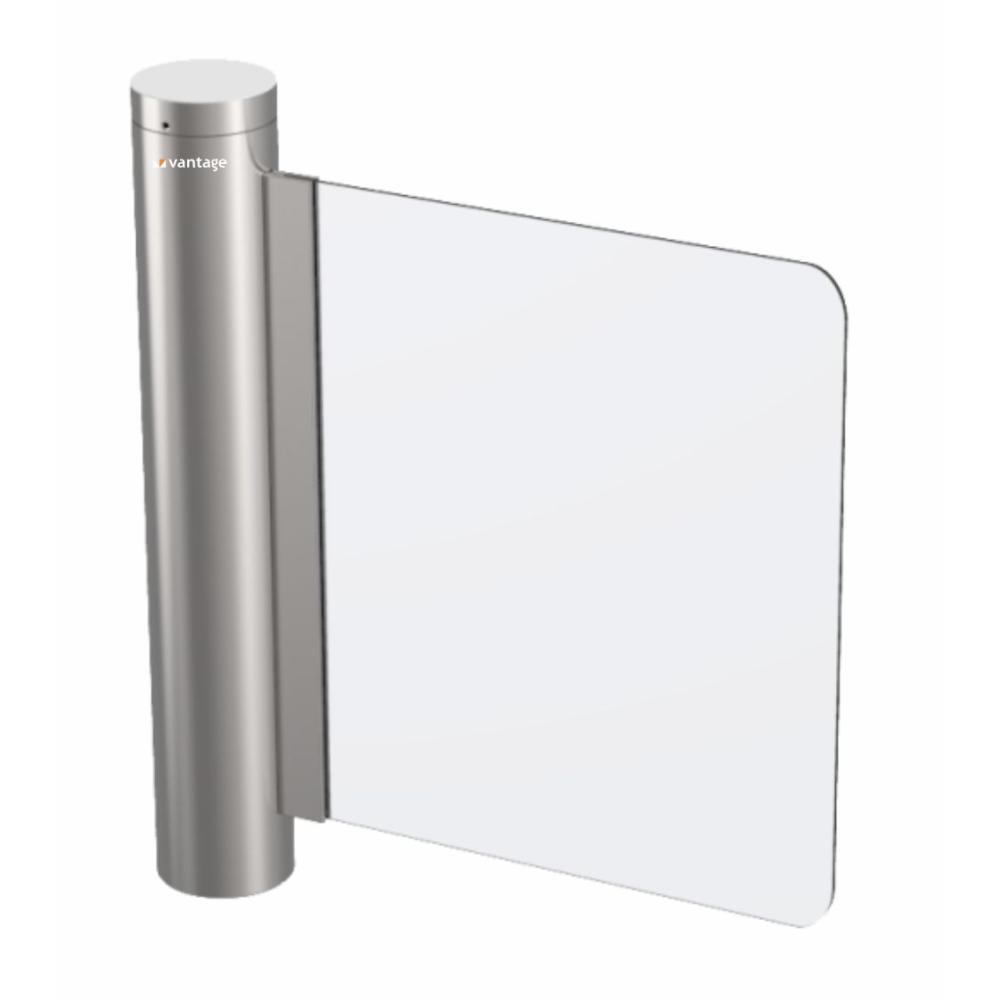

P Type Swing Gate with Servo Motor

P Type Swing Gate with Servo Motor
VP-PM4220-SGP1T3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'Wired Terminal' feature
  • Easy-to-operate swing gate barrier with acrylic panel
  • Selectable operating modes- single direction, bidirection, always free or always locked
  • IP44 Ingress Protection Rating
  • Automatic reset of barrier gate after each passage
  • LED indicators optional
  • Adjustable time out delay
  • Integration support with any RFID/Biometric Reader through NO input
  • High-quality construction: AISI 304-grade stainless steel (optional AISI 316)
  • Passage Width: 600–900 mm (customizable)
  • Throughput Rate: 35–50 persons per minute
  • Drive System: Brushless servo motor with 200W drive unit
  • Motor Voltage: 24V, 500W
  • Opening Mechanism: Servo-controlled swing gate movement
  • Power Supply: 100–240V AC, 50–60 Hz
  • Power Consumption: Maximum 50W
  • Communication Interface: RS485 and dry contact support
  • Protection Rating: IP44 ingress protection
  • Operating Temperature: -20°C to +70°C
