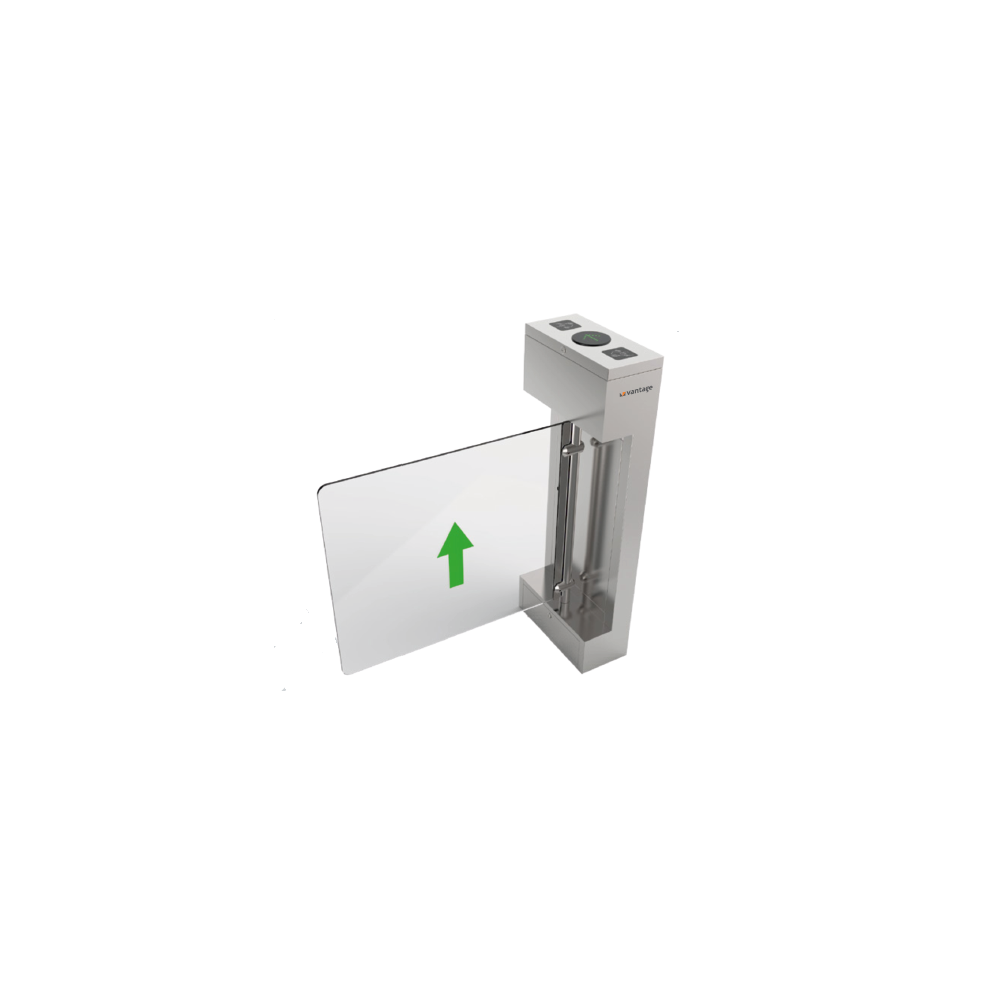

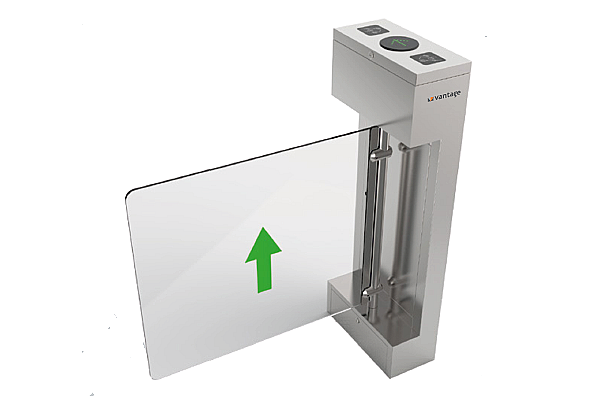

P Type Swing Gate Barrier

P Type Swing Gate Barrier
V-PM4010-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic swing gate
  • Single/dual core bi-direction operating modes supported
  • Half height operation with 800mm standard passage width
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe & fail lock function supported in case of emergency
  • Top quality AISI 304 grade SS construction
  • Passage width 800mm standard (900mm optional) with throughput rate of 35–40 persons per minute, opening and closing speed 0.5–0.8s and passing time 5s default (adjustable 0–60s)
  • Electro-mechanical DC motor drive with operating voltage DC 24V and power supply AC220~240V with maximum power consumption 50W
  • Communication via Relay Input (NO/NC/COMM) with optional RS232/RS485 interface and service life of >5 million operation cycles
  • AISI 304 grade stainless steel chassis with acrylic door material and IP44 ingress protection rating
  • Working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • Overall dimensions 440 × 200 × 1150mm, net weight 35kg single core, certified CE, FCC and RoHS
