Entrance Management Solutions

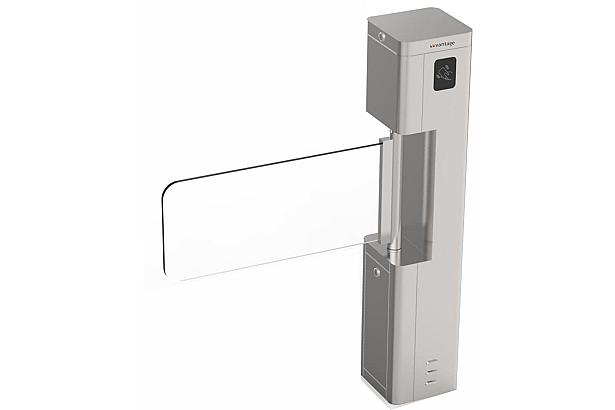

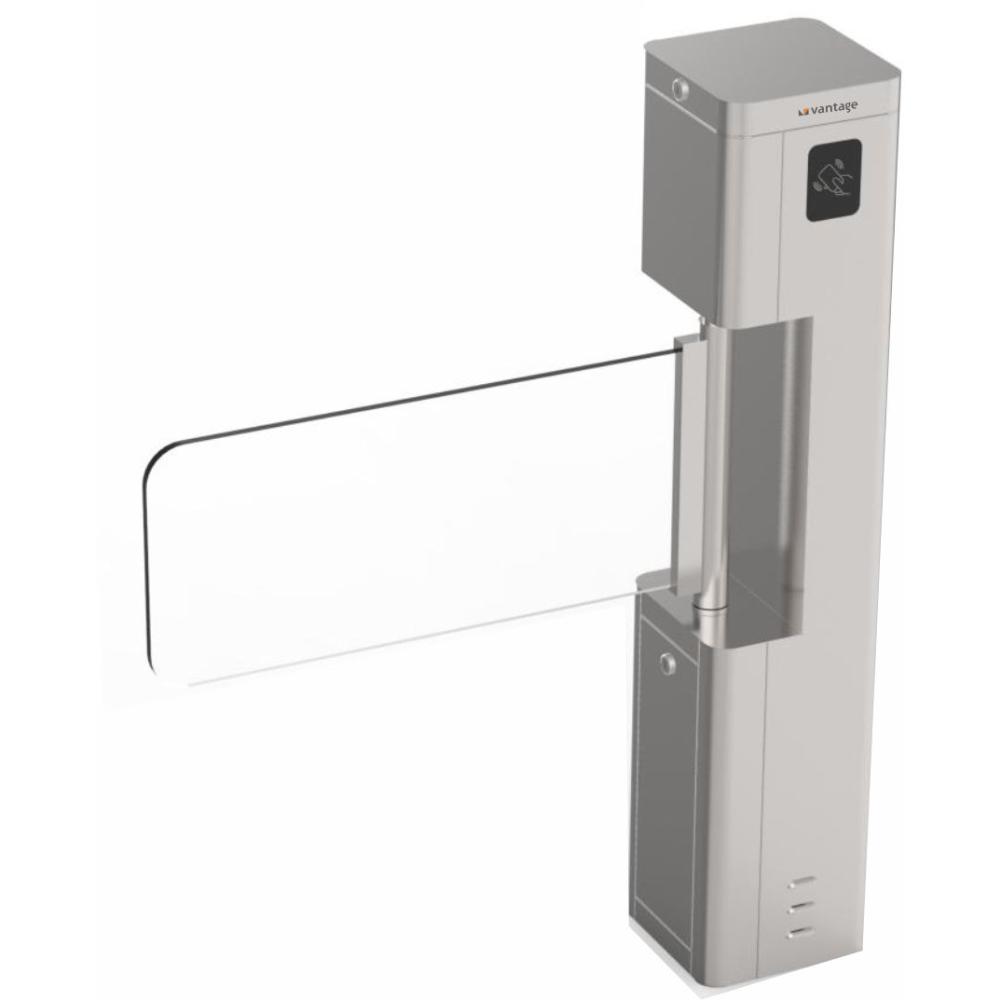

P Type Acrylic Swing Gate Barrier

P Type Acrylic Swing Gate Barrier
V-PM4000AF-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty electro mechanical swing gate
  • Selectable operating modes supported - single direction,bi-direction, always free or always locked
  • LED status indicator & adjustable time out delay
  • Half height operation with passage width of <600-900m
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Top quality AISI 304 grade SS construction with IP54 rating
  • Passage Width: 600mm (optional 900mm)
  • Throughput Rate: 35–40 persons per minute
  • Drive System: Electro-mechanical DC motor
  • Operation Mode: Unidirectional / Bidirectional
  • Communication Interface: NO / NC / COM / RS485
  • Power Supply: AC 100–240V
  • Operating Voltage: DC 24V (150W)
  • IP Rating: IP54 (dust & splash resistant)
  • Working Temperature: -20°C to +70°C
  • Durability: >5 million operation cycles
  • Material: AISI 304 stainless steel (optional 316 grade)
  • Certifications: CE, FCC, RoHS
