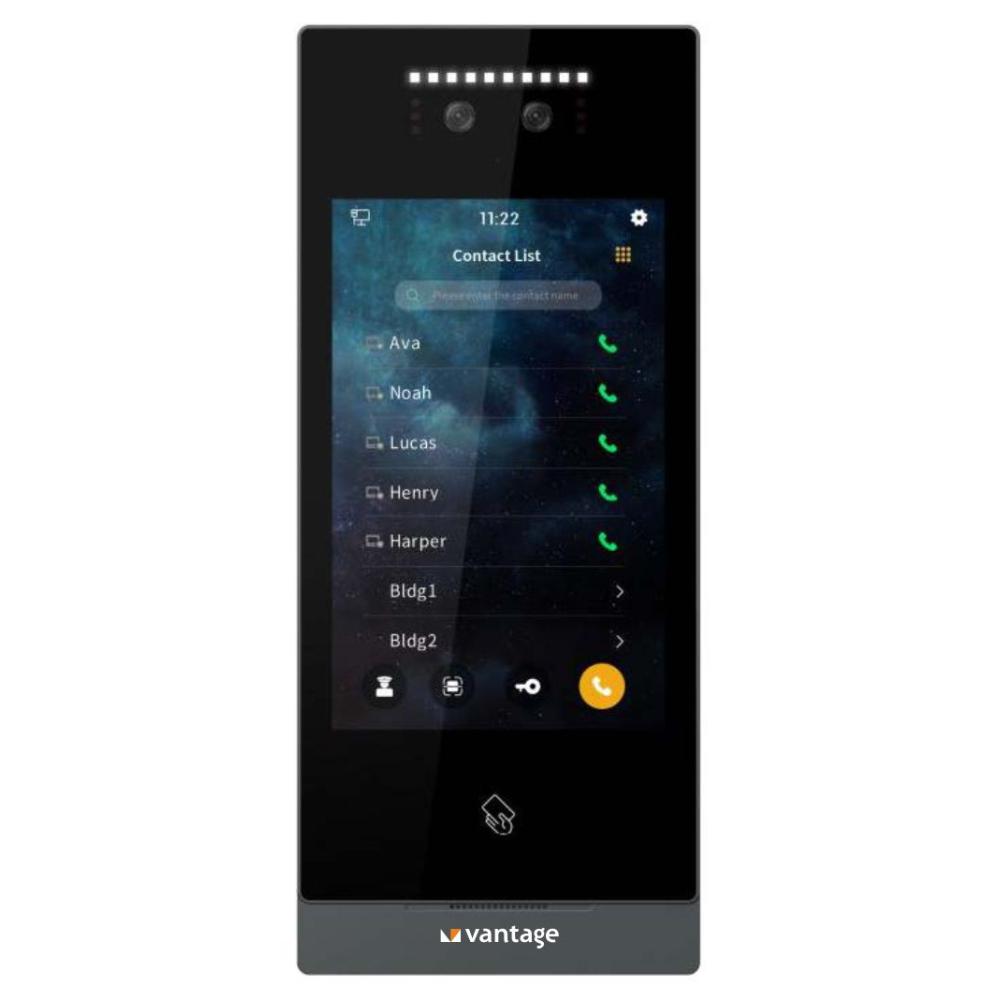

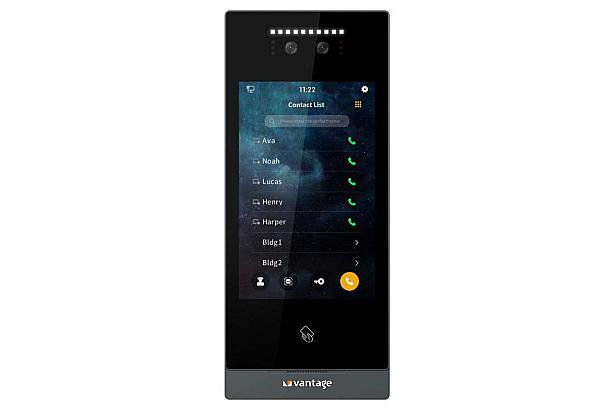

Audio/Video Door Phone System
Outdoor Station With Face Recognition
VP-CS109TS-SIPV2
- Advanced facial recognition technology with user-friendly system GUI
- 8-inch IPS LCD touch screen display and 2MP CMOS camera with infrared and white light support for clear visibility in any lighting conditions
- Multiple unlock modes, door status detection, timeout alarms, disconnection alarms, tamper alarms, and elevator linkage supported
- Auto wake-up via motion detection to improve usability and energy saving
- Strong integration and networking capabilities with SIP protocol support
- Dual power input 24V DC direct power and 48V PoE are supported
- Robust built quality for durability & reliable performance
- 2MP CMOS color camera
- 8 inch LCD screen with resolution 800 × 1280
- Minimum illumination ≤0.15 Lux @ F2.0
- Viewing angle H: 61° and V: 35°
- Face storage capacity 20000
- Focal distance 4.5mm
- Working voltage DC 18 to 30V
- Working current ≤400 mA and static current ≤150 mA
- Linux operating system with 512MB RAM and 4GB storage
- IP54 protection with operating temperature -20°C to +70°C
