Audio/Video Door Phone System

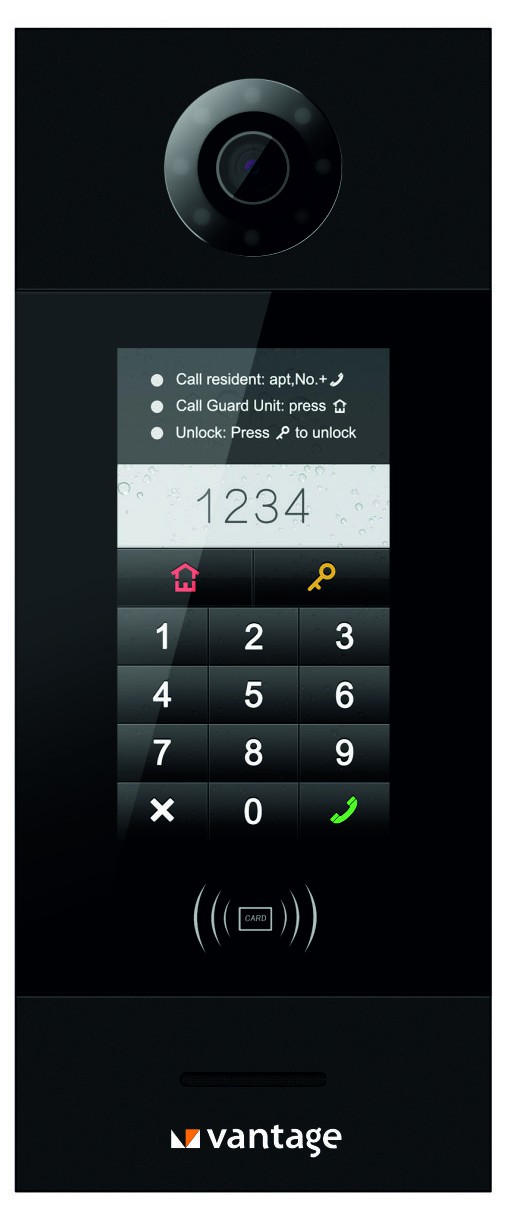

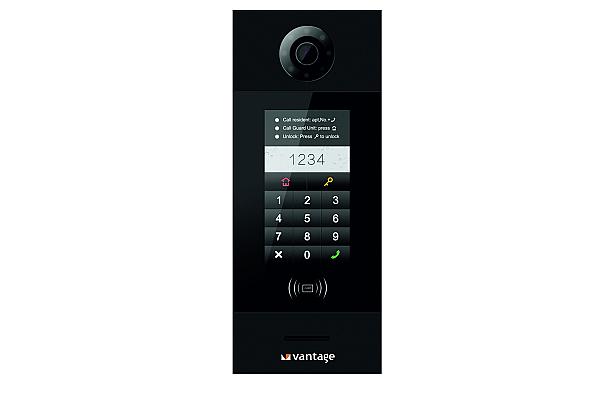

Outdoor Station With Face Recognition

Image of 'Face Detection' feature Image of 'High Resolution Camera' feature Image of 'IR LEDs' feature Image of 'Microphone' feature Image of 'Speaker' feature
  • 2 MP CMOS color camera
  • Display: 7inch LCD with advanced GUI
  • Working voltage: DC 24V
  • Door status detection
  • Support IC Card
  • Support face recognition unlock
  • Support normally-closed / normally-opened unlock
  • Inbuilt microphone and speaker set
  • 2MP CMOS color camera
  • 7 inch TFT screen with resolution 600 × 1024
  • Minimum illumination 0 lux
  • View angle 123° diagonal
  • Face storage capacity 10000
  • Focal distance 3.5mm
  • Working voltage DC 24V
  • Working current ≤300 mA and static current ≤200 mA
  • Android 6.0.1 operating system
  • IP54 protection with operating temperature -25°C to +70°C
