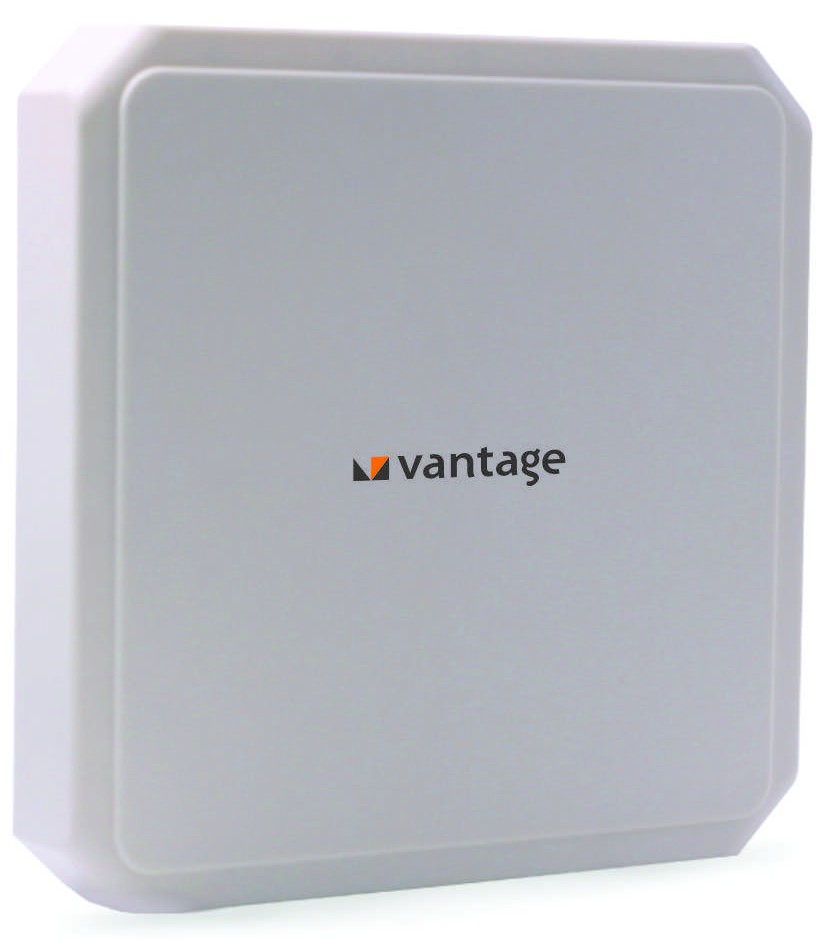

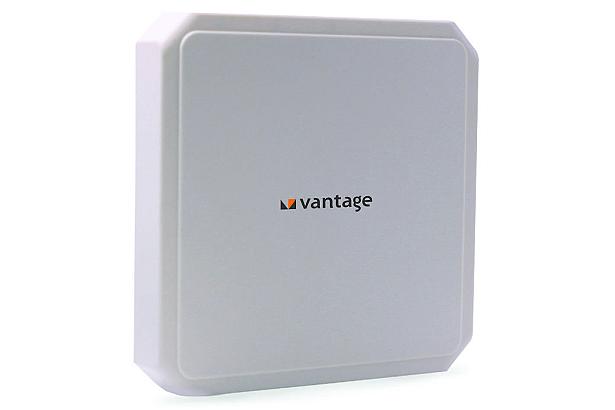

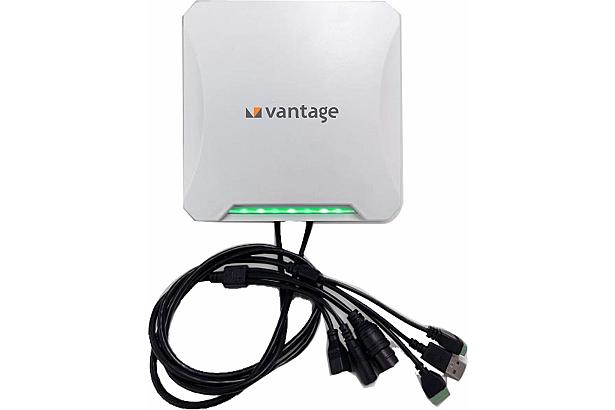

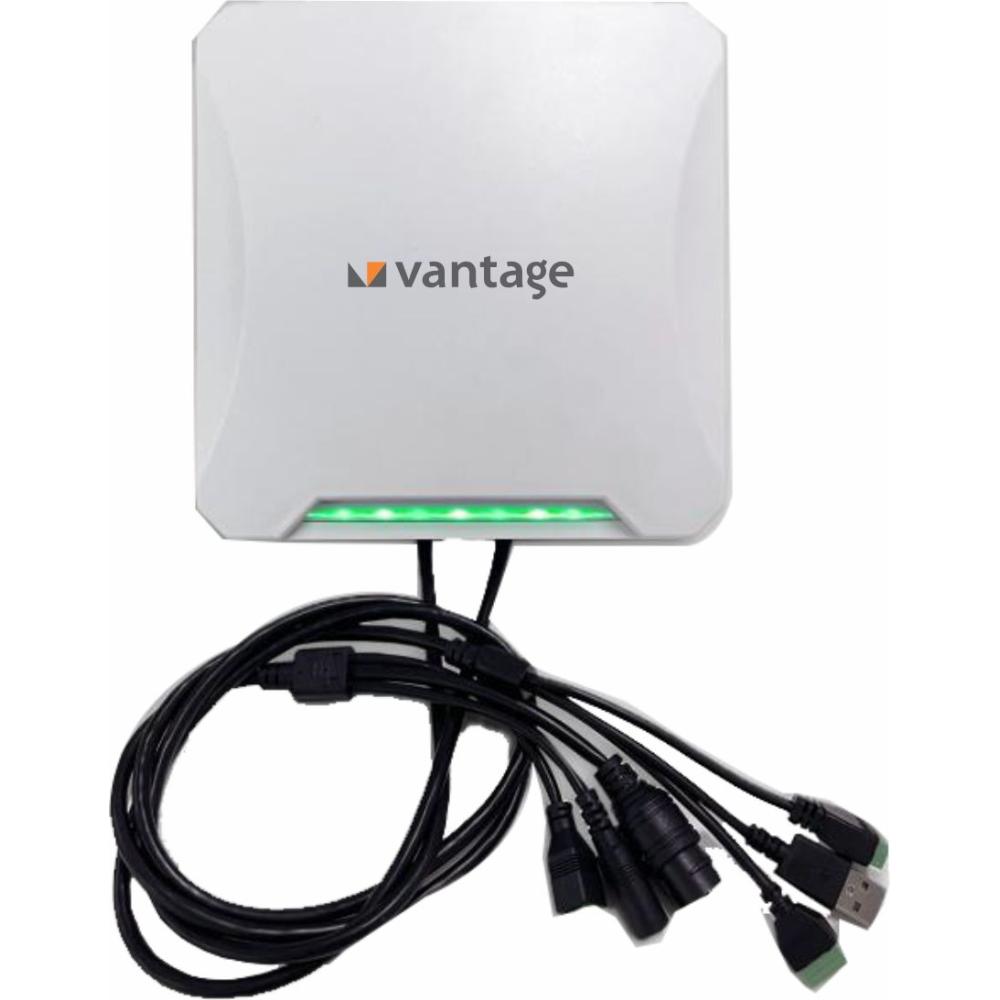

Long Range Integrated UHF Reader
VV-RF900U-LRG2
- Support ISO18000-6B and EPC Class1 GEN2 international standards
- Integrated high-performance linear polarized antennas
- Suitable for outdoor environment and long reading range
- Supports tag echo signal detection, tag data filtering, clock stamping, and input & output functions
- High speed recognition and identification of UHF card / tags
- Adopts dynamic frequency working mode, strong antiinterference ability and high recognition sensitivity
- Frequency range ISM 920~925MHz, ISM 902~928MHz and ISM 865~868MHz with RF power 0–33dBm software adjustable
- 9dBi linearly polarized built-in antenna with reading range 0–20m and group read performance >200 labels
- ARM7+UHF system with Wiegand 26/34, RS485 and USB communication (optional RJ45, Wi-Fi, GPRS)
- Power supply DC 9–12V with power consumption <12W
- Operating temperature -20°C to +70°C and storage temperature -40°C to +125°C with working humidity 20%~95% non-condensing
- Overall dimensions 260×260×70mm, net weight 1500g, certified CE, FCC and RoHS
