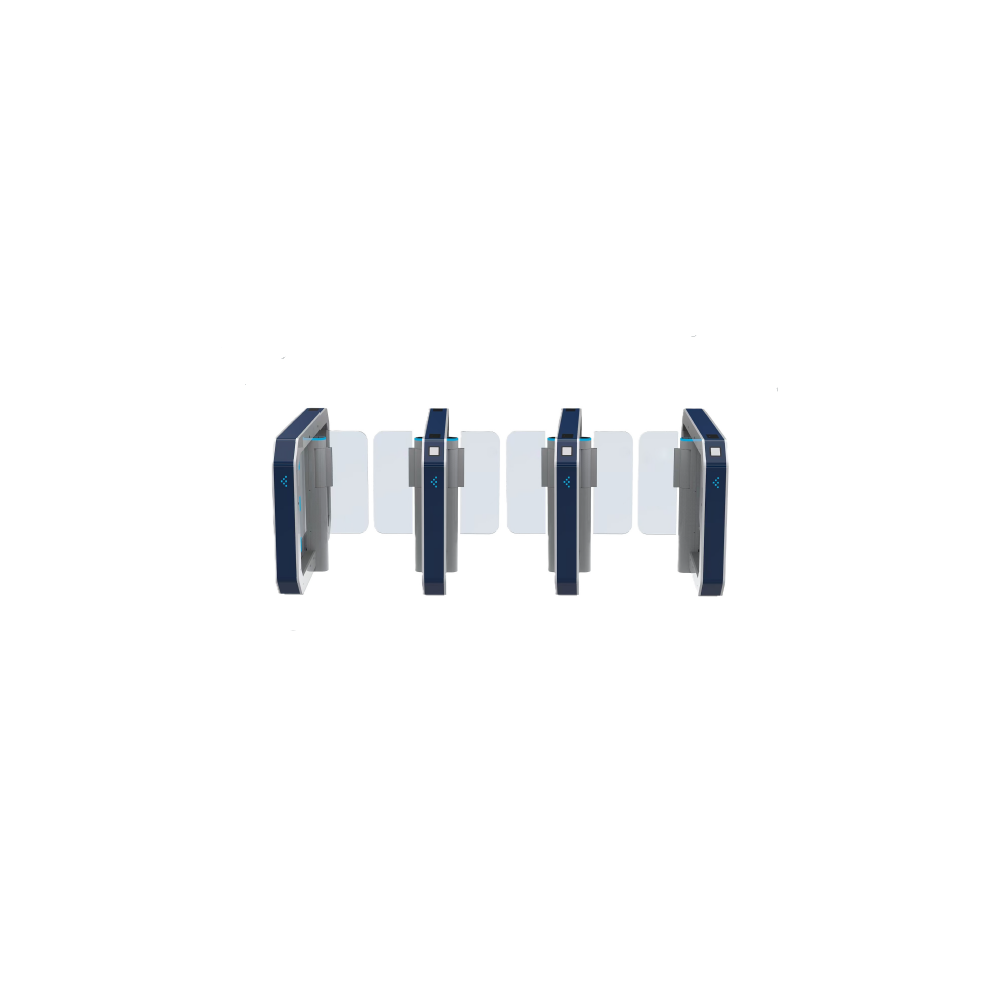

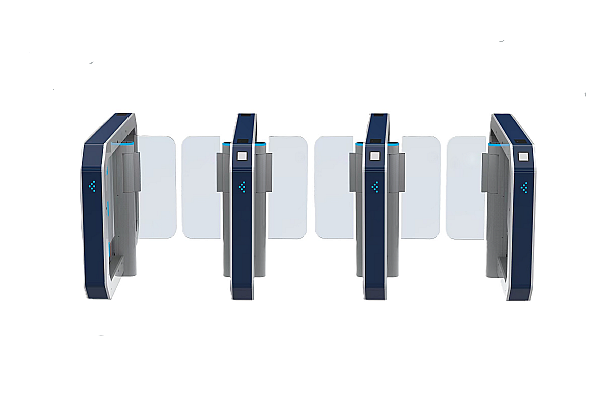

Heavy Duty Swing Gate Barrier Single/Dual Core

Heavy Duty Swing Gate Barrier Single/Dual Core
V-PM4720SC/DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic swing gate
  • Single/dual core machine with bi-directional operating modes supported
  • Half height operation with ≤600mm standard passage width
  • LED status indicator & adjustable time out delay
  • Automatic reset of swing barrier after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe function supported in case of emergency
  • Top quality AISI 304 grade SS construction with IP44 rating
  • Passage width 600mm standard (900mm optional) with throughput rate of 35–40 persons per minute, opening and closing speed 0.5–1.5s and passing time 5s default (adjustable 0–25s)
  • Electro-mechanical DC brushless motor drive with operating voltage DC 24V and power supply AC100~240V with power consumption 150W
  • 8 pairs of infrared sensors for pedestrian protection with RGB pilot lamp and service life of >10 million operation cycles
  • Communication via Relay Input (NO/NC/COMM) with optional RS232/RS485 interface and fire alarm integration for emergency free passage
  • SPCC steel main body coated with powder paint, acrylic side panel and acrylic door material with IP44 ingress protection rating
  • Working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • Overall dimensions 1500 × 150 × 980mm, net weight 75kg single core and 85kg double core, certified CE, FCC and RoHS
