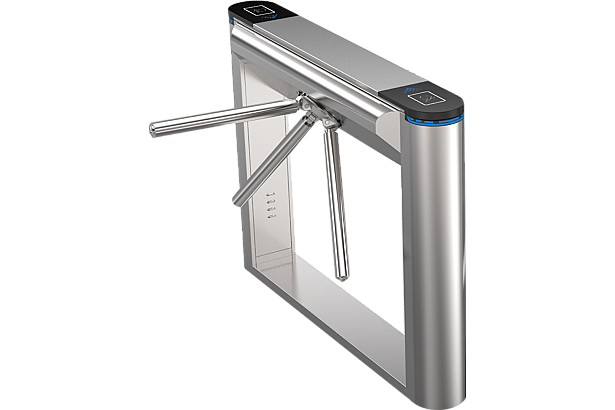

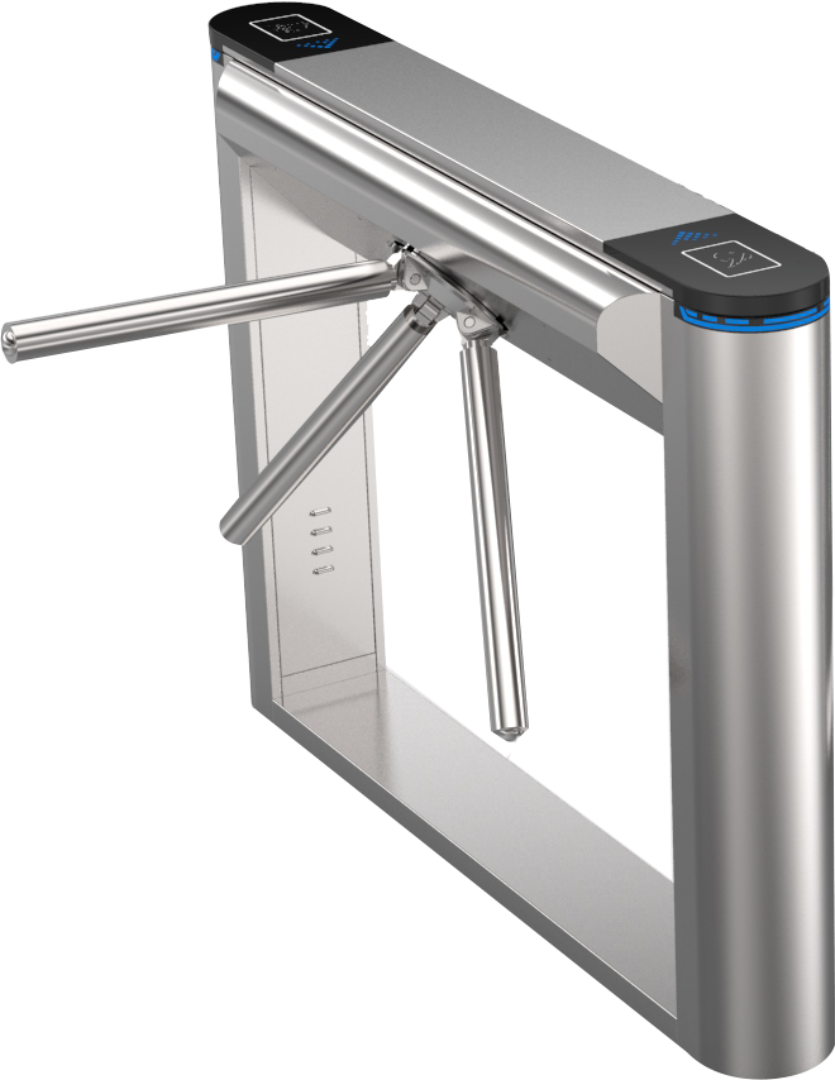

Half Height Tripod Turnstile Gate Barrier

Half Height Tripod Turnstile Gate Barrier
V-PM1700SC-TST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty semi-automatic turnstile
  • Single/dual core bi-direction operating modes supported
  • Half height operation with 550mm standard passage width
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe & fail lock function supported in case of emergency
  • Top quality AISI 304 grade SS construction

Construction & Materials

  • Material grade: AISI 304 grade stainless steel, chassis and arm material

Passage & Throughput

  • Passage width: standard 550 mm
  • Lane configuration: half height tripod, single/dual core
  • Throughput rate: 35 to 40 persons per minute
  • Passage direction: unidirectional or bidirectional
  • Duty cycle: 100% duty cycle operation, heavy duty semi-automatic turnstile

Rotor & Movement

  • Drive: electro-mechanical solenoid drive, automatic motorized optional
  • Movement: semi-automatic tripod turnstile mechanism with automatic arm reset after each passage
  • Passing time: 0 to 25 seconds default, customizable 0 to 60 seconds
  • Service life: more than 5 million operation cycles

Control & Integration

  • Communication interface: relay input (NO/NC/COMM), optional RS232/RS485
  • Reader integration: supports any RFID or biometric reader through NO input
  • Status indicator: LED status indicator
  • Direction indicators: LED direction indicators
  • Terminal type: wired terminal
  • Delay time: adjustable time out delay

Safety & Emergency Operation

  • Fire alarm integration: supported to provide free passage for evacuation
  • Drop arm option: horizontal arm drops to create passage for evacuation
  • Power or mechanism failure: fail safe or fail lock status for either one or both directions, free movement mode (standard) or locked in the home position
  • Protection level: IP44 ingress protection rating

Electrical & Environmental

  • Power supply voltage: AC100~240 V
  • Operating voltage: DC 24V
  • Power consumption: max 35 W
  • Working temperature: -25°C to +70°C
  • Relative humidity: ≤90%, no condensation
  • IP rating: IP44

Dimensions & Weight

  • Dimensions excluding bars: 1200 x 240 x 1020 mm
  • Net weight including bars: 40 kg, single core

Compliance & Certifications

  • CE, FCC and RoHS
