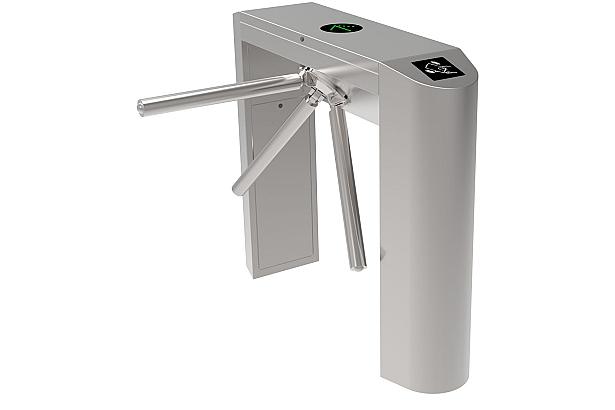

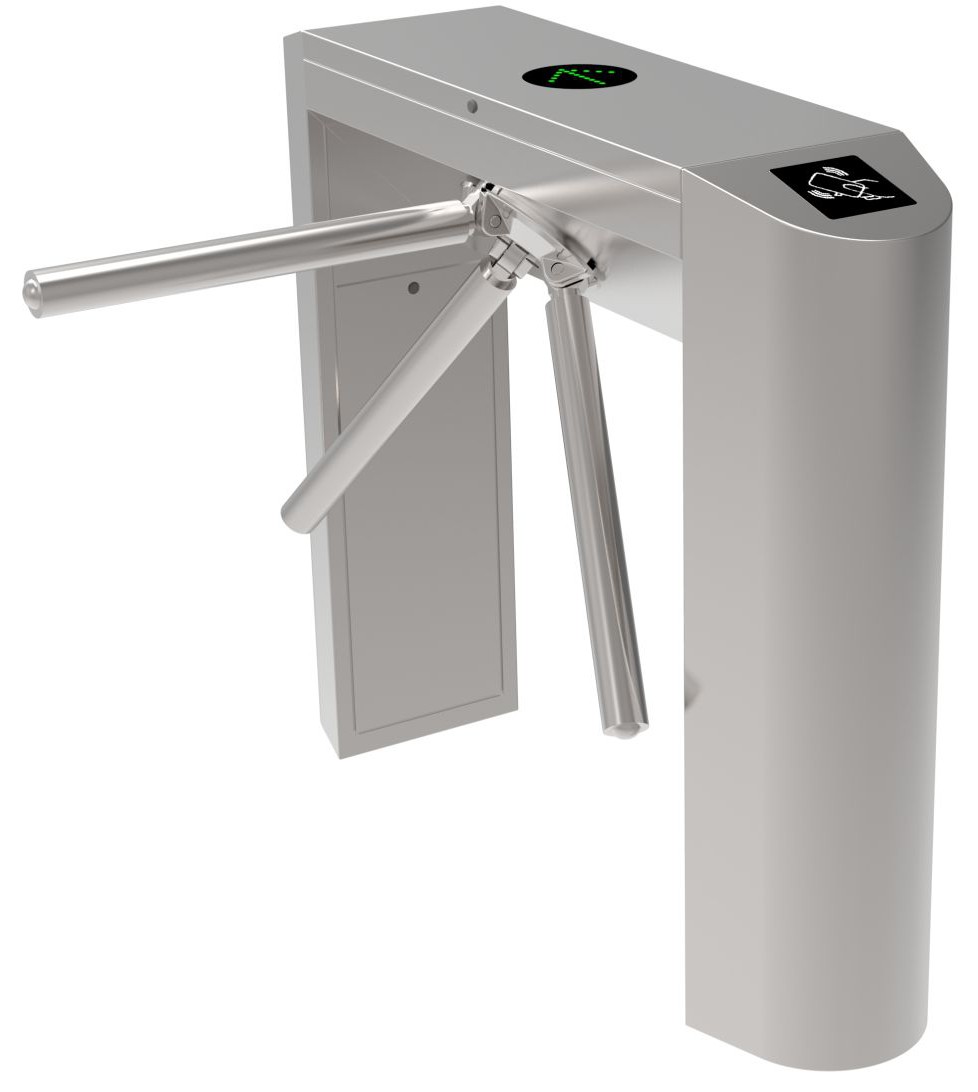

Half Height Tripod Turnstile Gate Barrier

Half Height Tripod Turnstile Gate Barrier
V-PM1200-TST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty semi-automatic turnstile barrier
  • Single core and bi-directional operations supported
  • Half height operation with passage width of <550mm
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe & fail lock function supported in case of emergency
  • Top quality AISI 304 grade SS construction with IP54 rating
  • Passage width 550mm with throughput rate of 30–35 persons per minute and unidirectional/bidirectional passage direction
  • Electro-mechanical DC motor drive with operating voltage DC 24V and power supply AC100~240V with power consumption 30W
  • IP54 ingress protection rating (IP56 optional) with service life of >5 million operation cycles
  • Dry contact relay input (NO/NC/COMM) communication with optional RS232/RS485 interface
  • Drop arm option with horizontal arm drops to create passage for evacuation and fire alarm integration supported
  • AISI 304 grade stainless steel chassis (optional 316 grade)
  • Working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • Overall dimensions 1200 × 280 × 980mm (excluding bars), net weight 45kg, certified CE, FCC and RoHS
