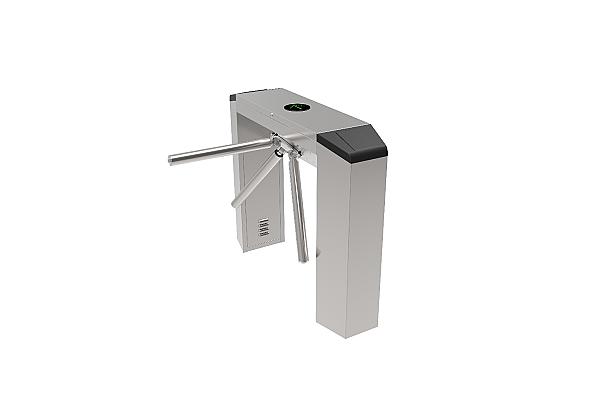

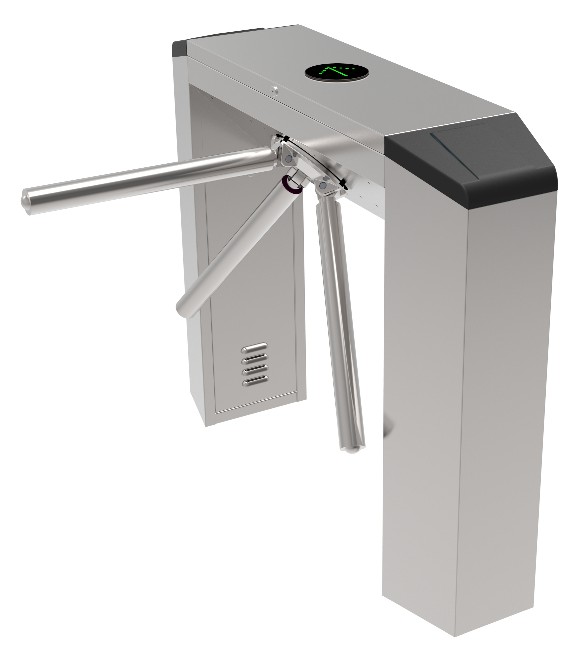

Half Height Tripod Turnstile Gate Barrier

Half Height Tripod Turnstile Gate Barrier
V-PM1100-TST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Selectable operating modes- single direction, bi-direction, always free or always locked
  • Heavy-duty design for 24 hours continue application
  • LED Direction indicators at each side
  • IP54 Ingress Protection rating
  • Automatic reset of barrier gate after each passage
  • Adjustable time out delay
  • Integration support with any RFID/Biometric Reader through NO input
  • Top quality AISI 304 grade SS construction

Construction & Materials

  • Material grade: AISI 304 grade stainless steel

Passage & Throughput

  • Passage width: 550 mm
  • Lane configuration: half height tripod, single lane
  • Throughput rate: up to 15 persons per minute
  • Passage direction: selectable operating modes, single direction, bidirectional, always free or always locked
  • Duty cycle: 100% duty cycle operation, heavy duty design for 24 hours continuous application

Rotor & Movement

  • Drive: electro-magnetic drive, DC
  • Movement: automatic reset of barrier gate after each passage
  • Service life: not specified in the datasheet

Control & Integration

  • Communication interface: not specified in the datasheet
  • Reader integration: supports any RFID or biometric reader through NO input
  • Status indicator: LED direction indicators at each side
  • Direction indicators: LED direction indicators
  • Terminal type: wired terminal
  • Delay time: adjustable time out delay

Safety & Emergency Operation

  • Fire alarm integration: not specified in the datasheet
  • Drop arm option: not specified in the datasheet
  • Power or mechanism failure: not specified in the datasheet
  • Protection level: IP54 ingress protection rating

Electrical & Environmental

  • Power supply voltage: 220 to 240V AC
  • Operating voltage: 24V DC
  • Power consumption: 30 W maximum
  • Frequency: 50 to 60 Hz
  • Working temperature: -25°C to +70°C
  • Relative humidity: not specified in the datasheet
  • IP rating: IP54

Dimensions & Weight
Dimensions excluding bars: 1200 x 280 x 960 mm
Net weight including bars: 50 kg

Compliance & Certifications

  • CE, FCC and RoHS
