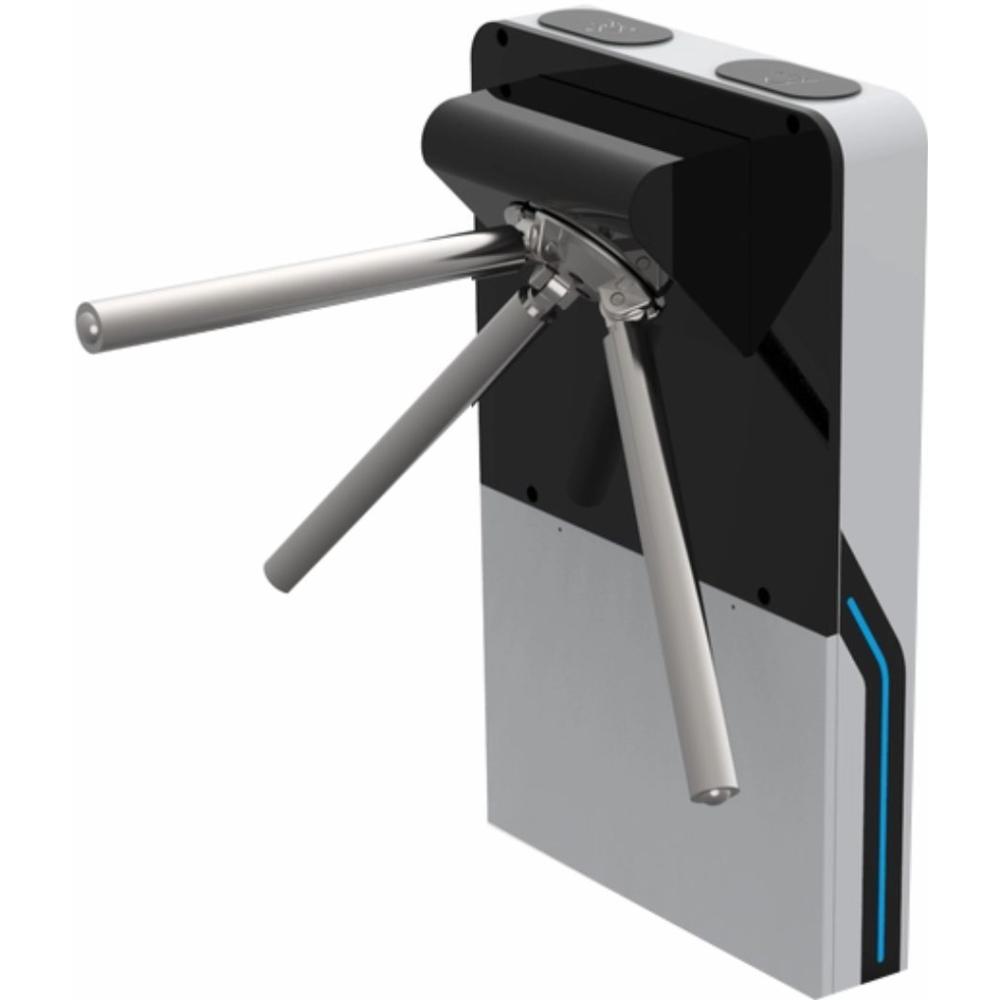

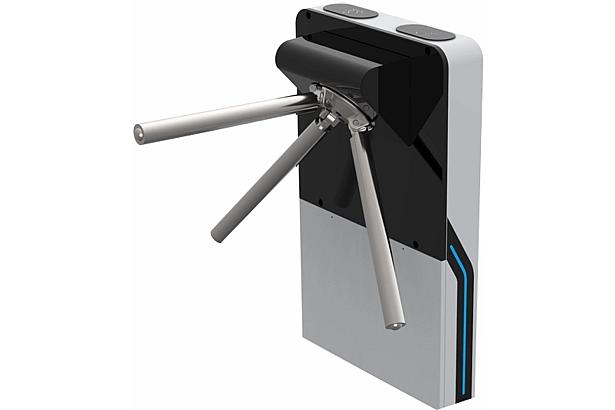

Half Height Motorized Turnstile Barrier Gate

Half Height Motorized Turnstile Barrier Gate
V-PM1800M-TST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty automatic motorized turnstile barrier
  • Single core and bi-directional operations supported
  • Half height operation with passage width of <550mm
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe function supported in case of emergency

Construction & Materials

  •  Chassis material: Cold rolled steel


 Passage & Throughput

  •  Passage width: Standard 550mm
  •  Lane configuration: half height, automatic motorized tripod barrier
  •  Throughput rate: 35 to 40 persons per minute
  •  Directional operation: single core and bi-directional operations supported; passage direction unidirectional/bidirectional
  •  Duty cycle: 100% duty cycle; heavy-duty automatic motorized turnstile barrier


 Rotor & Movement

  •  Drive unit: electro-mechanical motorized drive
  •  Movement: automatic reset of barrier gate after each passage
  •  Drop arm option: horizontal arm drops to create passage for evacuation
  •  Service life: 10 million operation cycles
  •  Motor power: 50W (DC brushed)


 Control & Integration

  •  Input signal: dry contact/RS485
  •  Reader integration: integration support with any RFID/biometric reader through NO input
  •  Status indicator: RGB indicator light
  •  Direction indicators: LED direction indicators
  •  Terminal type: wired terminal
  •  Delay time: adjustable time out delay


 Safety & Emergency Operation

  •  Fire alarm integration: supported
  •  Fail-safe: fail safe status for either one or both directions free movement mode (standard) or locks in home position
  •  Protection level: IP44


 Electrical & Environmental

  •  Supply: AC100 to 240V
  •  Operating voltage: DC 24V
  •  Power consumption: 50W
  •  Operating temperature: -20°C to +70°C
  •  Humidity: ≤90% no condensation
  •  Protection level: IP44


 Dimensions & Weight

  •  Overall dimensions (excluding bars): 600 x 130 x 980 mm
  •  Net weight (including bars): 40 kg


 Compliance & Certifications

  •  CE, FCC, RoHS
