Audio/Video Door Phone System

Guard Management Unit

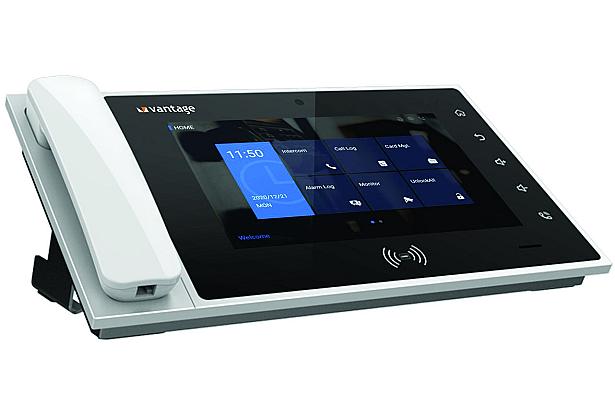

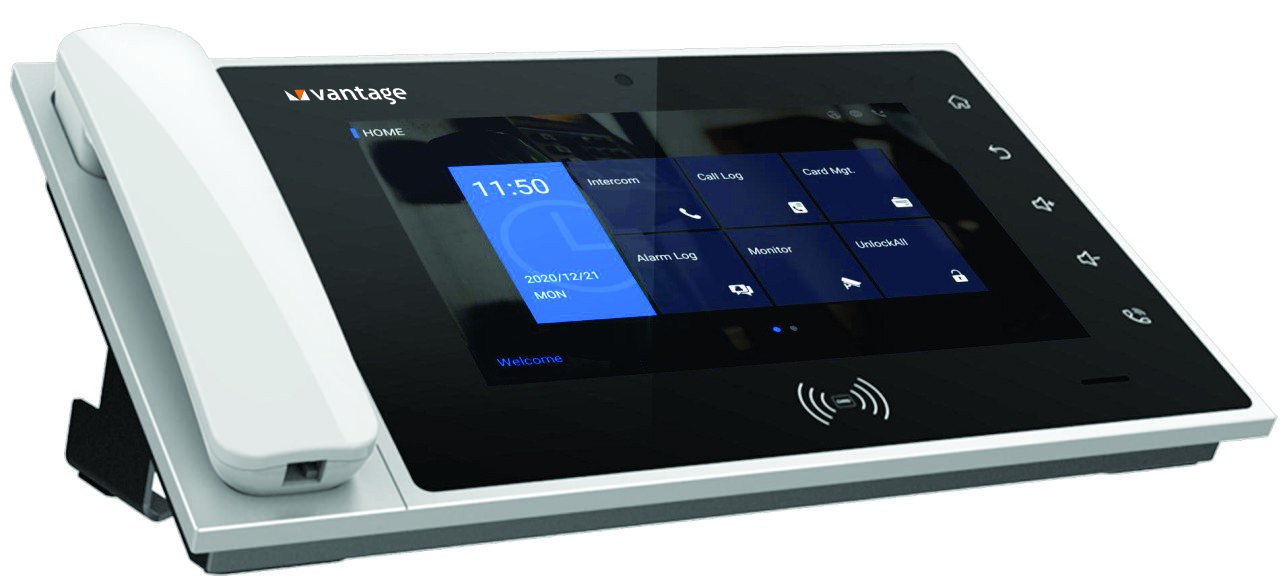

Guard Management Unit
VP-CS72GS-IPV2
Image of 'Camera Interface' feature Image of 'ID Card' feature Image of 'LCD Display' feature Image of 'TCP/IP' feature Image of 'Two Way Audio' feature
  • Protocol: Standard TCP/IP
  • 10.1 inch capacitive touch screen with advanced GUI
  • Card management function for ID card registration
  • Supports SOS master reset for opening all apartment doors incase of emergency
  • Alarm management function
  • Supports IP CCTV cameras
  • Supports Intercom function
  • Communication with Management software for master programming
  • 10.1" TFT LCD capacitive touch screen with 1280×800 display resolution and advanced GUI for easy guard management operation
  • 2MP CMOS built-in camera for clear video door phone monitoring and visitor identification at entry points
  • DC 24V power supply with static current ≤100mA and working current ≤300mA for low-power continuous operation
  • Ring duration 30 seconds, call duration 120 seconds, and monitor duration 30 seconds for controlled intercom communication
  • Standard TCP/IP network protocol for seamless integration with IP-based access control and management software
  • Operating temperature -10°C to +55°C with operating humidity range of 20% to 93% for reliable indoor guard station use
  • Compact dimensions of 210×356×31.8mm (W×H×D) for space-efficient desk or counter installation
  • Certified CE, FCC, and RoHS compliant for internationally recognised quality and safety standards
