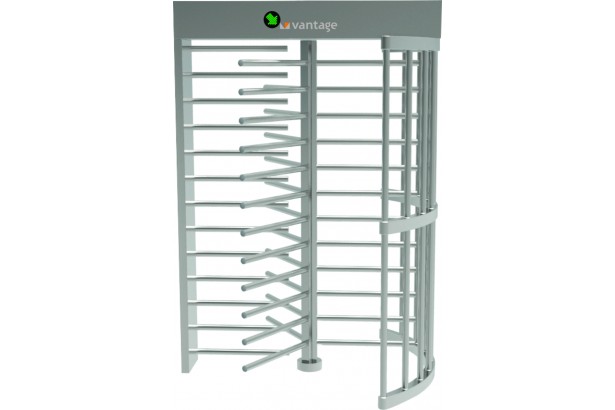

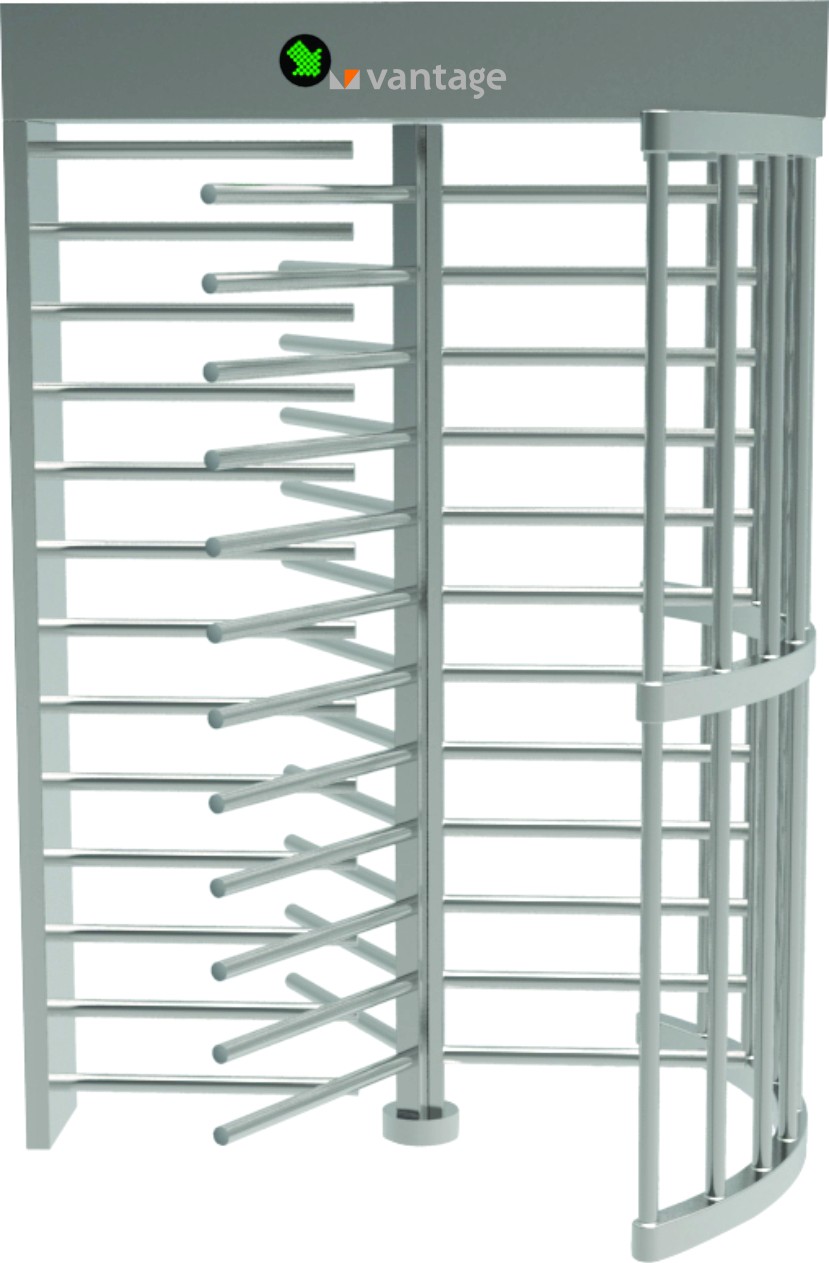

Full Height Single lane Turnstile Gate Barrier

Full Height Single lane Turnstile Gate Barrier
V-PM2100-FTST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Selectable operating modes- single direction, bi-direction, always free or always locked
  • Heavy-duty design for 24 hours continue application
  • LED Direction indicators at each side
  • IP54  Ingress Protection rating
  • Automatic reset of barrier gate after each passage
  • Adjustable time out delay.
  • Integration support with any RFID/Biometric Reader through NO input
  • Top quality AISI 304 grade SS construction
  • Passage width 550mm with throughput rate up to 15 persons per minute
  • Electro-magnetic DC drive with operational voltage 24V DC and power supply AC220~240V 50~60Hz
  • Maximum power consumption 35W with IP54 ingress protection rating (IP56 optional)
  • Working temperature -25°C to +70°C
  • Overall dimensions 1400 × 1200 × 2250mm (excluding bars), net weight 150kg, certified CE, FCC and RoHS
