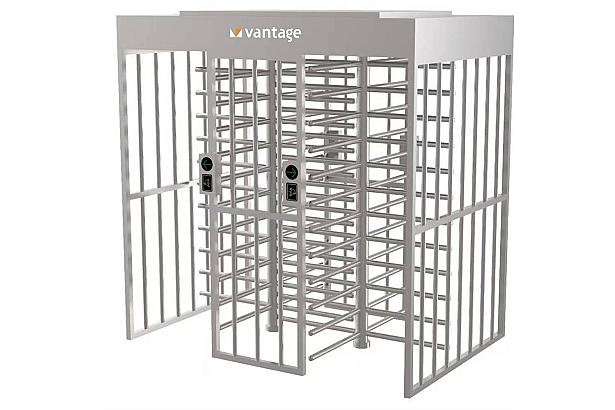

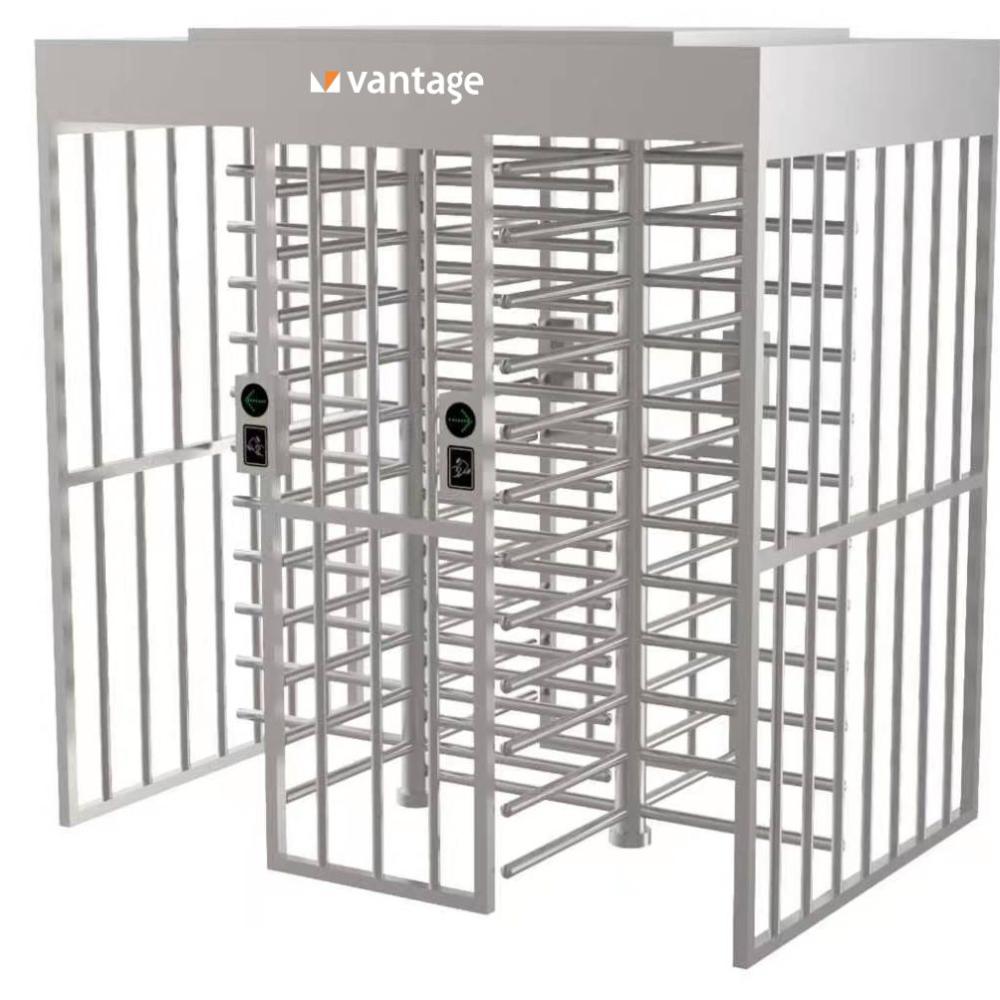

Full Height Dual Lane Turnstile Gate Barrier

Full Height Dual Lane Turnstile Gate Barrier
V-PM2900DL-FTST3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Designed for 100% duty cycle operation
  • Dual lane barrier with covered roof passage
  • SS304 stainless steel construction (SS316 optional upgrade)
  • 4x90 locking positions
  • Dual and bi-directional operation supported
  • Fail safe & fail lock function supported in case of emergency
  • Heavy gauge materials meeting ASTM standard
  • Integration support with any RFID/biometric reader through NO input
  • IP54 Ingress Protection rating

Construction & Materials

  • Material grade: SS304 stainless steel, SS316L optional upgrade

Passage & Throughput

  • Passage width: 600 mm per lane
  • Lane configuration: dual lane, full height, covered roof passage
  • Throughput rate: 20 to 30 persons per minute per lane
  • Directional operation: dual and bi-directional operation supported
  • Duty cycle: 100% duty cycle operation

Rotor & Movement

  • Rotor type: 10 rotating arms, 4x90° locking positions
  • Movement assembly: full-height turnstile integrated movement assembly
  • Drive unit: anti burn solenoid
  • Material standard: heavy gauge materials meeting ASTM standard

Control & Integration

  • Input signal: dry contact, RS485
  • Reader integration: supports any RFID or biometric reader through NO input
  • Status indicator: red and green status LED lights
  • Direction indicators: LED direction indicators
  • Terminal type: wired terminal
  • Delay time: configurable passage delay time

Safety & Emergency Operation

  • Fire alarm integration: supported to provide free passage for evacuation
  • Fail-safe & fail-lock: selectable operation during power failure
  • Key override: available as an optional feature
  • Protection level: IP54 ingress protection rating

Electrical & Environmental

  • Supply: 100V~240V AC, 50/60 Hz
  • Power consumption: 50 W
  • Operating temperature: -20°C to +70°C
  • Humidity: up to 95%
  • Protection level: IP54

Dimensions & Weight

  • Overall dimensions: 2200 (L) x 1350 (W) x 2200 (H) mm
  • Gross weight: approx. 380 kg (including packaging)

Compliance & Certifications

  • CE, FCC and RoHS
