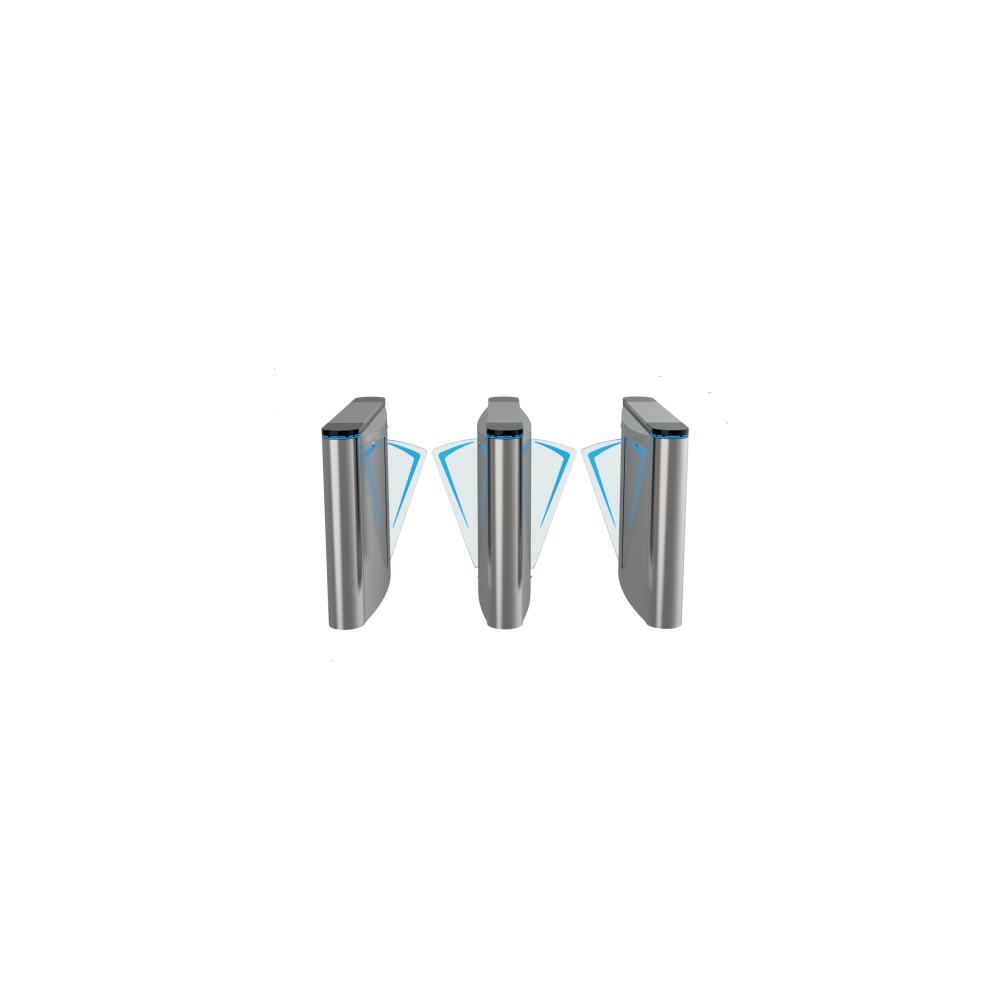

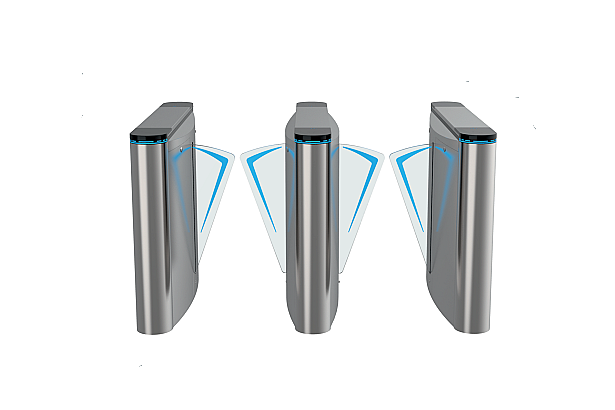

Flap Barrier Gate Single/Dual Core

Flap Barrier Gate Single/Dual Core
V-PM3420SC/DC-FBT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic flap barrier
  • Single/dual core bi-direction operating modes supported
  • Half height operation with 550mm standard passage width
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Built-in safety sensors for anti-clip, anti-tailing & anti-reverse functions
  • Fail safe & fail lock function supported in case of emergency
  • Top quality AISI 304 grade SS construction
  •
  • Standard 550mm passage width with throughput rate 35–40 persons per minute and passing time 5 seconds default (adjustable 0–60 seconds)
  • Opening and closing speed 0.2–0.8 seconds with unidirectional and bidirectional passage direction support
  • Electro-mechanical DC motor drive with DC brush motor and service life over 5 million operation cycles
  • 5 pairs of infrared safety sensors with relay input (NO/NC/COMM) and optional RS232/RS485 communication interface
  • Operating voltage DC 24V with power supply AC100–240V and maximum power consumption 35W
  • IP44 protection level with working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • AISI 304 grade stainless steel chassis with acrylic door material
  • Dimensions 1400×300×1020mm with net weight 65kg single core and 75kg double core
  • Certified CE, FCC and RoHS compliant
