Entrance Management Solutions

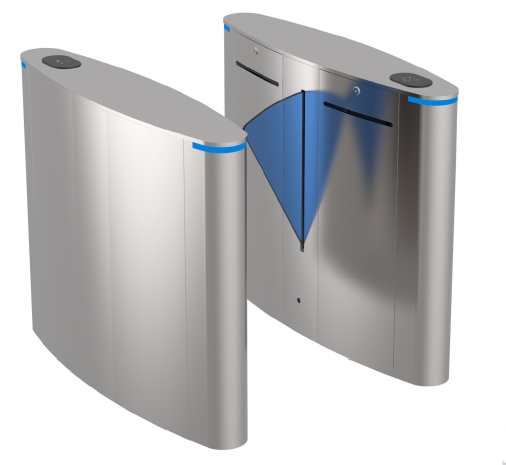

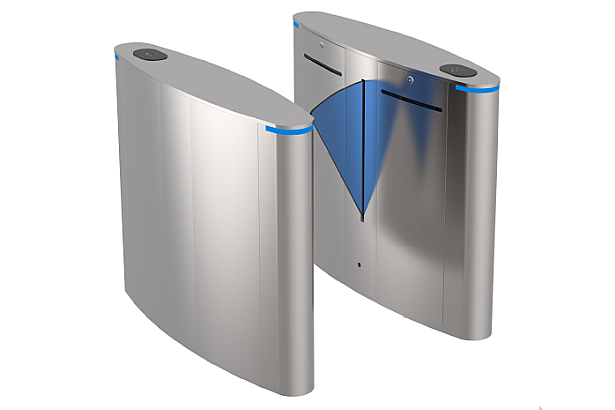

Flap Barrier Gate Single Core

Flap Barrier Gate Single Core
V-PM3700SC-FBT3
Image of '100% Duty Cycle' feature Image of '30p/m Pass Speed' feature Image of 'Delay Time' feature Image of 'IP45' feature Image of 'Wired Terminal' feature
  • Heavy duty stainless steel Flap Barrier
  • Single machine cores with Bi-directional operation supported
  • Integration support with any access control readers- Face & Fingerprint/ QR Code/RFID/NFC
  • LED indicators at each side
  • Half height operation with passage width of ≤ 550mm
  • Throughput rate of 30 persons/minute
  • High Security with built-in anti-tailing & anti-collision sensors
  • PC flaps with integrated mold machine core
  • Top quality AISI 304 grade SS construction with IP45 rating
  • Passage width 550mm with throughput rate of 35–40 persons per minute and operating time 0.2 seconds
  • Electro-magnetic DC drive with working voltage 24V and power supply AC100~240V 50~60Hz with maximum power consumption 150W
  • 3 pairs of sensors with RS485 and dry contact communication interface
  • IP45 ingress protection rating with 100% duty cycle
  • Working temperature -10°C to +70°C
  • Overall dimensions 1200 × 280 × 980mm, net weight 75kg, certified CE, FCC and RoHS
