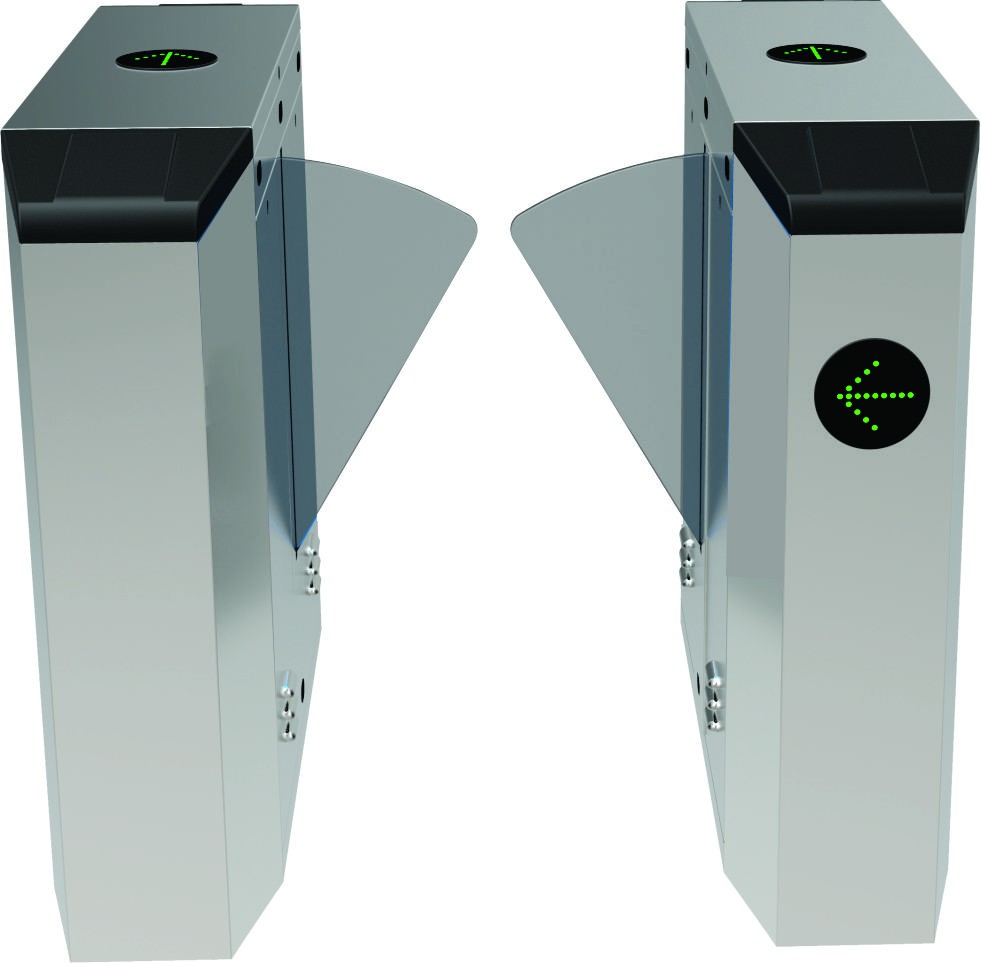

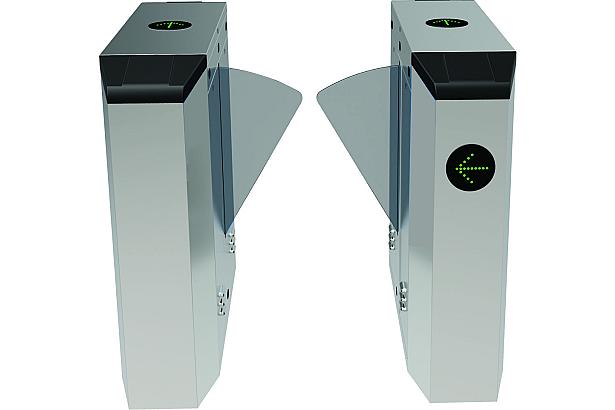

Flap Barrier Gate - Single Lane

Flap Barrier Gate - Single Lane
V-PM3100SC-FBT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP54' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy duty AISI 304 grade stainless steel flap barrier construction
  • LED direction indicators on each side for clear pedestrian guidance
  • Selectable operating modes: single direction, bi-directional, always free or always locked
  • IP54 ingress protection rating - suitable for indoor and covered outdoor installations
  • Automatic reset of barrier wings after each authorised passage
  • Adjustable time-out delay to reduce unauthorised tailgating risk
  • Integration with any RFID card reader or biometric terminal via NO (Normally Open) input
  • 100% duty cycle - rated for continuous 24/7 high-traffic operation
  • Throughput rate: 35 persons per minute | Passage width: 550mm
  • Certified CE, FCC, ROHS and ISO
  • Passage Width: 550mm
  • Throughput Rate: 35 persons/minute
  • Dimensions: 1200mm (L) x 280mm (W) x 960mm (H)
  • Net Weight: 45kg
  • Power Supply: 100–240V AC, 50–60Hz
  • Motor Voltage: 24V DC
  • Drive Type: Electro-magnetic DC
  • Max Power Consumption: 35W
  • Protection Level: IP54/IP56 Ingress Protection
  • Working Temperature: -25°C to +70°C
  • Access Control Interface: NO (Normally Open) dry contact input
  • Reader Compatibility: Any RFID or Biometric reader via NO input
  • Certifications: CE, FCC, RoHS, ISO
