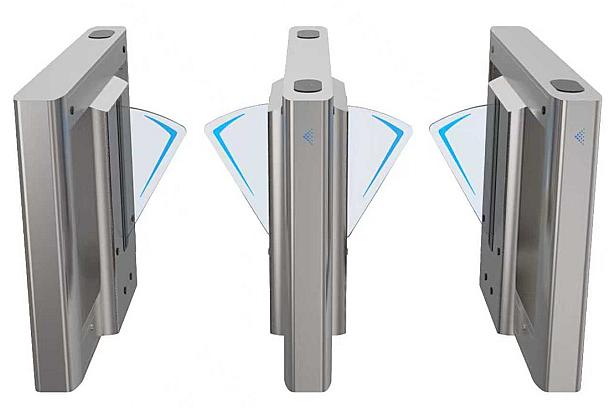

Flap Barrier Gate Single/Dual Core
V-PM3440SC/DC-FBT3
- Heavy-duty motorized-automatic flap barrier
- Single/dual core bi-direction operating modes supported
- Half height operation with 550mm standard passage width
- LED status indicator & adjustable time out delay
- Automatic reset of barrier gate after each passage
- Integration support with any RFID/Biometric Reader through NO input
- Built-in safety sensors for anti-clip, anti-tailing & anti-reverse functions
- Fail safe & fail lock function supported in case of emergency
- Top quality AISI 304 grade SS construction
- Low noise operation, smooth performance and long service life
Mechanism and throughput
- Half-height flap barrier, standard 550 mm passage width, optional 900 mm telescopic transparent flap
- Throughput 35 to 50 persons per minute
- Opening and closing speed 0.5 to 1.5 s, passing time 5 s default, adjustable 0 to 60 s
- Brushless DC drive, 40 W, with brushless movement
- Unidirectional or bidirectional passage
- Service life over 10 million operation cycles
Access control and safety
- 6 pairs of infrared sensors for anti-clip, anti-tailing and anti-reverse protection
- Communication: relay input (NO/NC/COMM), optional RS485
- Integrates with any RFID or biometric reader via NO input
- LED status indicators with adjustable time-out delay
- Fail-safe or fail-lock, selectable per direction (free movement standard, or locks in home position)
- Fire alarm integration for free passage during evacuation
Power and environmental
- Power supply AC 100 to 240 V, operating voltage 24 V DC, maximum power consumption 50 W
- IP54 ingress protection
- Working temperature -20°C to +70°C, relative humidity ≤90% non-condensing
Construction and certifications
- AISI 304 grade stainless steel chassis (optional 316L grade)
- Acrylic flap
- Dimensions 1400 x 300 x 980 mm, net weight 40 kg single core / 50 kg double core
- Certifications: CE, FCC, RoHS
