Entrance Management Solutions

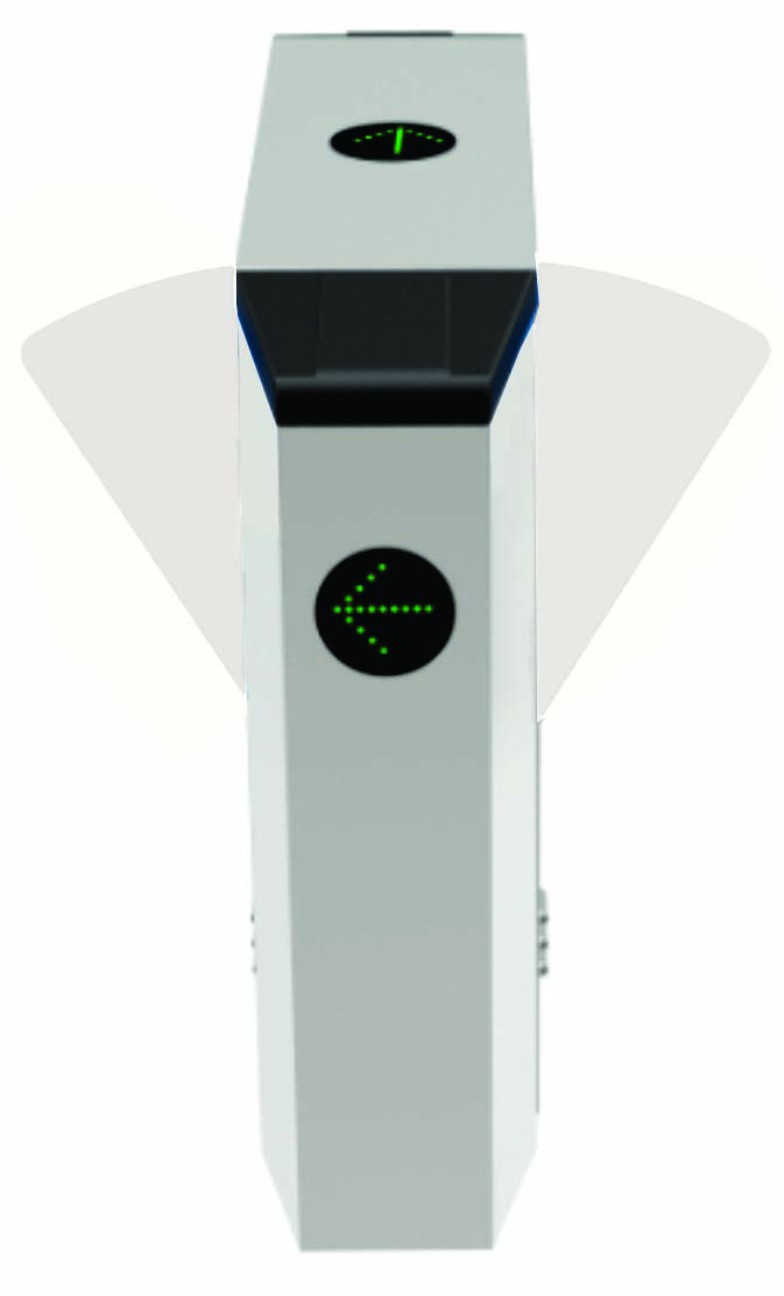

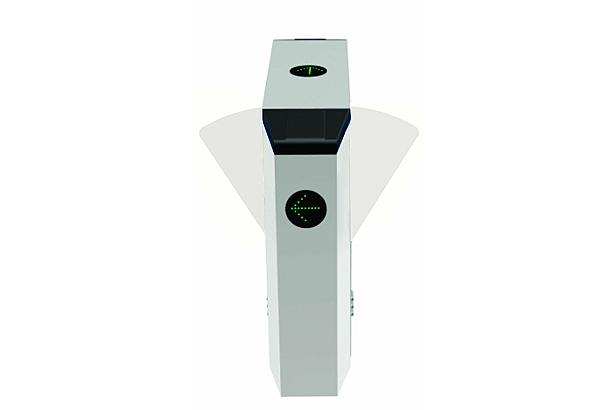

Flap Barrier Gate (Double Machine Core)

Flap Barrier Gate (Double Machine Core)
V-PM3100DC-FBT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy duty stainless steel Flap Barrier
  • LED Direction indicators at each side
  • Selectable operating modes- single direction, bi-direction, always free or always locked
  • IP44 Ingress Protection Rating
  • Automatic reset of barrier gate after each passage
  • Adjustable time out delay
  • Integration support with any RFID/Biometric Reader through NO input
  • Top quality AISI 304 grade SS construction
Parameter Specifications
Passage width 550mm
Throughput rate 35 p/m
Power supply 100~240 V AC
Motor voltage 24 V DC
Max power consumption 35W
Frequency 50~60 Hz
Prectection level IP 44
Working temperature -25°C~+70°C
Electro-magnetic drive DC
Dimension 1200x280x980mm
Net weight  75 kg
Certifications CE, FCC, RoHS
