CCTV Surveillance Cameras

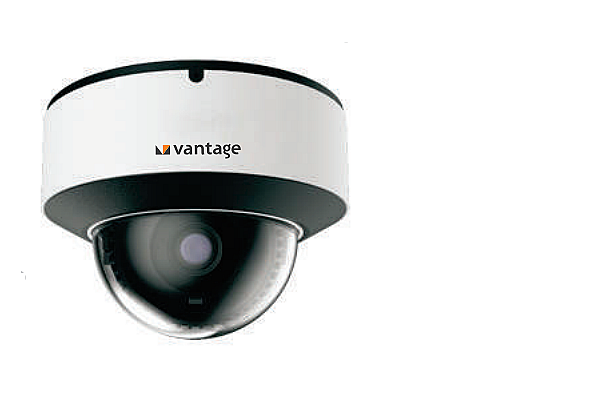

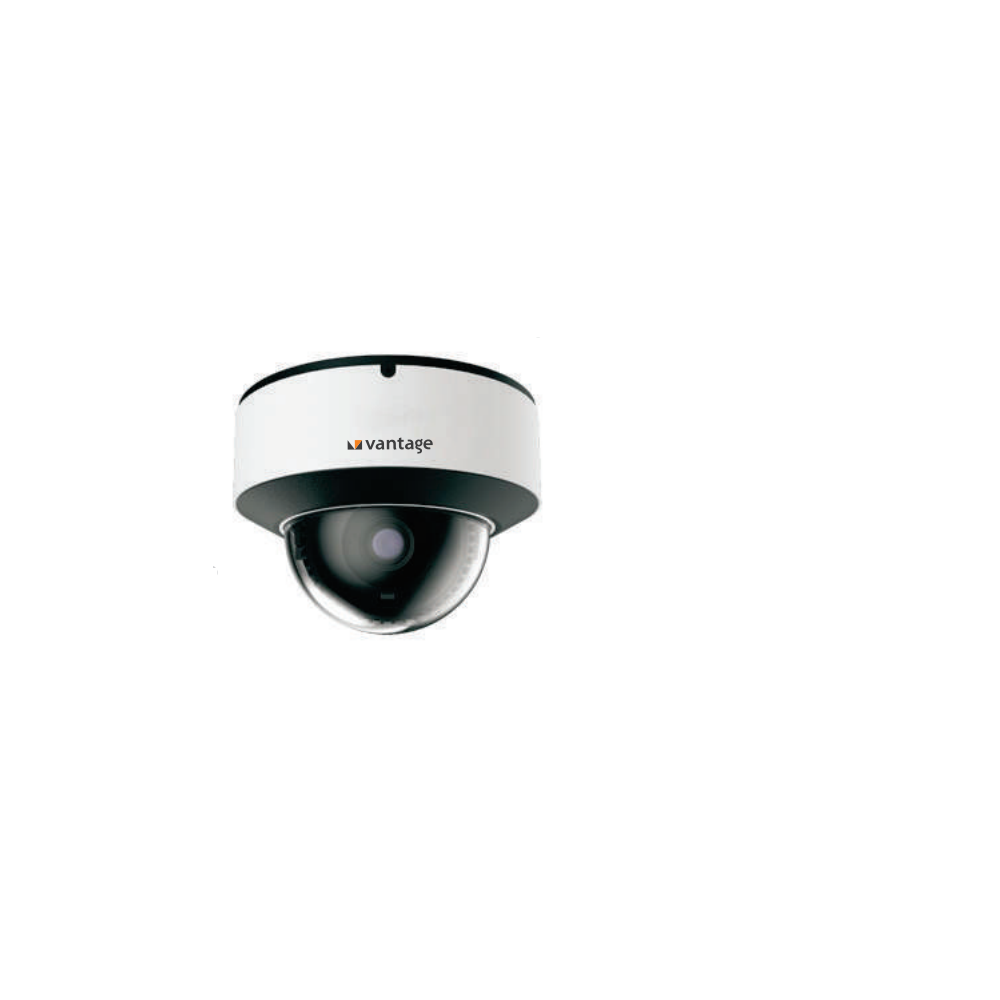

8MP Fixed Lens Dome IP Camera
VV-NC91178D-AF2IR1T1
- Ultra High Definition 8MP ( 3840 x 2160) resolution
- H.265+ video compression technology with real time encoding
- Inbuilt 120dB WDR, 3D DNR, HLC, ROI, Defog & BLC functions
- Support Triple streams
- High performance IR Cut mechanical filter for True Day & Night vision
- Inbuilt Smart Analytics Features
- Built-in micro SD card slot, up to 256G
- IP67 Weather proof outdoor enclosure
- 8MP Ultra HD resolution (3840×2160) with 1/2.8" Progressive Scan CMOS sensor at up to 20fps (8MP) and 25/30fps (1080P/720P) across multiple resolutions from 8MP down to D1 and CIF
- H.265+/H.265/H.264+/H.264/MJPEG video compression with triple streaming and bit rate range of 64Kbps to 12Mbps for high-quality, bandwidth-efficient transmission
- 2.8mm fixed lens with 104° horizontal, 55° vertical, and 125° diagonal field of view for ultra-wide dome coverage in indoor and outdoor environments
- Smart IR night vision with 20–30 metre IR range, 0.02 lux minimum colour illumination, and 0 lux with IR active for reliable 24/7 surveillance
- 120dB Wide Dynamic Range (WDR) with 3D DNR, BLC, HLC, Defog, and individually configurable ROI zones for crystal-clear imaging in any lighting condition
- Advanced Smart Analytics including line crossing, region intrusion, loitering detection, illegal parking, abandoned/missing object, face detection, and video metadata extraction for human/vehicle features
- IK10 impact-resistant and IP67 weatherproof dome enclosure with 1CH alarm input, 1CH alarm output, and built-in microphone for complete perimeter protection
- ONVIF-compatible with full protocol support including IPv4/IPv6, RTSP, HTTPS, SMTP, PPPoE, DDNS, 802.1x, and QoS via 1x RJ45 10/100 Ethernet port with up to 10 simultaneous users
- Built-in Micro SD/SDHC/SDXC card slot supporting up to 256GB local storage plus NVR/CMS network storage with ANR (Automatic Network Replenishment) support
- DC12V or PoE (IEEE 802.3af) power input with maximum 9W consumption, operating from -30°C to +60°C, compact size Φ119×87.8mm, weight 0.64kg, certified CE, FCC, and RoHS
