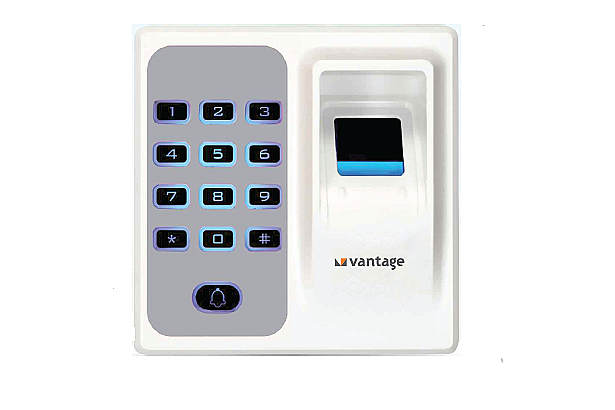

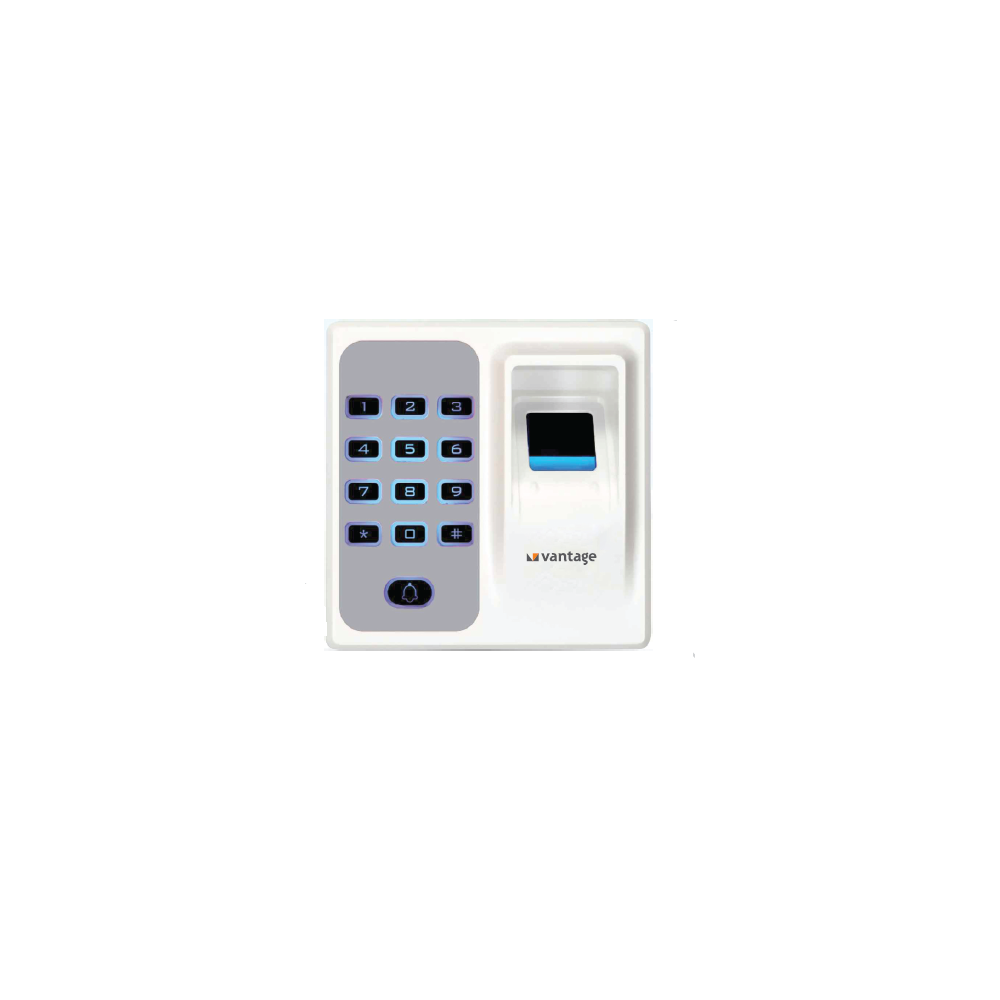

Fingerprint Access Control Reader

Fingerprint Access Control Reader
VV-BS501FP-CT5
Image of 'Access Control' feature Image of 'EM Card' feature
  • Fingerprint and RFID proximity Card reader
  • User Capacity of 3000 users
  • Read frequency 125kHz and Read Range of 3-5 cm
  • Optical fingerprint sensor and LED & Buzzer Indicator
  • High resolution 600 dpi optical sensing
  • ABS Housing Meterial
  • High performance scratch proof optical sensor offers 600 dpi resolution for accurate fingerprint scanning
  • Fingerprint templates, card IDs and password users each support a capacity of 3000 users
  • Transaction capacity stores up to 100,000 logs, with identification speed under 1.0 second
  • False acceptance rate is below 0.01%, and false rejection rate is below 0.0001%, ensuring reliable verification
  • Verification works at a 360 degree angle, supporting both 1:1 and 1:N modes
  • Inbuilt 125 Khz EM card reader offers a read range of 3 to 5 cms
  • Multiple authentication modes are supported, including fingerprint with EM card and pin, fingerprint with EM card, and fingerprint with pin
  • Power requirement is DC 12V at 4A, with operating temperature ranging from 0°C to 45°C, and humidity from 20% to 60%
  • RS485 communication is supported, along with a door bell function for added convenience
  • Certified CE, FCC and RoHS for guaranteed safety and quality
