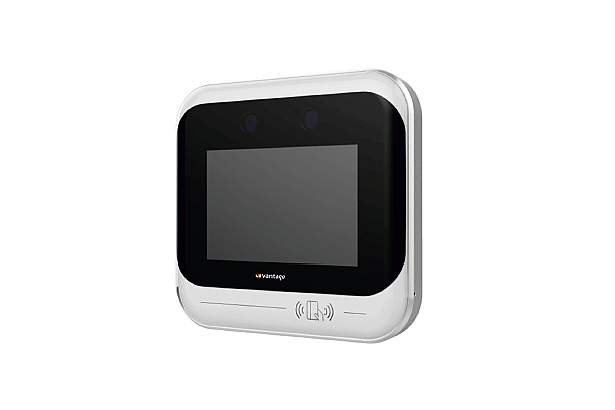

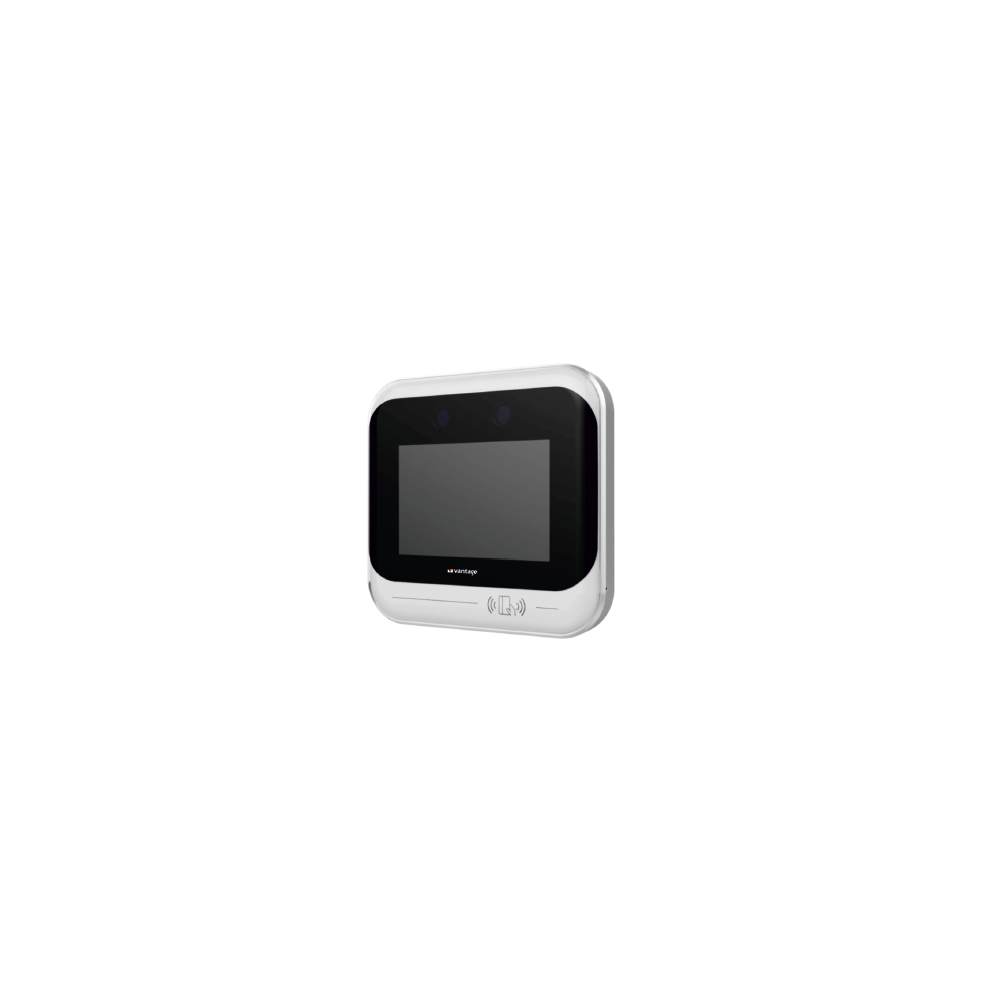

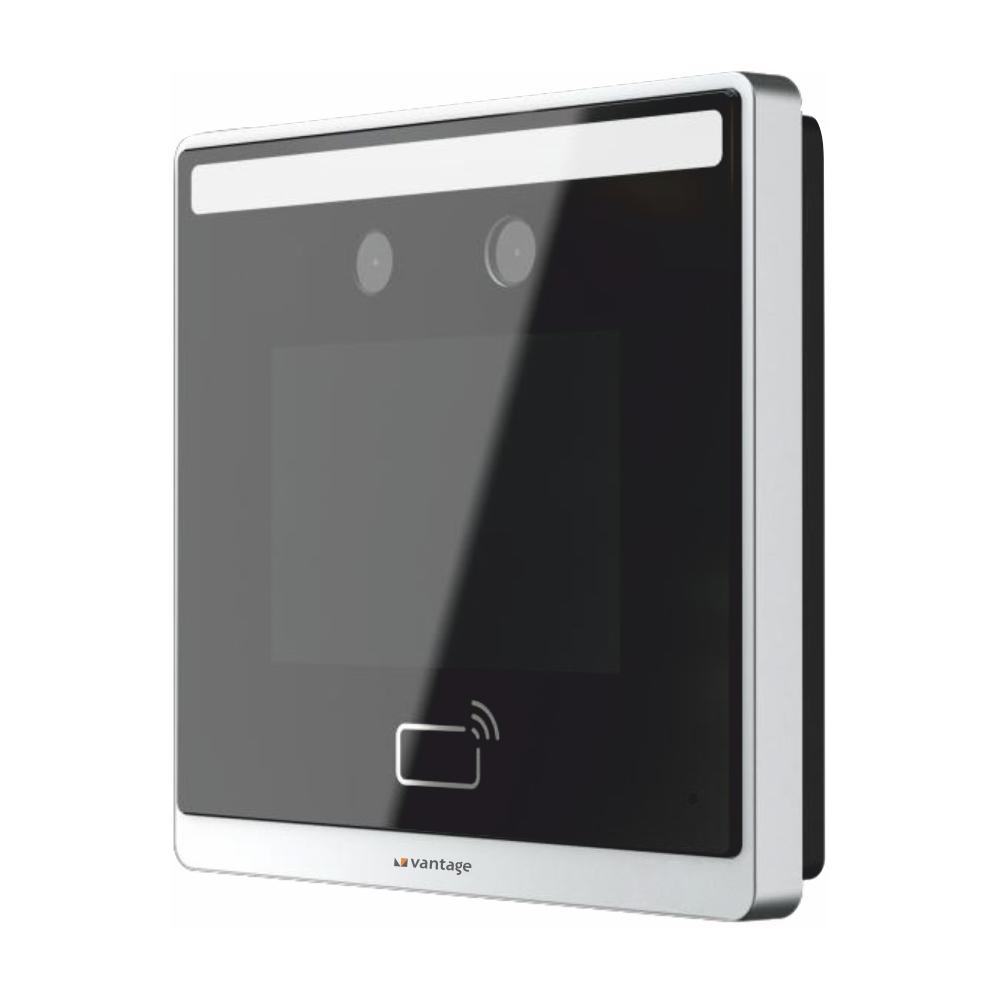

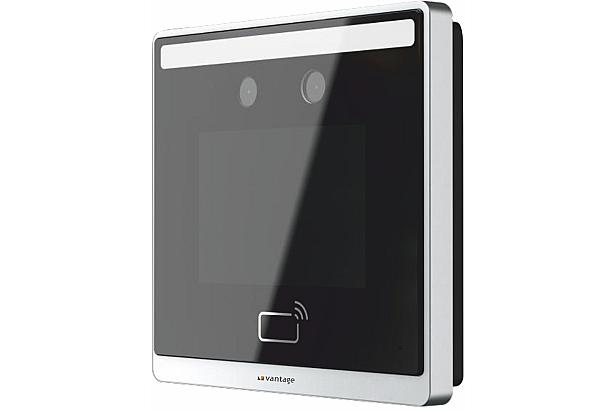

Face Recognition + RFID Access Control Reader

Face Recognition + RFID Access Control Reader
VP-BS4013FP-CAWT1
Image of '3.5'' LCD' feature Image of 'Face Detection' feature Image of 'TCP/IP' feature Image of 'Touch Screen' feature Image of 'Wifi' feature
  • Standalone access control terminal with wide range of user authentication including facial recognition, card & password
  • Advance facial algorithms for accurate recognition with face liveness detection to prevent spoofing
  • Equipped with full HD dual lens camera and interactive user interface 3.5-inch LCD touch screen
  • Stores up to 10,000 face comparisons and 3,000 face images,with face picture database management via a web interface
  • Built-in high-efficiency white LEDs provide light compensation in low-light environments
  • Network integration via TCP/IP or Wi-Fi for enhanced access control management
  • 3.5" capacitive LCD touch screen with screen resolution 320×480 and brightness 250cd/m²
  • Dual lens 2MP camera with face recognition distance 0.5–2.5 meters and face recognition accuracy >98.9%
  • Face recognition time ≤0.2 sec with verification time <0.3s and verification mode 1:1 / 1:N
  • FAR <0.001% and FRR <0.1%
  • Stores up to 10,000 face comparisons, 3,000 face templates, 3,000 card users, 3,000 password users and 10,000 transaction logs
  • Card reading distance 0~3cm, reading duration <1s and card reading frequency 13.56MHz
  • RJ45 TCP/IP 10/100 Ethernet port with 2.4G Wi-Fi network and PoE supported
  • Power requirement DC12V/1A with power consumption <12W
  • Working temperature -20°C to +50°C and operating humidity <95% non-condensing
  • Overall dimensions 123.5mm × 119.5mm × 26.1mm, certified CE and RoHS
