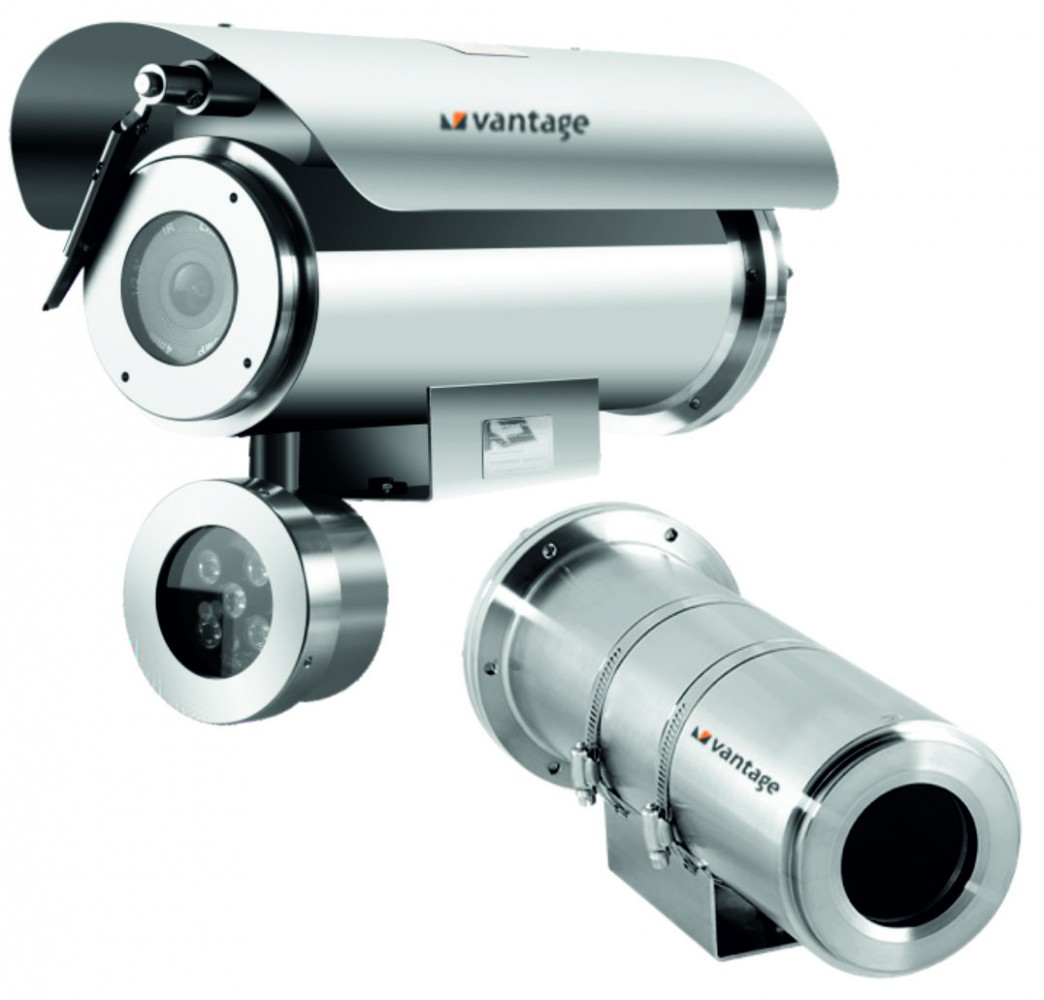

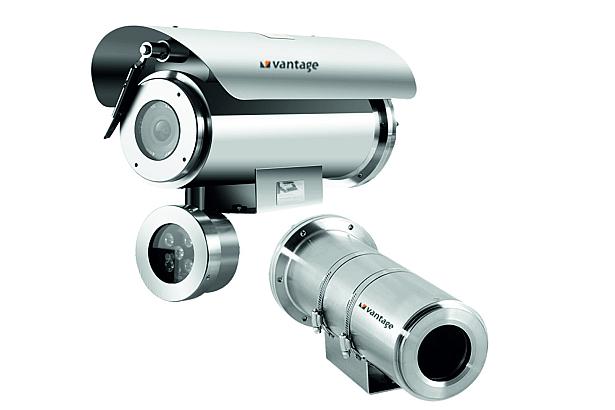

Explosion Proof Camera
- Full High Definition 2MP/ 5MP Resolution with H.265 Compression
- Inbuilt True 120dB WDR, 3D DNR, HLC, Defog & BLC Functions
- Supports Smart Analytics Features with Inbuilt SD card slot supported up to 128GB
- Atex certified 304(316) stainless steel enclosure-surface treated with fluorine-carbon spray, elegant structure, explosion-proof, dust proof, waterproof,rust-proof
- Optics class toughened ultra-clear white explosion-proof glass, flux rate higher than 96%
- Invisible nano wiper,non-stick water,non-stick oil,dust-proof
- Applicable for the factories like oil field,chemical plant,port,oil storage, steamship,oil drilling platform,gas stations,coal mine,aviation,military, steel,firecrackers production,machinery etc
CAMERA SPECIFICATIONS
Resolution: 2MP - 1920x1080 effective pixels
Lens: 3.6mm fixed lens | Horizontal FOV: 89°
Minimum Illumination: Colour 0.005 lux @ F1.6 | B&W: 0 lux (IR on)
IR Range: Up to 30 metres
Frame Rate: 1~30fps (PAL) / 1~25fps (NTSC)
Video Compression: H.265 / H.264 / MJPEG
Video Bit Rate: 128Kbps to 10Mbps
Onboard Storage: Micro SD/SDHC/SDXC up to 128GB
Wide Dynamic Range: 120dB
Power: 12VDC ±10% or PoE (IEEE 802.3af)
Max Power Consumption: <9W
Ethernet: 1x RJ45 10/100 port
System Compatibility: ONVIF
Protocols: IPv4/IPv6, RTSP, DHCP, NTP, SMTP, FTP, DDNS, PPPoE, SNMP, UPnP, HTTPs, 802.1x, QoS
MECHANICAL SPECIFICATIONS
Enclosure Material: 304 Stainless Steel (316 optional)
Surface Treatment: Fluorine-carbon spray
Ingress Protection: IP68
Installation: Wall mounting
Weight: ≤10kg
Operating Humidity: 95% or less (non-condensing)
Interface: G-3/4" Environmental
ATEX CERTIFICATION
ATEX Marking: ExdIICT6 / DIP A20 TA, T6
Certificate Number: CNEx11.0264
Certifications: UL, CE, FCC, RoHS and ISO
APPLICABLE ENVIRONMENTS
Oil fields, chemical plants, ports, oil storage facilities, steamships, oil drilling platforms,
gas stations, coal mines, aviation facilities, military installations, steel plants,
firecrackers production facilities, heavy machinery environments
