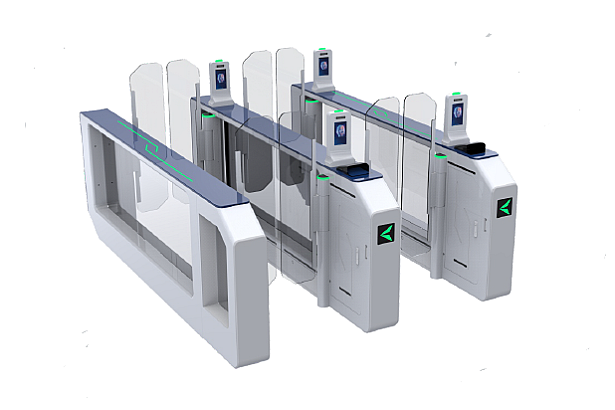

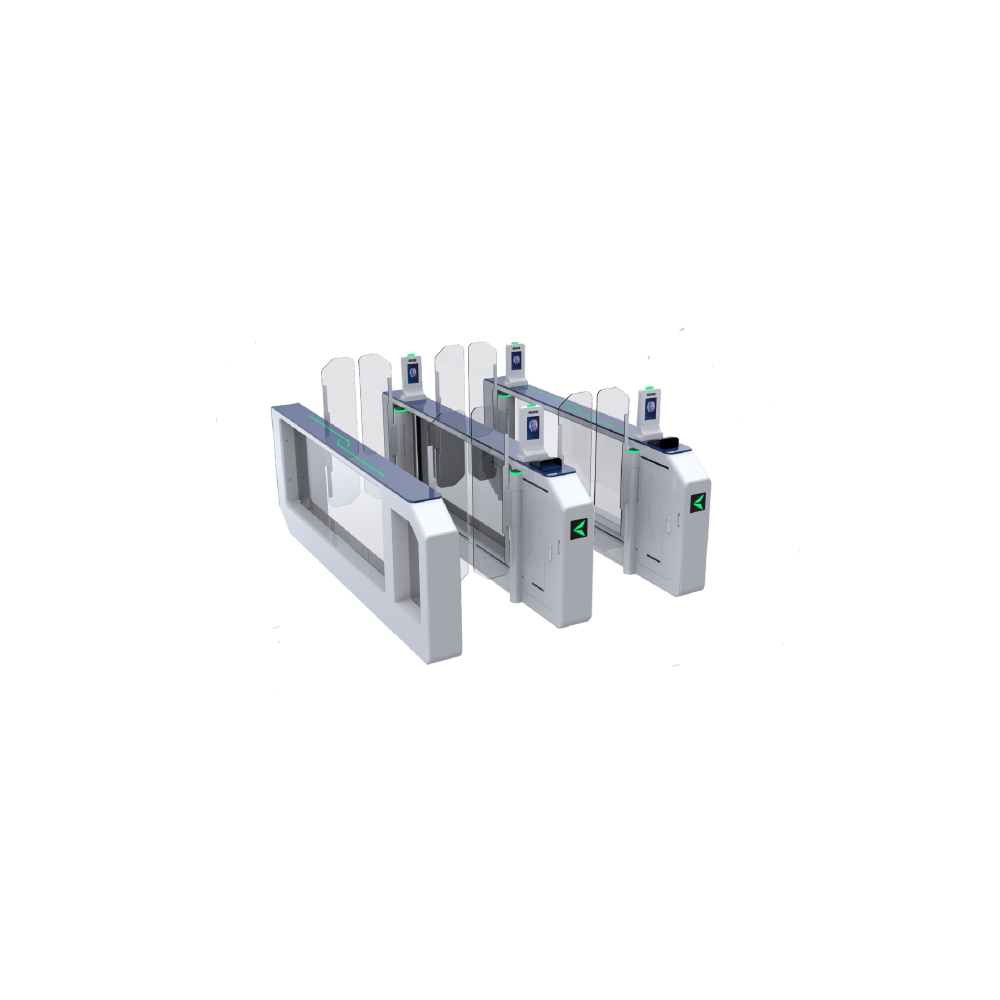

Dual Authentication Swing Gate Barrier

Dual Authentication Swing Gate Barrier
VP-PM5130SC/DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic dual access swing gate
  • Single/dual machine core with bi-directional operating modes supported
  • Half height operation with ≤600mm standard passage width
  • Dual identification access gates suitable for application at airports,border check points, immigration etc
  • LED status indicator & adjustable time out delay
  • Automatic reset of barrier gate after each passage
  • Integration support with any RFID / Biometric Reader through NO input
  • Fail safe function supported in case of emergency
  • Top quality stainless steel construction
  • Passage width ≤600mm standard (≤900mm optional) with throughput rate of 35–40 persons per minute and passing time 5s default (adjustable 0–25s)
  • Opening and closing speed 0.5–1.5s with unidirectional and bidirectional passage direction
  • Servo brushless motor with operating voltage DC 24V and power supply AC100~240V with maximum power consumption 120W
  • 23 pairs of infrared sensors for pedestrian protection with service life of >15 million operation cycles
  • Communication via Relay Input (NO/NC/COMM) with optional RS232/RS485 interface
  • Stainless Steel 304 grade main body with acrylic side panel and transparent polycarbonate door material
  • IP41 ingress protection rating with working temperature -25°C to +70°C and relative humidity ≤90% non-condensing
  • Overall dimensions 2800 × 220 × 1000mm, net weight 200kg single core and 250kg double core, certified CE and RoHS
