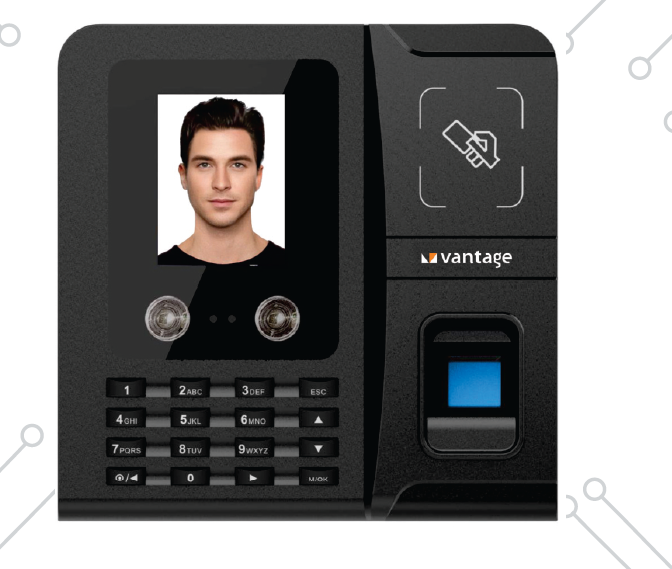

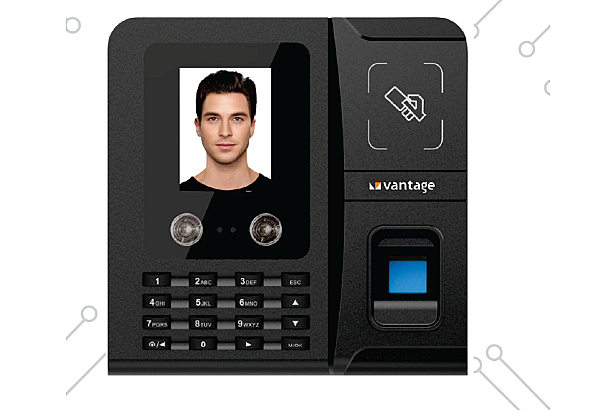

Dual Authentication Face Recognition + Fingerprint + RFID TA System

Dual Authentication Face Recognition + Fingerprint + RFID TA System
VV-BS550FR-CABT5
Image of '2.8" color TFT screen' feature Image of '360° Verification Angle' feature Image of 'Access Control' feature Image of 'Battery Backup' feature Image of 'Scratch Proof Optical Sensor' feature Image of 'TCP/IP' feature Image of 'USB Communication' feature
  • Scratch Proof optical sensor
  • High resolution 600 dpi optical sensing
  • Fingerprint/Pin/Card authentication
  • 360 Degree verification angle
  • 2.8" TFT Color screen
  • TCP-IP network connectivity
  • USB connectivity for communication and data backup
  • High performance sensing with <1s identification time
  • Inbuilt access control functionality
  • Inbuilt battery backup (Optional)
  • Quad-core Cortex-A7 CPU with 64M RAM and 256M Flash memory
  • 2.8" TFT colour screen display with 360° verification angle
  • Fingerprint capacity 5,000 users, card IDs 5,000 users, facial capacity 1,000 users and transaction capacity 300,000
  • FAR/FRR 0.001/1(%) with verification time 1.0 seconds and verification mode 1:1 / 1:N
  • Inbuilt 125 KHz EM card reader with 3–5cm read range
  • Power requirement DC9V, 1A
  • Working temperature 0°C to 45°C and operating humidity 20%~80%
