Entrance Management Solutions

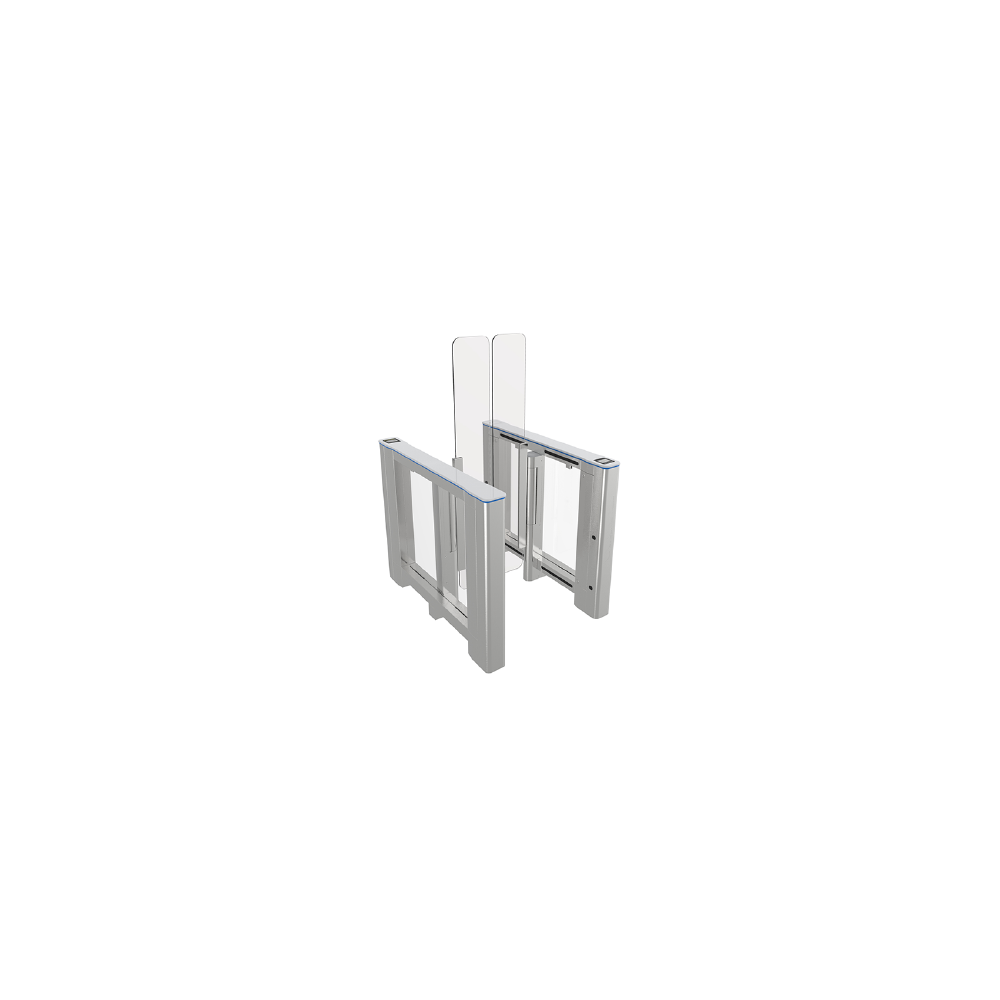

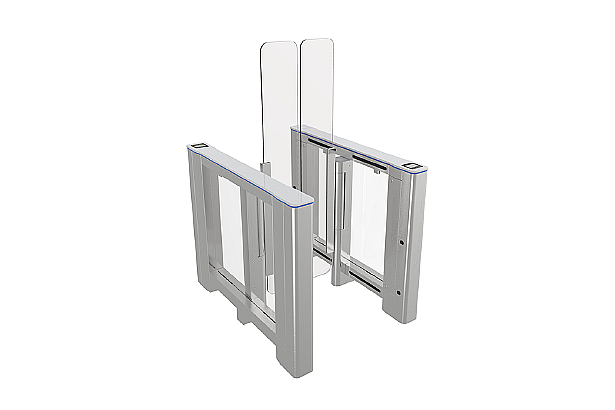

Single/Dual Core Full Height Speed Gate Barrier

Single/Dual Core Full Height Speed Gate Barrier
VP-PM5030SC/DC-SGT3
Image of '100% Duty Cycle' feature Image of 'Delay Time' feature Image of 'IP44' feature Image of 'LED Direction Indicators' feature Image of 'Wired Terminal' feature
  • Heavy-duty motorized-automatic swing gate speed barrier
  • Single/dual machine core with bi-directional operating modes supported
  • Optional passage height 900mm/1800mm & passage width 600mm/900mm
  • LED status indicator & adjustable time out delay
  • Automatic reset of swing barrier after each passage
  • Integration support with any RFID/Biometric Reader through NO input
  • Fail safe function supported in case of emergency evacuation
  • Top quality durable SS304 grade construction with marble top
  • Passage Width: ≤600mm (standard), ≤900mm (optional)
  • Passage Height: 900–1800mm (customizable full height)
  • Throughput Rate: 35–40 persons per minute
  • Opening Speed: 0.5 to 1.5 seconds
  • Drive System: Electro-mechanical DC motor with servo brushless motor
  • Operating Voltage: DC 24V
  • Power Supply: AC 100–240V
  • Power Consumption: Maximum 240W
  • Safety Sensors: 12 pairs of infrared sensors for pedestrian safety
  • Protection Rating: IP44 ingress protection
