Recorders and Video Management Systems

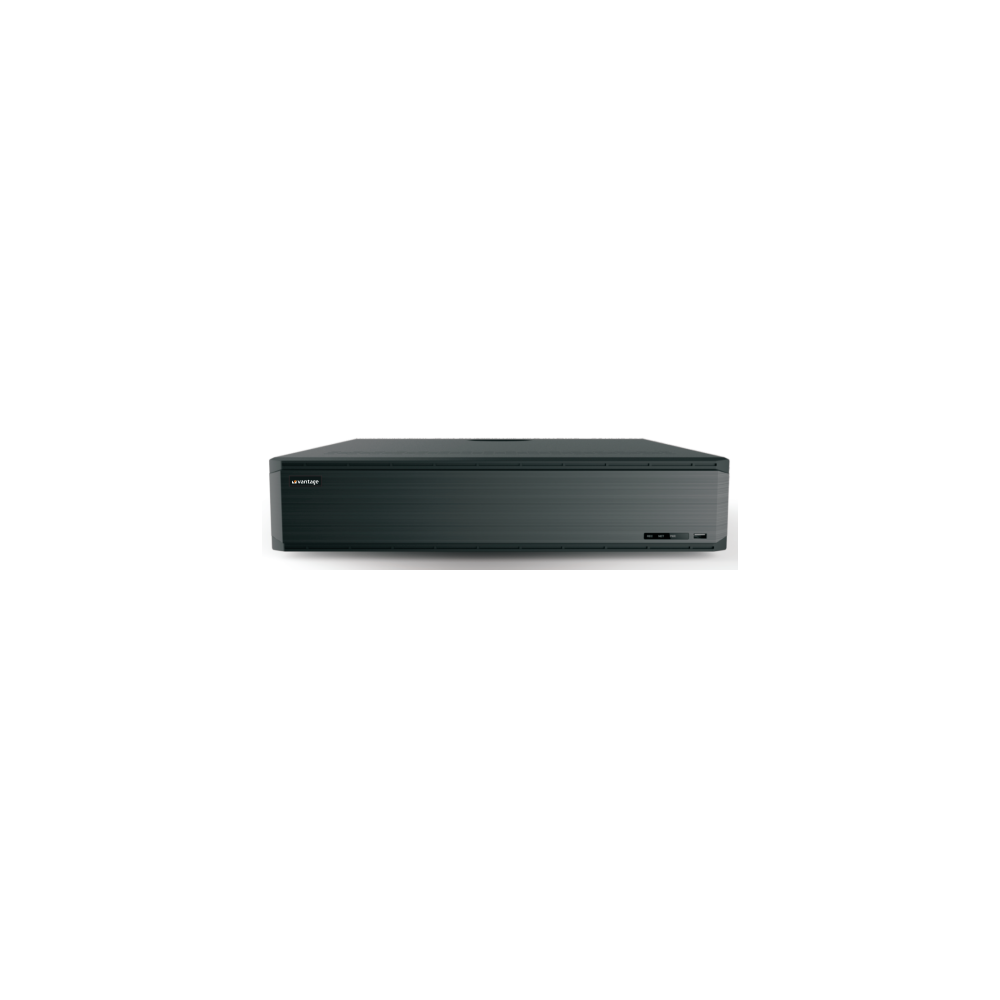

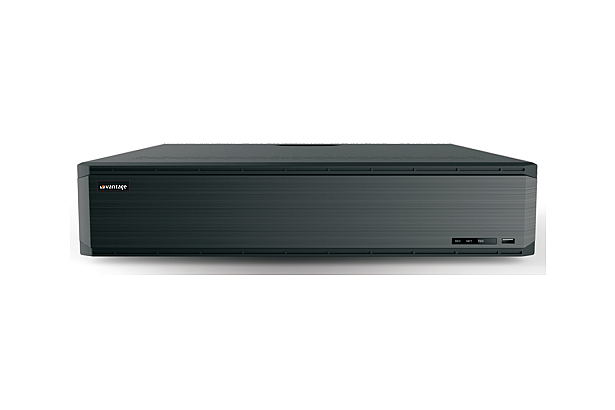

32 Channel Smart AI PoE NVR

32 Channel Smart AI PoE NVR
VV-NV3432-HP8ST1
  • ​ONVIF Supported
  • Up to 12 Megapixels Resolution Display and Recording
  • H.265 video compression technology with real time encoding
  • Full function CMS (Central monitoring software) supported
  • Two way audio supported
  • PoE network ports which support IPC direct connection to NVR
  • Dual streaming technology to encode recording stream and Network
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
  • 32-channel IP video input with support for up to 12 Megapixel recording resolution across resolutions including 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, and CIF
  • H.265 / H.265+ / H.264 video compression with real-time encoding and dual streaming technology for simultaneous recording and network transmission at 256Mbps bandwidth
  • HDMI video output at up to 3840×2160@60fps (4K Ultra HD) and VGA output at 1920×1080, with multi-channel display layouts supporting 1/4/6/8/9/13/16/25/32/36 split views
  • Maximum 16-channel simultaneous playback with resolution support of 1CH 12MP / 4CH 5MP / 9CH 720P / 16CH 720P and playback functions including fast forward, rewind, and digital zoom
  • 16x PoE network ports (IEEE 802.3af, RJ45) for direct IP camera connection plus 1x Gigabit (10/100/1000Mbps) Ethernet port for network integration
  • 8x SATA storage ports supporting up to 8TB per drive plus 1x eSATA port, with recording modes including Manual, Alarm, Motion Detection, and Continuous
  • Face detection and comparison engine supporting 32 face picture libraries with up to 5,000 face pictures, 180 pictures/minute processing, and Allow/Block list alarm functionality
  • Built-in video structure analysis with Human/Vehicle classification and Plate Recognition, supported over protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, and 802.1x
  • 16-channel alarm input and 4-channel alarm output with triggering options including recording, snapshot, buzzer, preset, and email alert, plus RS-485 for PTZ/keyboard control
  • ATX 300W power supply with under 15W consumption (HDD excluded), operating temperature -10°C to +50°C, dimensions 445×436×90mm (W×D×H), weight under 1kg, certified CE, FCC, and RoHS
