64 Channel Smart AI NVR with RAID

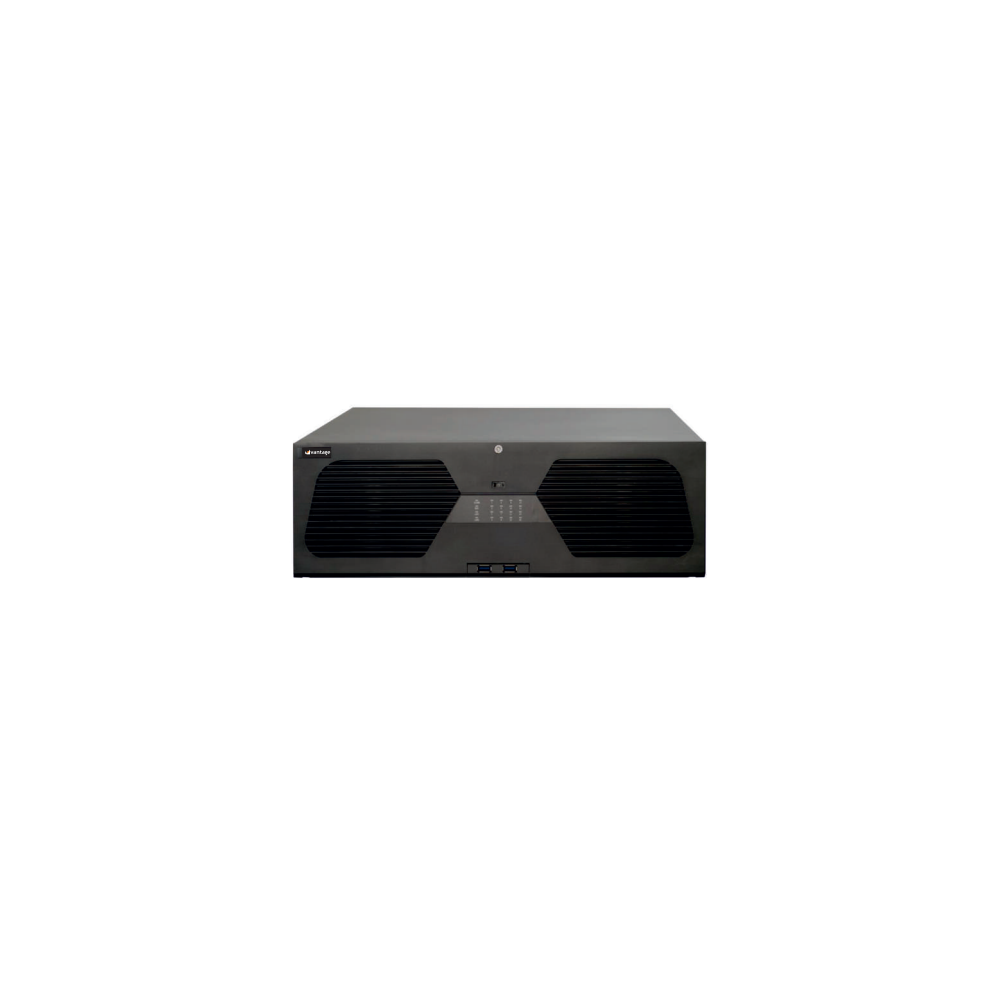

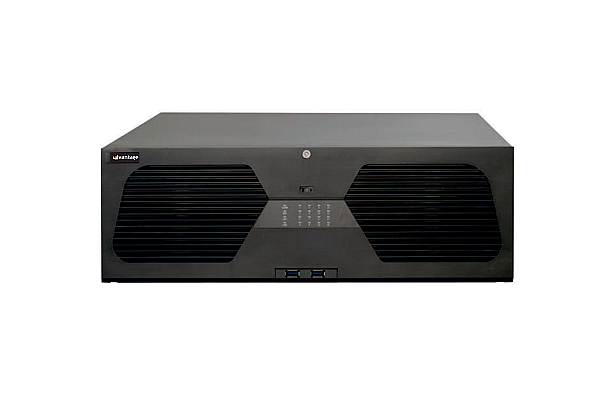

64 Channel Smart AI NVR with RAID
VV-NV3464-R16ST1
Image of 'eSATA' feature Image of 'Face Recognition' feature Image of 'H.265+ Compression' feature Image of 'Two Way Audio' feature Image of 'VCA' feature
  • Up to 16 Megapixels Resolution Display and Recording
  • H.265+ video compression technology with real time encoding
  • Preview, record, playback, backup and remote access are supported
  • Full function CMS (Central monitoring software) supported
  • Support RAID 0, 1, 5, 6, 10
  • Support face detection and comparison
  • ONVIF Supported
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
  • Support multiple VCA (Video Content Analytics) events, such as region intrusion, tripwire, etc.

  • Here are the rewritten 10 technical specification points for VV-NV3464-R16ST1:

  • 64-channel IP video input with embedded Linux operating system, 16-bit true color graphical menu interface, mouse operation, and simultaneous real-time recording, playback, network operation, and USB backup
  • Video compression H.264/H.265/H.265+/H.265S with audio compression G.711(U/A) and recording resolution up to 16MP down to CIF at 25fps (PAL) and 30fps (NTSC)
  • Dual HDMI output up to 3840×2160@60fps, VGA output up to 1920×1080, and HDMI audio output supported
  • Live view supports up to 4×16MP@30fps (non-AI mode) and 4×12MP@30fps (AI mode) with 16CH simultaneous playback and multi-screen display up to 80 channels
  • Face detection 64CH (AI by IPC), face comparison at 36 pictures/second, face picture database with 32 libraries storing up to 10,000 face pictures, supporting search, add, modify, and delete via APP, WEB, and external import
  • Video structure analysis with human/vehicle classification 64CH (AI by IPC) and 8CH (AI by device), human/vehicle attribute analysis, face track display on map, and face statistics by day, week, month, quarter, and customized time period
  • 2 × Gigabit Ethernet ports (RJ45), bandwidth 512Mbps incoming/outgoing, USB 3.0 × 1 and USB 2.0 × 2, 24CH alarm input, 8CH alarm output, RS485 full-duplex, and RS232 supported
  • 16 SATA ports up to 10TB each, e-SATA × 2, RAID0/RAID1/RAID5/RAID6/RAID10 supported, N+1 failover redundancy, overwrite mode supported, and max 128 simultaneous user connections
  • Supports TCP/IP, HTTP, HTTPS, FTP, DHCP, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IPv6, UDP, PPPoE, SNMP, and IGMP protocols with CBR bandwidth control and ONVIF compatibility
  • Operating temperature -10°C to +50°C, working humidity 10%–90%, dimensions 437 × 483 × 143mm, ATX275W power supply, power consumption under 30W (hard disk not included), certified CE, FCC, and RoHS
