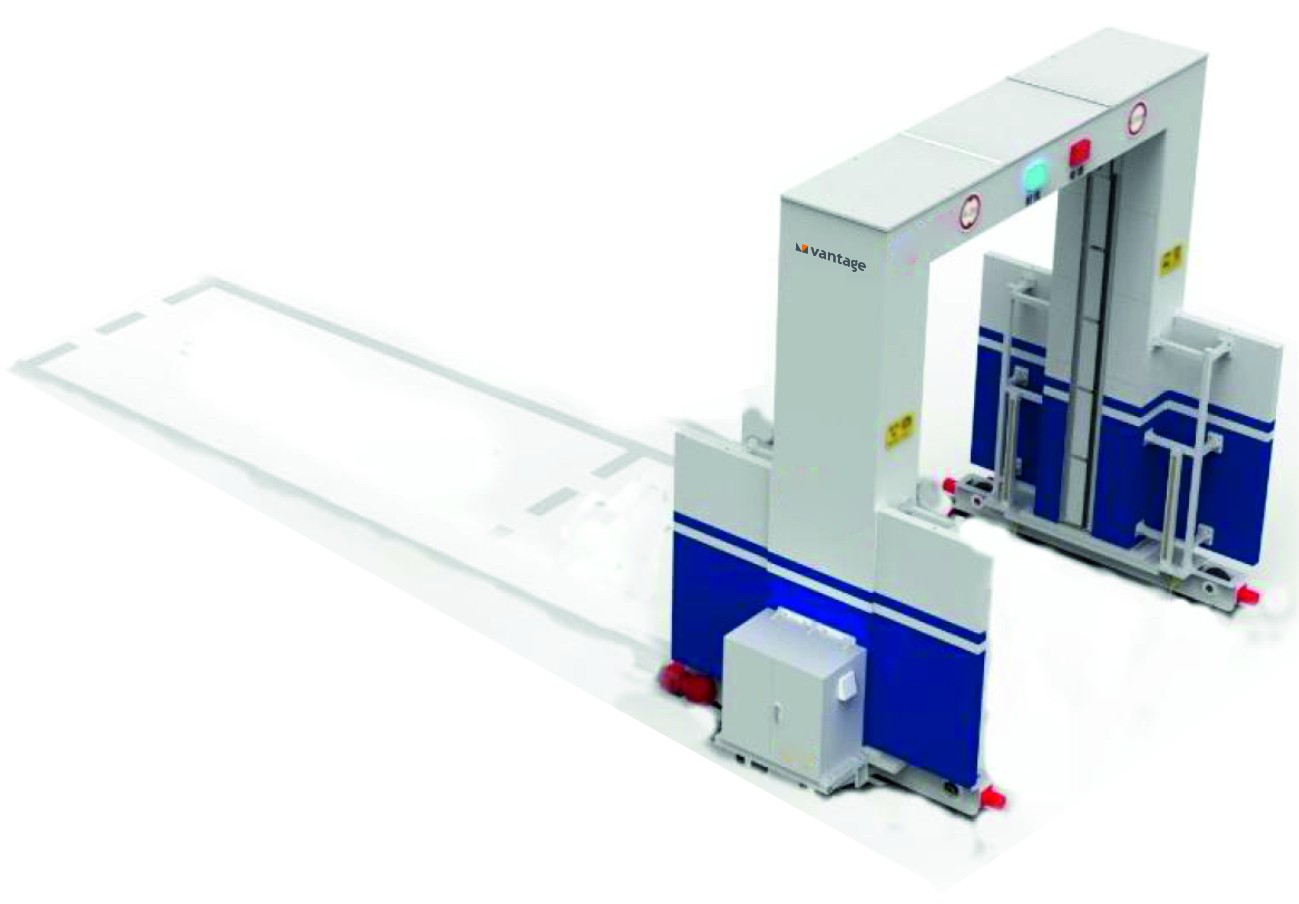

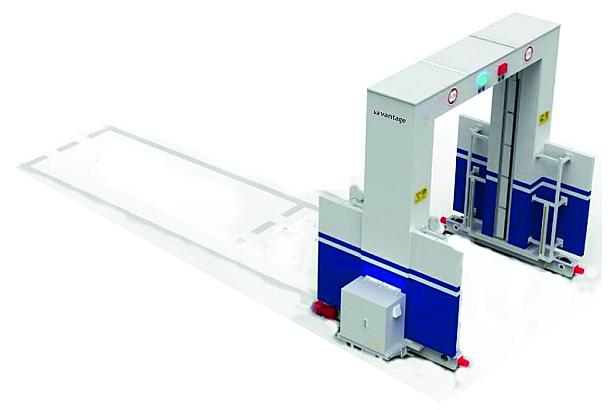

Automated Self-Moving Cargo and Vehicle Inspection X-Ray Scanner
- Automated self-moving vehicle x-ray scanner - scans passenger vehicles, vans and minibuses up to 13 metres in length
- 3m x 3m portal-shaped detection system - accommodates full-size vehicles without dismounting passengers
- Lateral X-ray scanning for effective detection of contraband, illegal drugs, weapons and other prohibited objects
- Ultra-low radiation dose per inspection (<7.2 µSv) - completely safe for vehicle occupants and operators
- 100 vehicles/hour throughput - high-speed scanning for busy border checkpoints and security perimeters
- Password-protected software with real-time data management, image playback and user access control
- ANPR (Automatic Number Plate Recognition) integration supported - links vehicle scans to registration records
- CE, FCC and RoHS certified - compliant with international safety and regulatory standards
GENERAL SPECIFICATIONS
Tunnel Size: 3m x 3m (optional 3.5m x 4.2m)
Max Vehicle Length: Up to 13 metres
Typical Throughput: 100 vehicles/hour
ANPR Integration: Supported (optional)
X-RAY GENERATOR
Dual Energy Accelerator: 200kV (optional 300kV)
X-Ray Direction: Lateral side
X-Ray Dose per Inspection: <7.2 µSv
Dose Rate Outside System: 2.5 µSv
X-Ray Leakage: <5 µSv/h at 10m from generator
Wire Resolution: 1.5mm
Steel Penetration: Typical 50mm to 70mm
Detector Beam Shape: High resolution L-shaped detector line
Cooling: Sealed oil cooling
Noise Level: <65dB(A) at 1m from system
Power Consumption: Maximum 4KVA
IMAGING & MANAGEMENT
Image Functions: Colour / black & white, reverse colour, organic & inorganic material distinction
Image Enhancement: Local and super enhancement
Digital Zoom: Up to 64x
Brightness Control: Supported
Operating Console: Lockable Intel core processor workstation
Operating Platform: Windows 7 or Windows 10
Monitor: 24" LCD - 1920x1080 resolution
Film Safety: Guaranteed ASA/ISO 1600
POWER & ENVIRONMENT
Operation Power: AC220V ±20%, 50–60Hz ±3Hz
Operating Temperature: Up to 55°C
Operating Humidity: 10%–95% non-condensing
Safety Standard: GB15208.0-2005
