Cargo and Vehicle Inspection X-Ray Scanner- Self Drive

Cargo and Vehicle Inspection X-Ray Scanner- Self Drive
VP-XR2180-VSS16
  • Efficient full vehicle scanning system for passenger vehicles and small cargo including mini buses
  • Drive through technology with ultra-low X-ray radiations dose completely safe for objects inside the vehicle

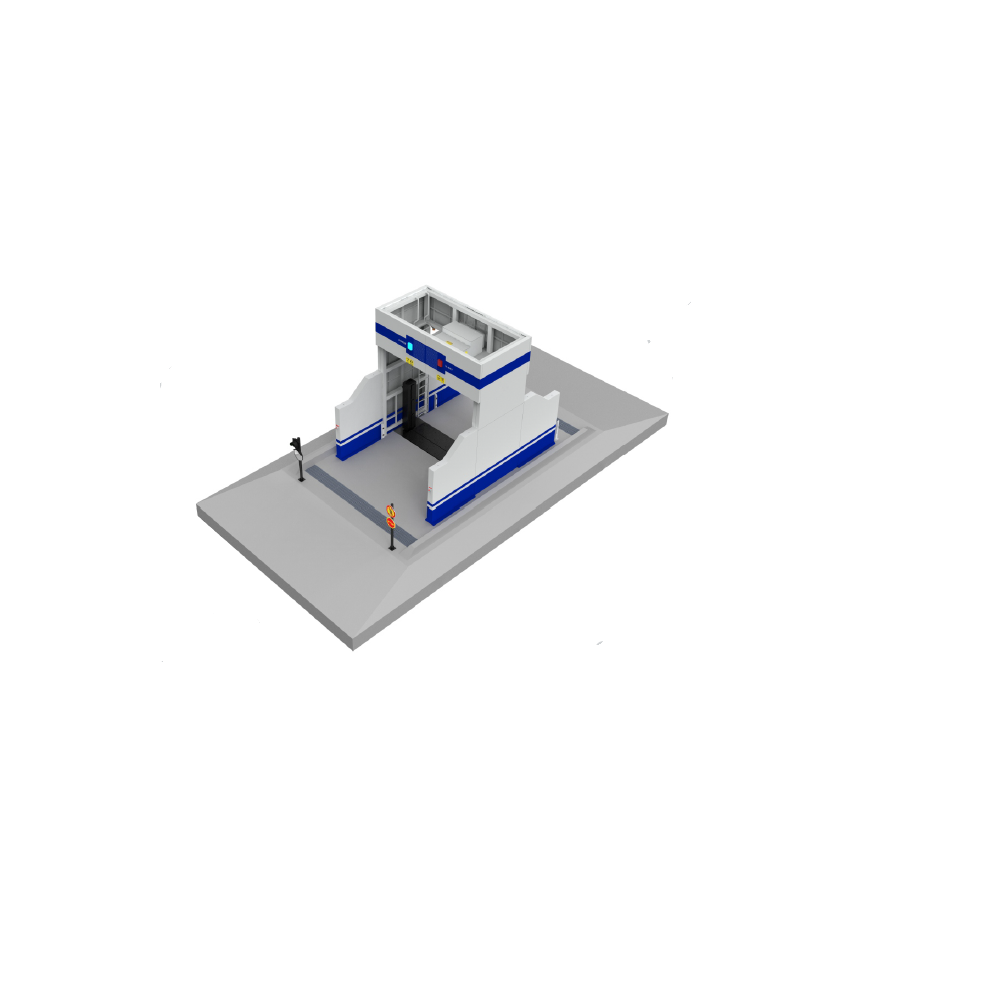

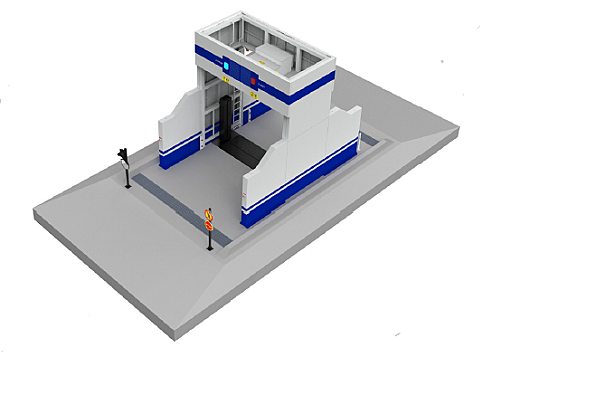

  • X-ray scanner with 3. 8m x 3m portal- shaped detection system
  • Lateral X-ray scanning of vehicle for effective imaging for detection of contraband, illegal drugs, weapon and other
    dangerous objects
  • Password protected software system for user management, real-time data & playback

X-ray Source & Performance

  • Single 200 kV dual-energy accelerator (300 kV optional), top-to-bottom scanning direction
  • Steel penetration: typical 65 mm steel; application 40 mm steel
  • X-ray dose per inspection: <0.2 µSv per scan (drive-through safe for occupants)
  • Dose rate outside: public area <0.5 µSv, compliant with IAEA standard
  • X-ray leakage: <5 µSv/h anywhere 10 m from the generator
  • Film safety: guaranteed ASA/ISO 1600 film; sealed oil cooling
  • Safety standard: complies with GB15208.0-2005

Image Resolution & Detection

  • Wire resolution: dia 1.0 mm copper wire
  • High-resolution L-shaped detector line, dual energy

Imaging Features & Software

  • Colour/black and white imaging, reverse colour, organic and inorganic distinction
  • Local and super enhancement; brightness control; digital zoom up to 64x
  • Lateral X-ray scanning for detection of contraband, illegal drugs, weapons, and dangerous objects
  • Password-protected software with user management, real-time data, and playback
  • Lockable operator workstation on Intel Core processor; Windows 7 or Windows 10
  • 24" LCD monitor, 1920 x 1080 display resolution

Tunnel Size & Throughput Performance

  • Tunnel size: 3.8 (L) x 3 (H) m portal (customizable)
  • Scanning speed: 5 to 10 km/h
  • Typical throughput: 150 vehicles/hour
  • Maximum vehicle length: 20 m, extendable
  • Designed for passenger vehicles and small cargo including mini buses

Electrical & Environmental

  • Operation power: 220VAC (±10%), 50±3 Hz; optional 100/110/120/200 VAC
  • Maximum power consumption: 3 kVA
  • Operating temperature: -15°C to 55°C
  • Operating humidity: 95% non-condensing

Dimensions & Installation

  • Equipment dimensions: 16.5 (L) x 6.5 (W) x 5.5 (H) m
  • Installation area with shielding: 16.5 (L) x 6.5 (W) x 6.5 (H) m
  • Equipment weight: approx. 6350 kg

Compliance & Certifications

  • Certifications: CE, FCC, RoHS
