CCTV Surveillance Cameras

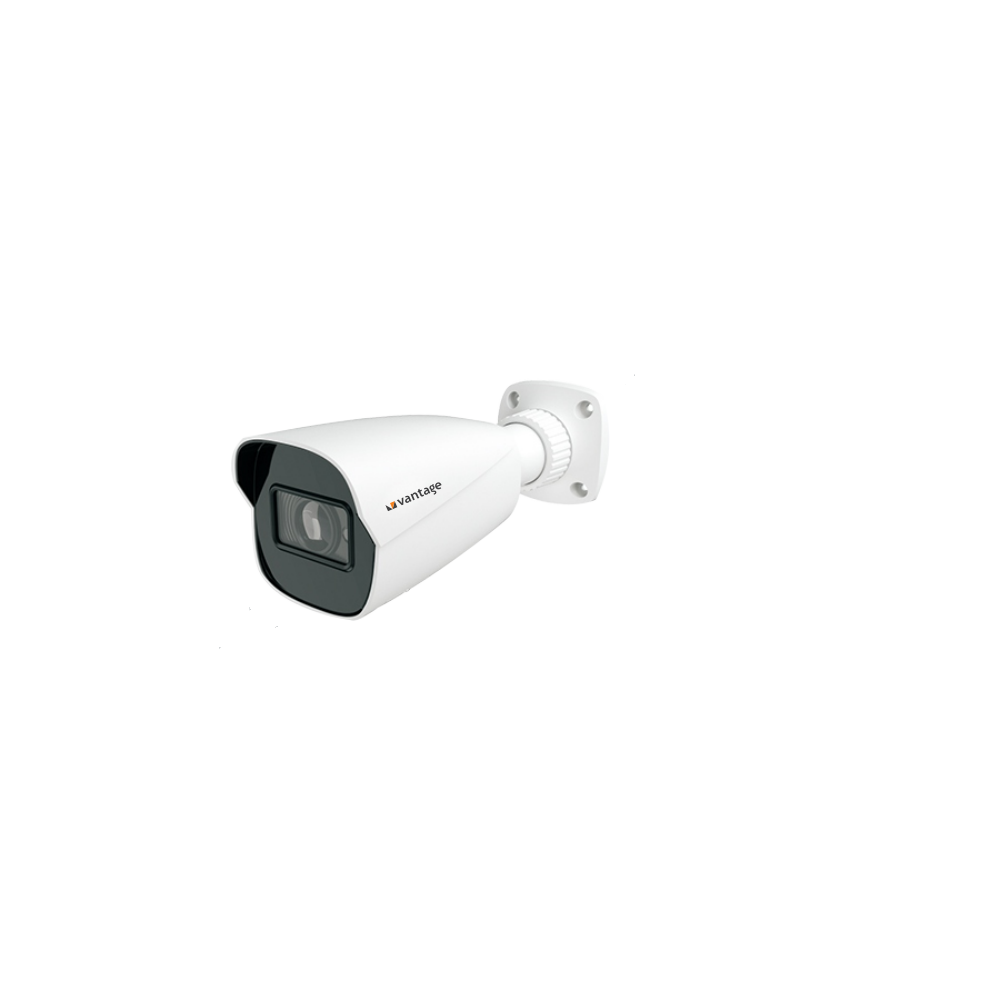

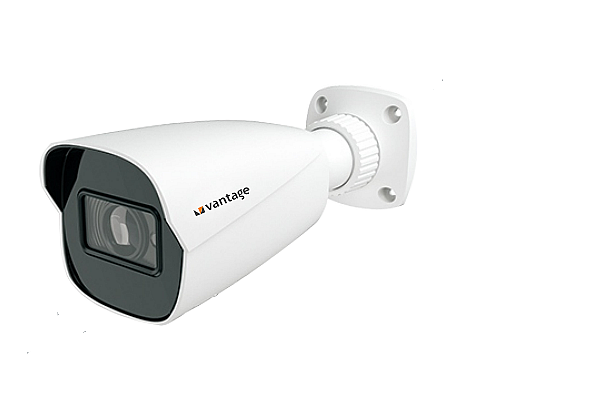

8MP Fixed Lens Bullet IP Camera
VV-NC91588B-AF2IR2T1
- Ultra High Definition 8MP (3840 x 2160) resolution
- H.265+ video compression technology with real time encoding
- Inbuilt 120dB WDR, 3D DNR, HLC, ROI, Defog & BLC functi
- Support triple streams
- High performance IR Cut mechanical filter for true day & night vision
- Inbuilt smart analytics features
- Built-in micro SD card slot, up to 256GB
- IP67 Weather proof outdoor enclosure
- 1/2.8" Progressive Scan CMOS sensor with 8MP (3840 × 2160) effective pixels, minimum illumination color 0.02 lux @ F1.6 with AGC ON, and 0 lux with IR, signal to noise ratio greater than 50dB
- 2.8mm @ F1.6 fixed lens with M12 lens mount, fixed focus, horizontal FOV 104°, vertical FOV 55°, and diagonal FOV 125°
- H.265+ / H.265 / H.264+ / H.264 / MJPEG video compression with H.264 Baseline/Main/High Profile, triple streaming support, and video bit rate 64 Kbps to 12 Mbps
- Main stream resolution up to 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P at 1–30fps (60Hz) and 1–25fps (50Hz), sub stream 720P/D1/CIF/VGA/480×240, and third stream 720P/D1/CIF/480×240
- Inbuilt high intensity Smart IR LEDs with auto intensity control, IR range 30–50 metres, true day & night with ICR, and high-performance mechanical IR Cut Filter with auto switch
- 120dB Wide Dynamic Range (WDR), inbuilt 3D DNR, HLC, BLC, Defog, ROI, EIS, and ANR support with adjustable saturation, brightness, hue, contrast, sharpness, image mirror, image flip, and NR via client software or web browser
- Smart analytics including line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/missing object detection, face detection and capture, scene change, video blur, abnormal color detection, audio exception, target counting by line/area, and heat map
- Video metadata simultaneously captures human body, motor vehicle and non-motor vehicle extracting 13 human features, 4 motor vehicle features, and 1 non-motor vehicle feature
- 1 RJ45 10M/100M Ethernet port, 1CH audio input, NVR/CMS network storage, built-in Micro SD/SDHC/SDXC card slot up to 256GB, supports UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, P2P, and QoS protocols, ONVIF compatible
- Operating temperature -30°C to +60°C, storage temperature -30°C to +65°C, operating humidity 95% or less, dimensions 217.8 × 80.5 × 80.3mm, weight approx. 0.68KG, IP67 weatherproof enclosure, powered by DC12V or PoE (IEEE802.3af) with max power consumption 9W, certified CE, FCC, and RoHS
