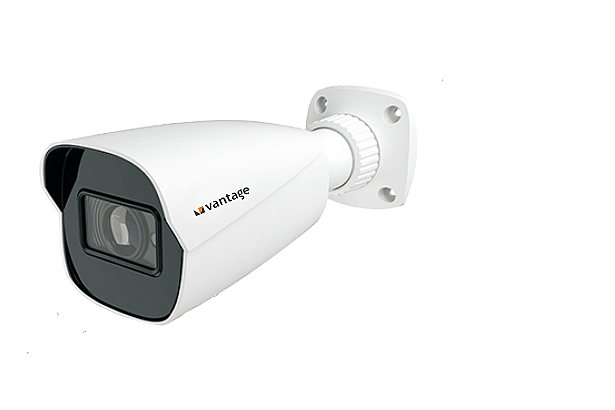

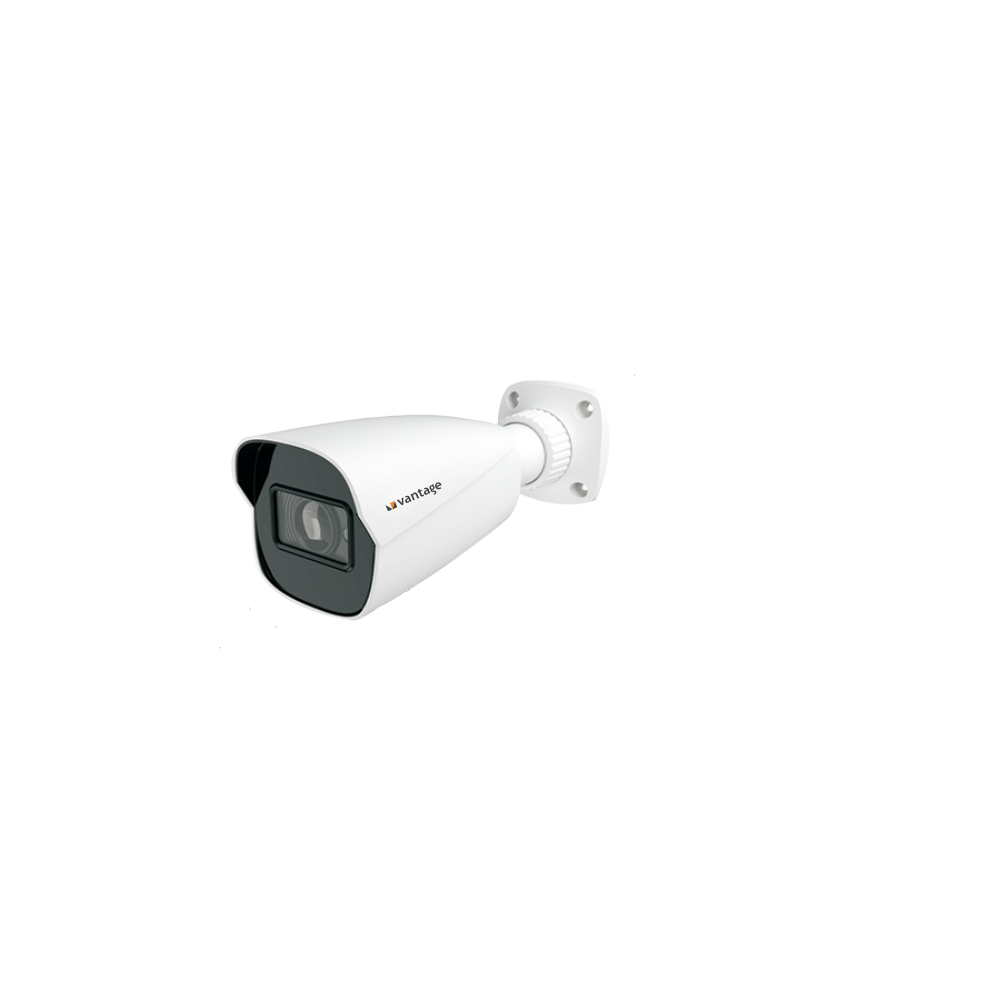

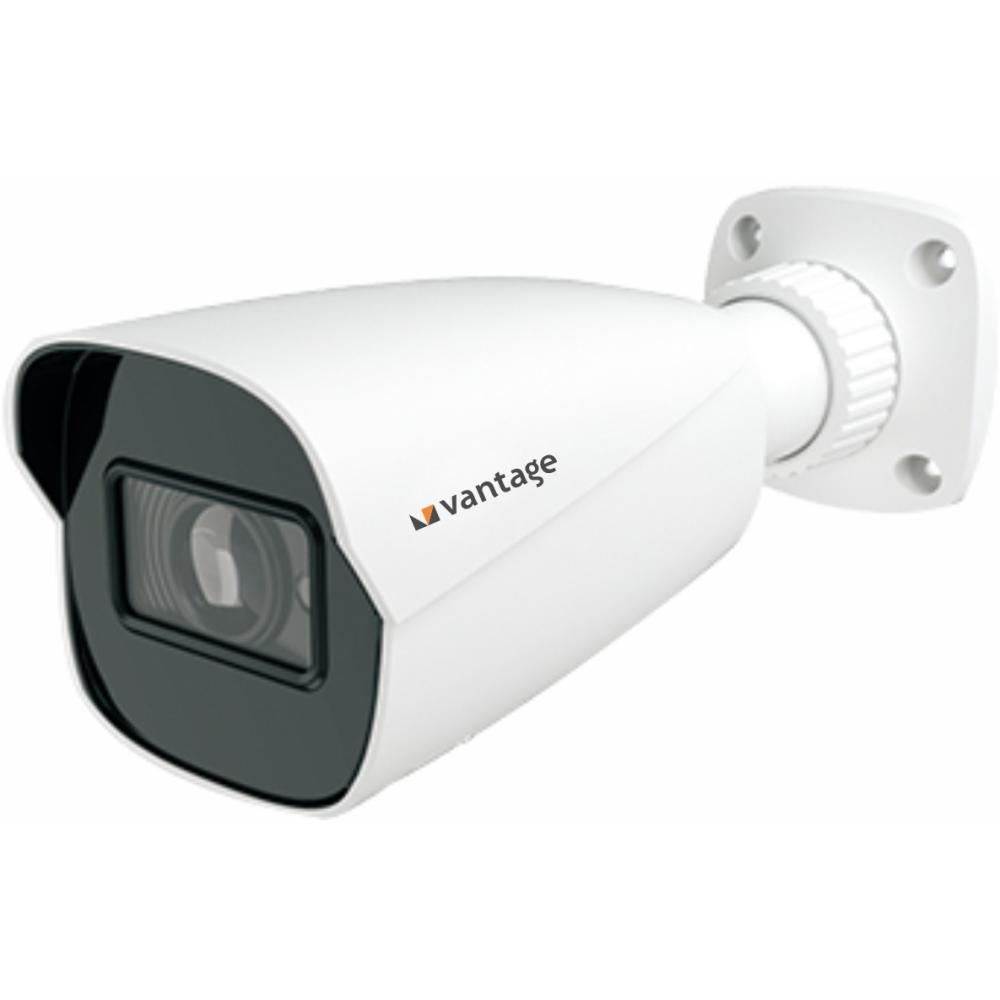

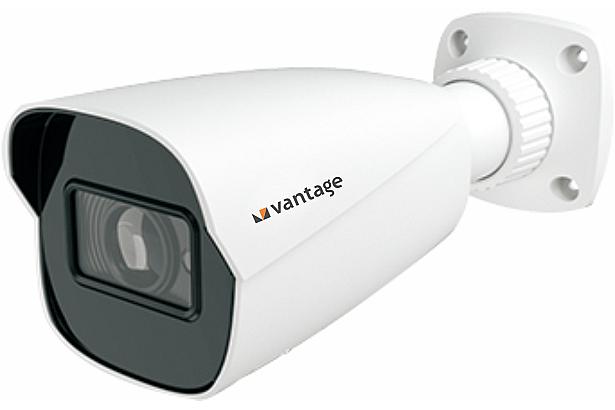

5MP Motorized Lens Bullet IP Camera

5MP Motorized Lens Bullet IP Camera
VV-NC91585B-AZIR2T1
  • Full High Definition 5MP (2592 x 1944) resolution
  • H.265+ video compression technology with real time encoding
  • Inbuilt 120dB WDR, 3D DNR, HLC, ROI, defog & BLC functions
  • Support triple streams
  • High performance IR Cut mechanical filter for True Day & Night vision
  • Inbuilt Smart Analytics Features
  • IP67 Weather proof outdoor enclosure
  • 1/2.7" Progressive Scan CMOS sensor with 5MP (2592 × 1944) effective pixels, minimum illumination color 0.01 lux @ F1.4 with AGC ON, and 0 lux with IR, signal to noise ratio greater than 50dB
  • Motorized varifocal lens 2.8–12mm with Φ14 lens mount, motorized focus, horizontal FOV 92.6°–28.9°, vertical FOV 67.5°–21.7°, and diagonal FOV 121.0°–36.1°
  • H.265+ / H.265 / H.264+ / H.264 / MJPEG video compression with H.265 Main Profile, triple streaming support, and video bit rate 64 Kbps to 8 Mbps
  • Main stream resolution up to 5MP/4MP/2K/3MP/1080P/720P at 1–30fps (60Hz) and 1–25fps (50Hz), HFR mode 1080P/720P at 1–60fps (60Hz) and 1–50fps (50Hz), sub stream 720P/D1/CIF/480×240, and third stream D1/CIF/480×240
  • Inbuilt high intensity Smart IR LEDs with auto intensity control, IR range 30–50 metres, true day & night with ICR, and high-performance mechanical IR Cut Filter with auto switch
  • 120dB Wide Dynamic Range (WDR), inbuilt 3D DNR, HLC, BLC, Defog, and ROI with adjustable saturation, brightness, hue, contrast, sharpness, image mirror, image flip, and NR via client software or web browser
  • Smart analytics including video exception detection (scene change, video blur, video cast), line crossing detection, region intrusion detection, abandoned/missing object detection, face detection, target counting by line/area, and heat map
  • Built-in Micro SD/SDHC/SDXC card slot up to 256GB onboard storage, NVR/CMS network storage, 1CH audio input, 1 RJ45 10/100M Ethernet port, VBR and CBR bandwidth control, and ONVIF compatible
  • Supports UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, and QoS protocols with video encryption, firmware encryption, HTTPS encryption, and IP address filtering
  • Operating temperature -30°C to +60°C, storage temperature -30°C to +65°C, operating humidity 95% or less, dimensions 217.8 × 80.5 × 80.3mm, weight approx. 0.66KG, IP67 weatherproof enclosure, powered by DC12V or PoE (IEEE802.3af) with max power consumption 8.5W, certified CE, FCC, and RoHS
