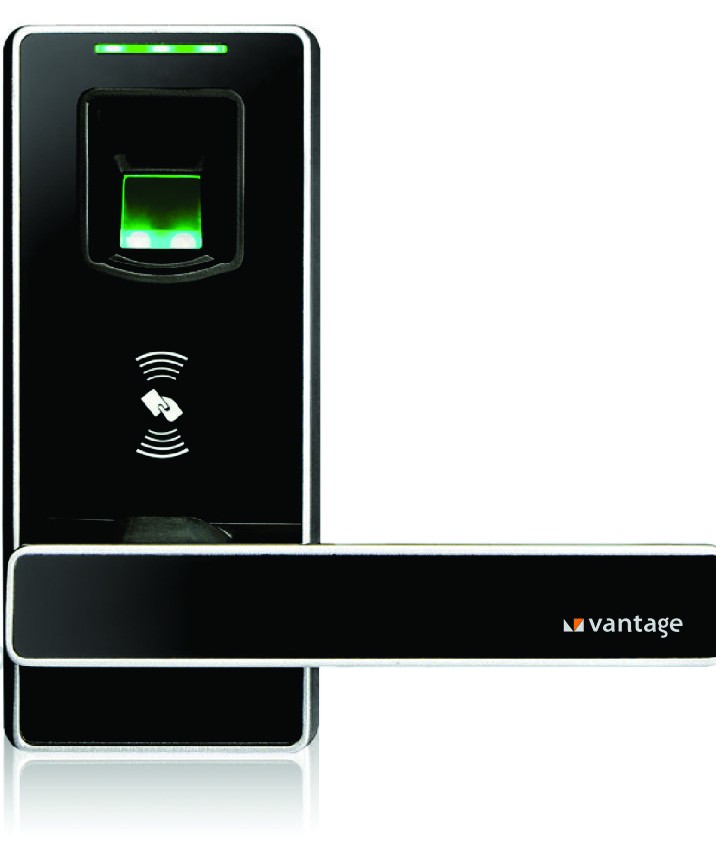

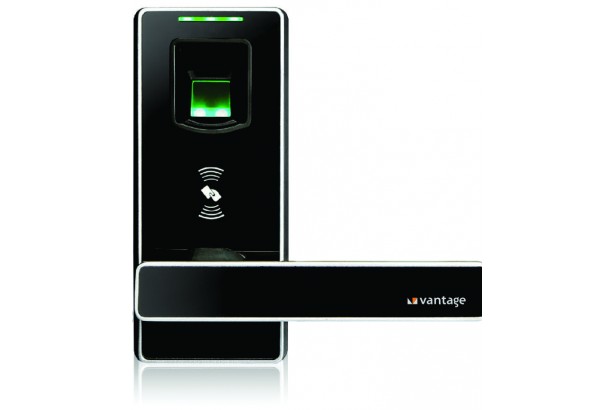

Biometric Fingerprint Based Standalone Lock
VP-EL800-FPZ1
- Three independent unlock method: Fingerprint, ID-Tag, mechanical key
- With the new generation fingerprint recognition algorithm
- Rugged, sleek and compact design
- American standard single latch for easy replacement and installation
- Independent clutch motor design under patent protection
- Idle handle design to prevent from forcible entry
- Registration data are stored even if there is power loss
- Handle, latch and strike is reversible design for all door open direction
- Capacitive sensing technology- Touch to open
- Emergency key override (concealed)
- LED indicator and inbuilt buzzer
- External terminals to draw back-up power from a 9V battery
- Low battery warning
- Easy to program and easy to use
- Easy to install–no wiring required
- 3 user groups - Admin, Normal User and Temporary User
- Backset is 60 mm or 70mm (adjustable)
- User capacity Admin – 20, Normal User – 120, Temporary User – 40 with fingerprint capacity 90 and card capacity 90
- Operating temperature -20°C to 55°C
- Power supply 4×AA alkaline battery with backup unlocking via mechanical key and 9V battery
- Door thickness 30–38mm (optional), 39–46mm (standard), 47–54mm (standard), 55–60mm (optional)
- Overall dimensions front 69(W)×155(L)×35(D)mm and back 69(W)×155(L)×25(D)mm
- Zinc alloy construction, certified CE, FCC and RoHS
