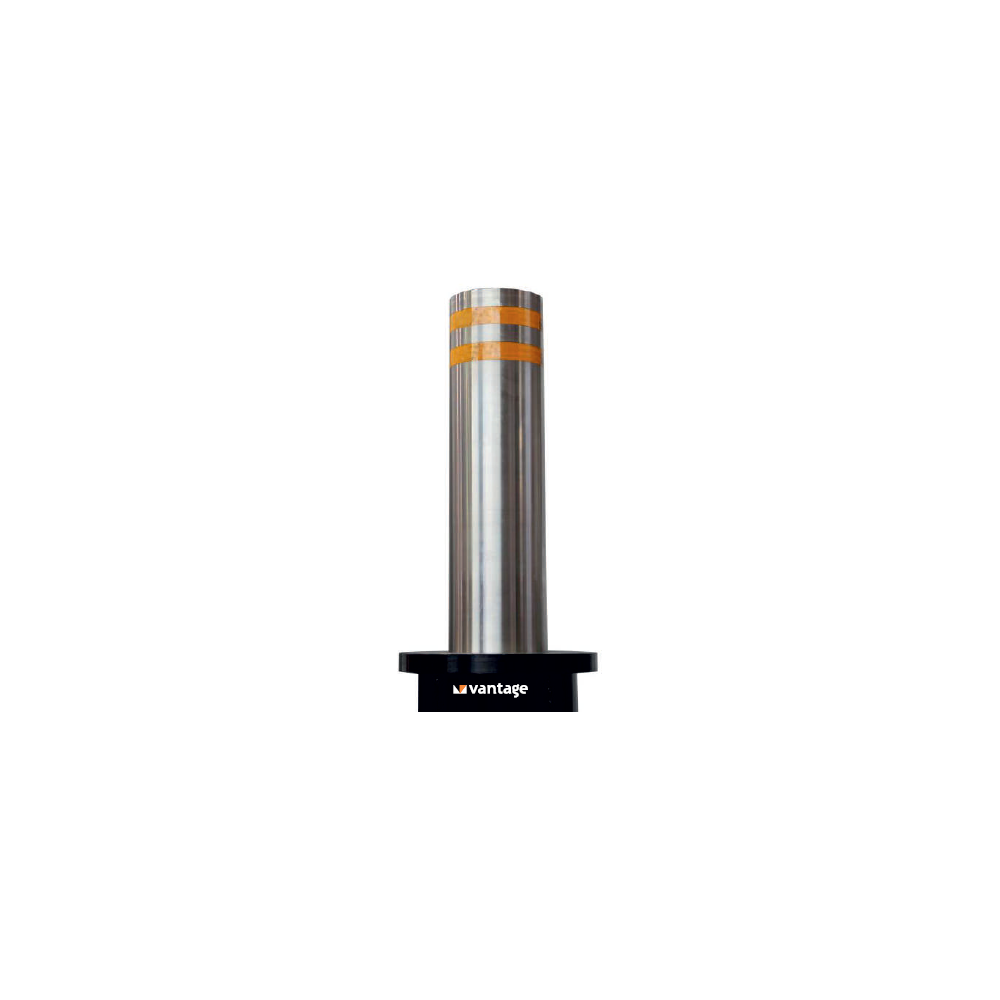

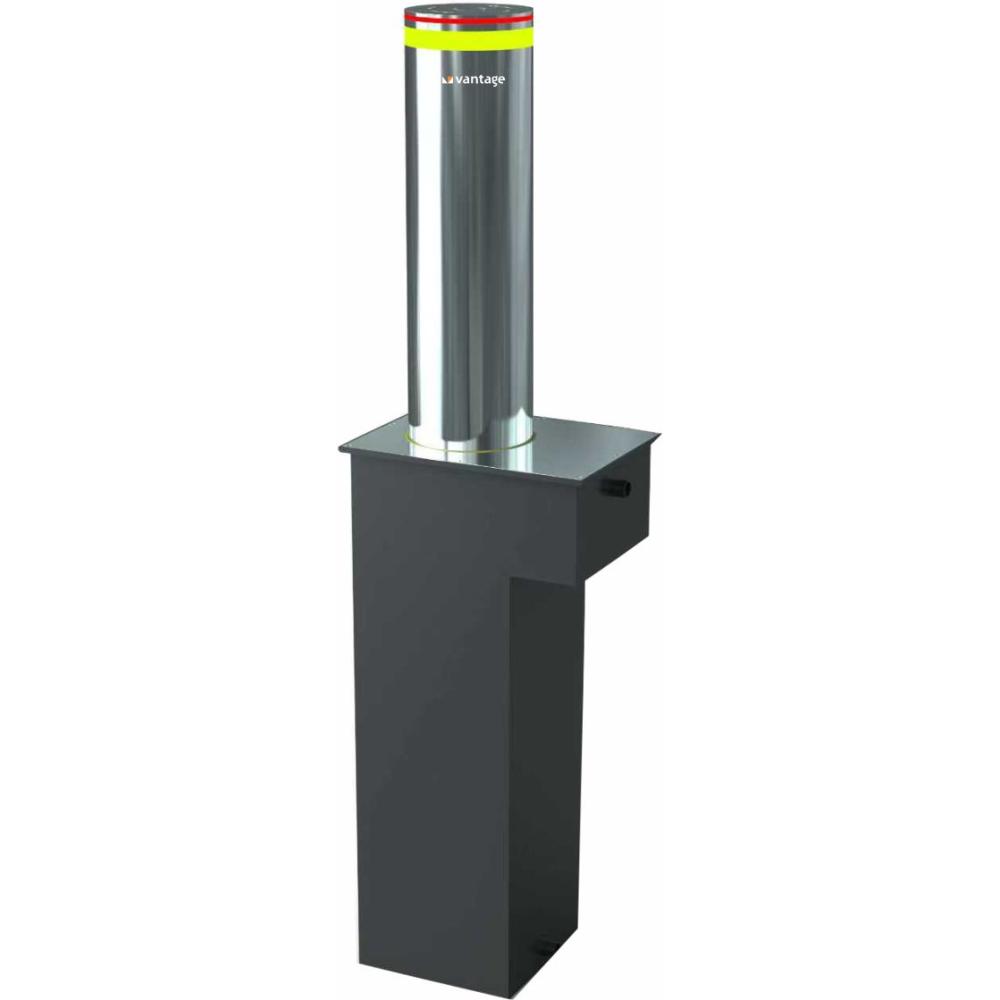

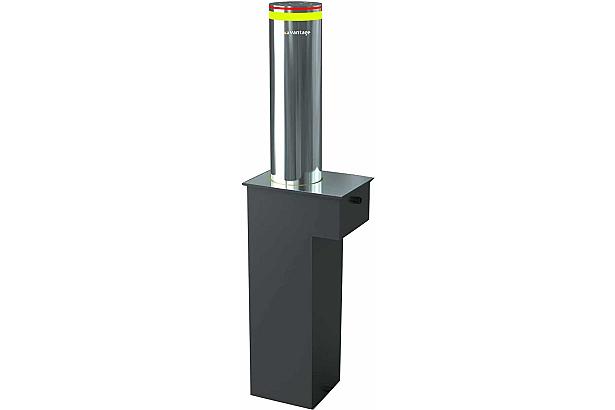

PAS68 Crash Rated Hydraulic Stainless Steel Bollard

PAS68 Crash Rated Hydraulic Stainless Steel Bollard
VV-VM7329HD-BLZ4
Image of '100% Duty Cycle' feature Image of 'Hydraulic Drive' feature Image of 'IP68' feature Image of 'PAS68 Crash Rated' feature Image of 'Remote Control' feature
  • Automatic hydraulic bollard for robust security and impact resistance
  • Emergency release function in case of power failure
  • Reliable technology for most intense use at all temperatures and weather conditions
  • High grade reflector for long distance visible warning (optional LED light)
  • Operated through built-in hydraulic pump unit and control system with wireless remote control (optional panel buttons)
  • IP68 ingress protection rating
  • PAS68 crash rated highly tensile 304 grade stainless steel construction
  • Automatic hydraulic ram drive bollard with 325mm cylinder diameter, 900mm cylinder intercept height, and 1300mm underground depth
  • Bollard dimension 700 × 500 × 1300mm, weight 600kg, constructed with 304 grade stainless steel cylinder material
  • Anti-corrosion treated cylinder finish with RAL color options and optional reflecting adhesive strip in supported colors
  • Rising time 4–5 seconds, working voltage AC 220V ± 10%, and IP68 ingress protection rating
  • Working temperature -40°C to +70°C with optional heating unit and optional top LED lights
  • PAS68:2013 crash test certified, test type 7500[N3]/80/90, tested with 7500kg vehicle weight at 80km/h
  • Control system powered by DC 24V, AC 220V power supply, and 750W power consumption with control unit dimension 600 × 400 × 200mm and IP54 rating
  • Remote control distance up to 30 metres with emergency release supporting raising and lowering of bollard in case of power failure
  • Single control system capable of driving up to 6 bollards with built-in pump
  • Control integration supports traffic light, inductive loop detectors, and optional access control equipment, certified CE and ISO9001
