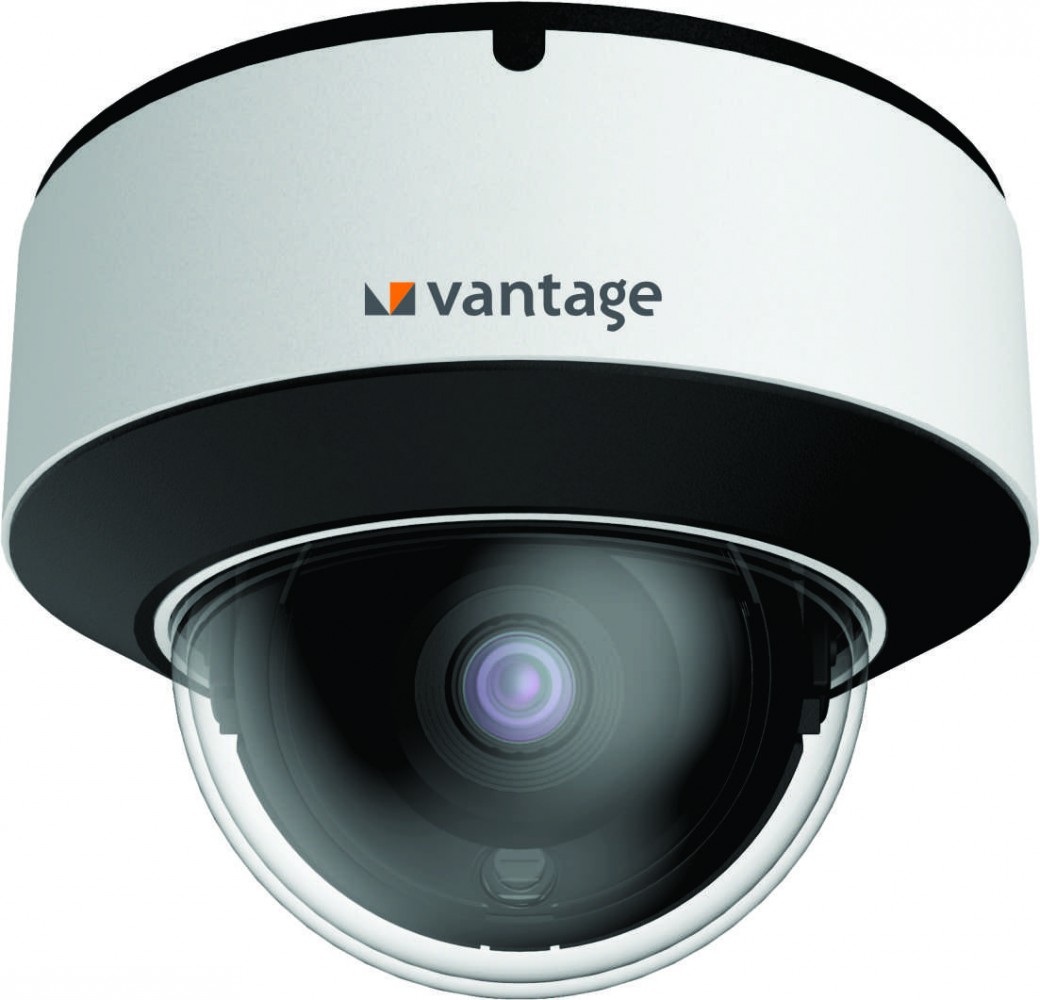

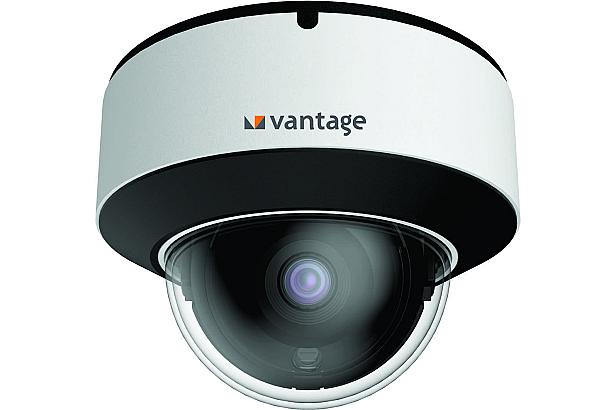

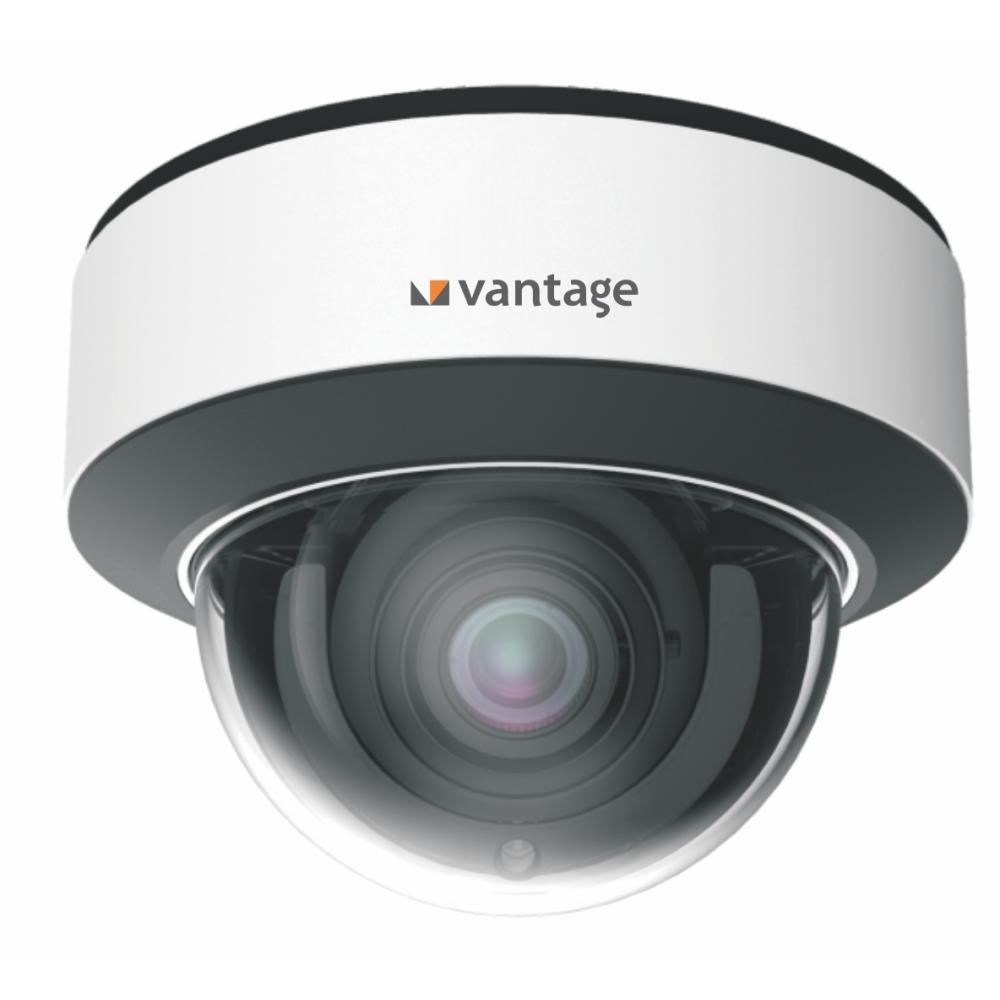

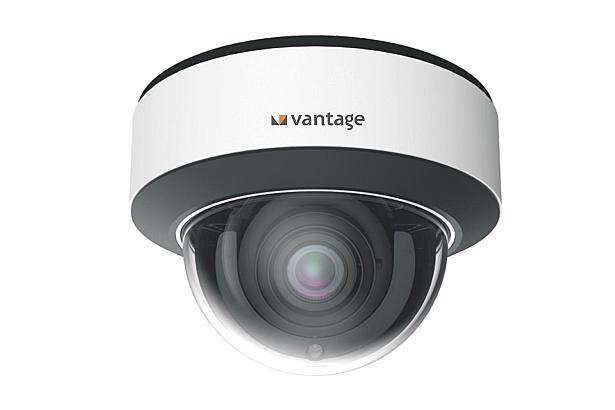

5MP Motorized Lens Dome IP Camera

5MP Motorized Lens Dome IP Camera
VV-NC91175D-AZ1IR2T1
Image of 'Backlight Compensation' feature Image of 'FR' feature Image of 'IK10 Vandal Proof Metal Dome Enclosure' feature Image of 'IP67 Weather Proof Outdoor Enclosure' feature Image of 'Smart IR ' feature
  • 1/2.5" Progressive Scan CMOS sensor with 5MP (2592 × 1944) effective pixels, minimum illumination 0.013 lux @ F1.2 with AGC ON, and 0 lux with IR enabled
  • Motorized varifocal lens 3.3–12mm with auto focus, optical zoom adjustment, horizontal field of view 93.9°–34.8°, and M12 lens mount
  • H.265 / H.264 / MJPEG video compression with H.265 Main Profile, triple streaming support, and video bit rate 128 Kbps to 10 Mbps
  • Main stream resolution up to 2592 × 1944 at 25fps (50Hz) and 30fps (60Hz), supporting 2560 × 1440, 1920 × 1080, and 1280 × 720 with sub and third stream at 1280 × 720, 704 × 480, 480 × 240, and 352 × 204
  • Inbuilt Smart IR LEDs with auto intensity control, IR range up to 50 metres, and true day & night vision with high-performance mechanical IR Cut Filter and auto switch
  • 120dB Wide Dynamic Range (WDR), inbuilt 3D DNR, HLC, BLC, Defog, and ROI functions with adjustable saturation, brightness, chroma, contrast, sharpness, NR, and antiflicker via client software or web browser
  • Smart analytics including object removal detection, regional intrusion detection, abnormal video detection, line crossing detection, people intrusion, people counting, face detection, and crowd density detection (optional)
  • Built-in Micro SD / SDHC / SDXC card slot up to 128GB onboard storage, CVBS video output (BNC × 1), 1CH audio input, 1CH audio output, 1CH alarm input, 1CH alarm output, and RS485 support
  • 1 RJ45 10/100M Ethernet port, ONVIF compatible, supports IPv4/IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, HTTPS, 802.1x, and QoS protocols with VBR and CBR bandwidth control
  • Operating temperature -30°C to +60°C, operating humidity 95% or less (non-condensing), dimensions Φ141 × 100.2mm, weight approx. 0.89KG, IP67 weatherproof enclosure, IK10 impact protection, powered by 12VDC ± 10% or PoE (802.3af) with max power consumption under 9W, certified CE, FCC, and RoHS
  • Motorized 3.3–12mm lens with optical zoom and auto focus adjustment
  • IK10 vandal-resistant and IP67 weatherproof dome design for high-security environments
  • Smart IR night vision up to 50 meters with automatic intensity control
  • Advanced analytics including face detection, people counting and intrusion detection
  • 1/2.5" Progressive Scan CMOS sensor with 5MP (2592 × 1944) resolution
  • H.265, H.264 and MJPEG video compression support
  • Minimum illumination 0.013 Lux (Color) and 0 Lux with IR
  • 120dB Wide Dynamic Range with 3D DNR, BLC, HLC and defog functions
  • Supports triple streaming with CVBS video output and audio support
  • Built-in Micro SD card slot supporting up to 128GB storage
