CCTV Surveillance Cameras

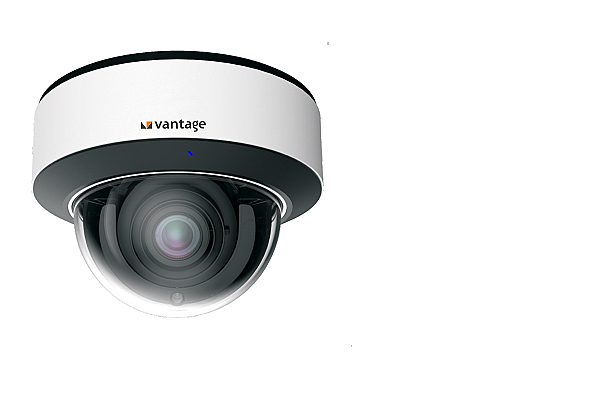

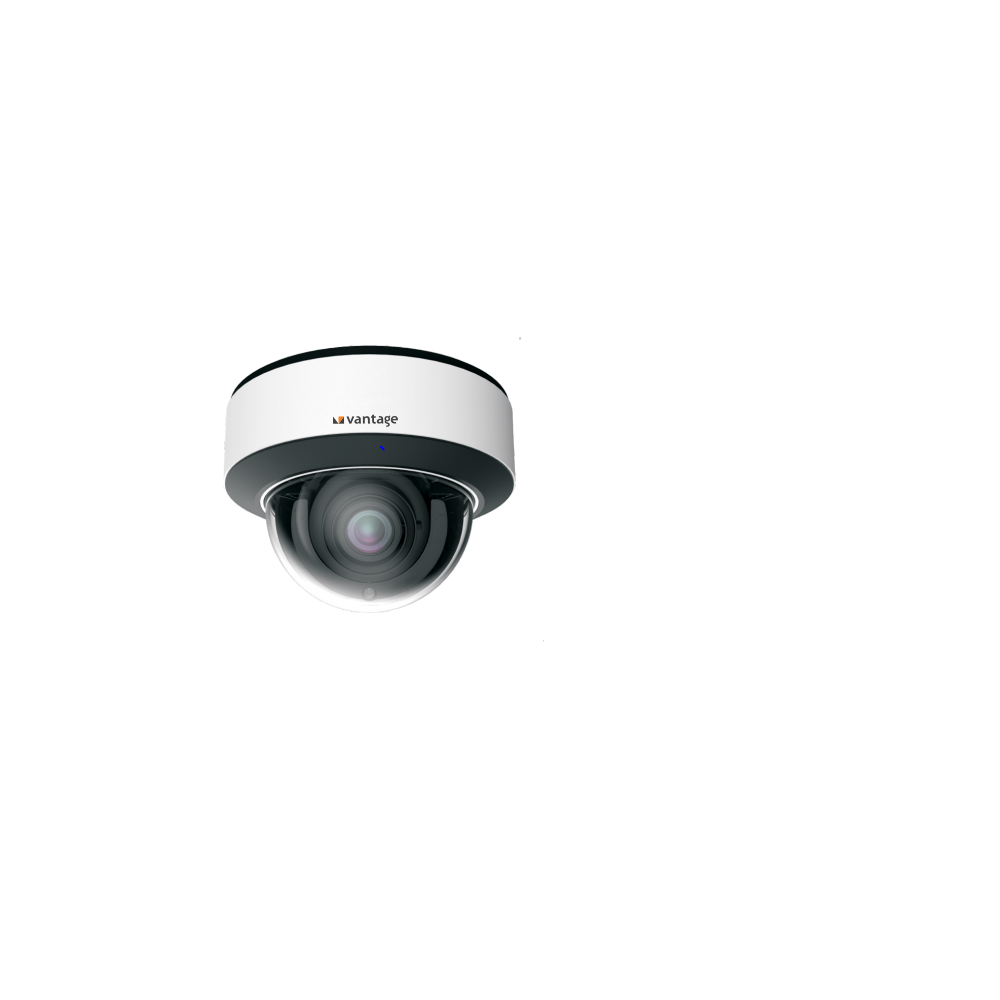

8MP Motorized Lens Dome IP Camera
VV-NC41178D-AZIR2T1
- Ultra HD 8MP ( 3840 x 2160) resolution
- H.265+ video compression technology with real time encoding
- Inbuilt 120dB WDR, 3D DNR, HLC, ROI, Defog & BLC functions
- Support triple streams
- High performance IR Cut mechanical filter for true day & night vision
- Inbuilt smart analytics features
- Built-in micro SD card slot, up to 256GB
- IP67 Weather proof outdoor enclosure
- 1/2.8" Progressive Scan CMOS sensor with 8MP (3840 × 2160) effective pixels, minimum illumination 0.02 lux @ F1.6 with AGC ON, and 0 lux with IR enabled
- Motorized varifocal lens 2.8–12mm @ F1.6 with auto-focus, horizontal FOV 99°–33°, vertical FOV 53°–17°, and diagonal FOV 117°–37°
- H.265+ / H.265 / H.264+ / H.264 / MJPEG video compression with triple streaming, video bit rate 64 Kbps to 12 Mbps, and real-time encoding support
- Inbuilt Smart IR LEDs with auto intensity control, IR range 30–50 metres, true day & night vision with high-performance mechanical IR Cut Filter and auto switch
- 120dB Wide Dynamic Range (WDR), inbuilt 3D DNR, HLC, ROI, Defog, and BLC functions with adjustable saturation, brightness, hue, contrast, and sharpness via web browser or client software
- Main stream resolution up to 8MP (3840 × 2160) at 1–20fps, supporting 6MP, 5MP, 4MP, 2K, 3MP, 1080P, and 720P at 1–25fps (50Hz) or 1–30fps (60Hz) with sub and third stream support
- Built-in Micro SD / SDHC / SDXC card slot up to 256GB onboard storage, NVR/CMS network storage support, and simultaneous monitoring for up to 10 users
- Smart analytics including scene change detection, video blur detection, abnormal color detection, line crossing detection, and intrusion detection
- 1 RJ45 10M/100M Ethernet port, CVBS video output (BNC×1), 1CH audio input, 1CH audio output, 1CH built-in MIC, 1CH alarm input, 1CH alarm output, DC12V and PoE (IEEE802.3af) powered with max 10.5W consumption
- Operating temperature -30°C to +60°C, storage temperature -30°C to +65°C, dimensions Φ141 × 100.2mm, weight approx. 0.91KG, IP67 weatherproof enclosure, IK10 impact protection, certified CE, FCC, and RoHS
