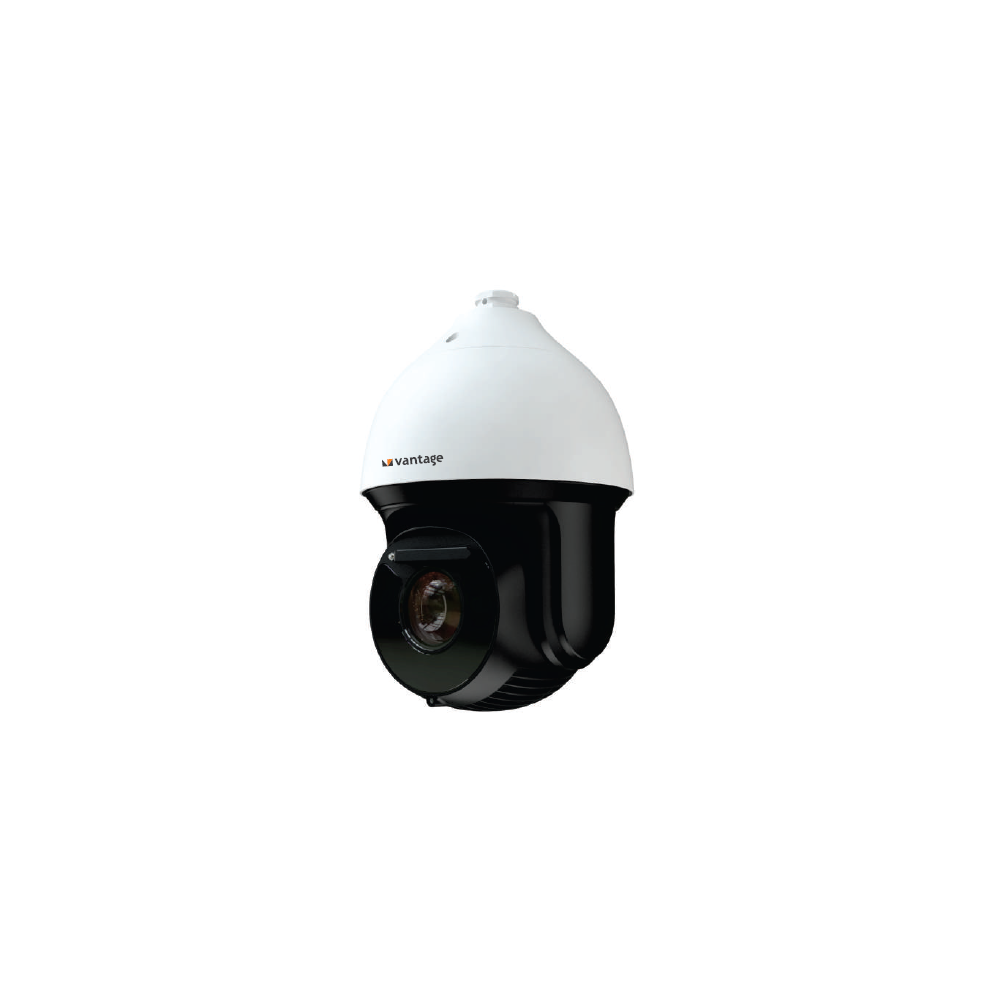

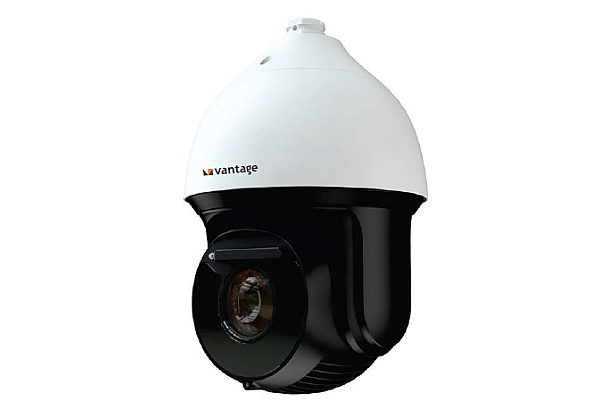

8MP IP PTZ Camera with 50x Optical Zoom and Smart AI

8MP IP PTZ Camera with 50x Optical Zoom and Smart AI
VP-NC9918P-AZ50IR8T1
Image of '1/1.8 Progressive Scan CMOS Sensor' feature Image of '360° Endless Panning' feature Image of 'Defog' feature Image of 'Privacy Zone' feature Image of 'VCA' feature
  • Ultra high definition 8MP (3840×2160) resolution
  • 1/1.8" progressive scan CMOS Sensor
  • Inbuilt 2D/3D DNR, HLC,HDR, BLC & Defog functions
  • Support H.265+/H.265/H.264+/H.264,MJPEG video compression
  • 50x Optical zoom
  • 360° endless panning
  • Inbuilt IR LEDs for 500 mtrs light distance
  • IP67 Weather proof outdoor enclosure
  • Sensor and resolution: 1/1.8" Progressive Scan CMOS (Sony IMX678), Ultra HD 8MP at 3840×2160 (4K), 25/30fps on the main stream.
  • Class-leading optics: 5.3mm to 265mm motorized lens with 50x optical zoom plus 8x digital zoom, P-IRIS 10-blade diaphragm, aperture range F1.4 to F4.2.
  • IR night vision: 12 IR LEDs plus IR VCSEL across 6 groups with auto zoom-matching, delivering up to 500 metres light distance.
  • Long-range DORI: Detects up to 3,270m, observes up to 1,298m, recognises up to 654m and identifies up to 327m at full telephoto.
  • Low-light performance: Minimum illumination of 0.0013 Lux (colour) and 0.00026 Lux (B/W), down to 0 Lux with IR active.
  • PTZ movement: 360° endless pan, tilt from -20° to 180° with auto flip, 360 presets, 8 cruises (up to 16 presets each), and 4 traces.
  • Video compression: H.265+/H.265/H.264+/H.264/MJPEG with triple-stream output and bitrate from 32Kbps to 16Mbps.
  • Smart analytics: Perimeter protection (line crossing, intrusion, region entrance/exit), object removal and audio exception detection, auto-tracking of people and vehicles, face capture and comparison, plus optional ANPR road-traffic recognition with Smart IR facial/ANPR priority.
  • Connectivity and storage: ONVIF-compliant, RJ45 10M/100M Ethernet with PoE (802.3bt), micro SD up to 256GB, 16 users across 3 levels, RS485 (PELCO-P/D), RTMP/TLS1.2, plus 7CH alarm input and 2CH alarm output.
  • Build and protection: IP67 weatherproof aluminium-alloy enclosure, IK10 impact rating, 6,000V TVS lightning protection, built-in heater/fan with frost, fog and water removal, operating range -40°C to +70°C. Weight approx. 9.4kg.
