CCTV Surveillance Cameras

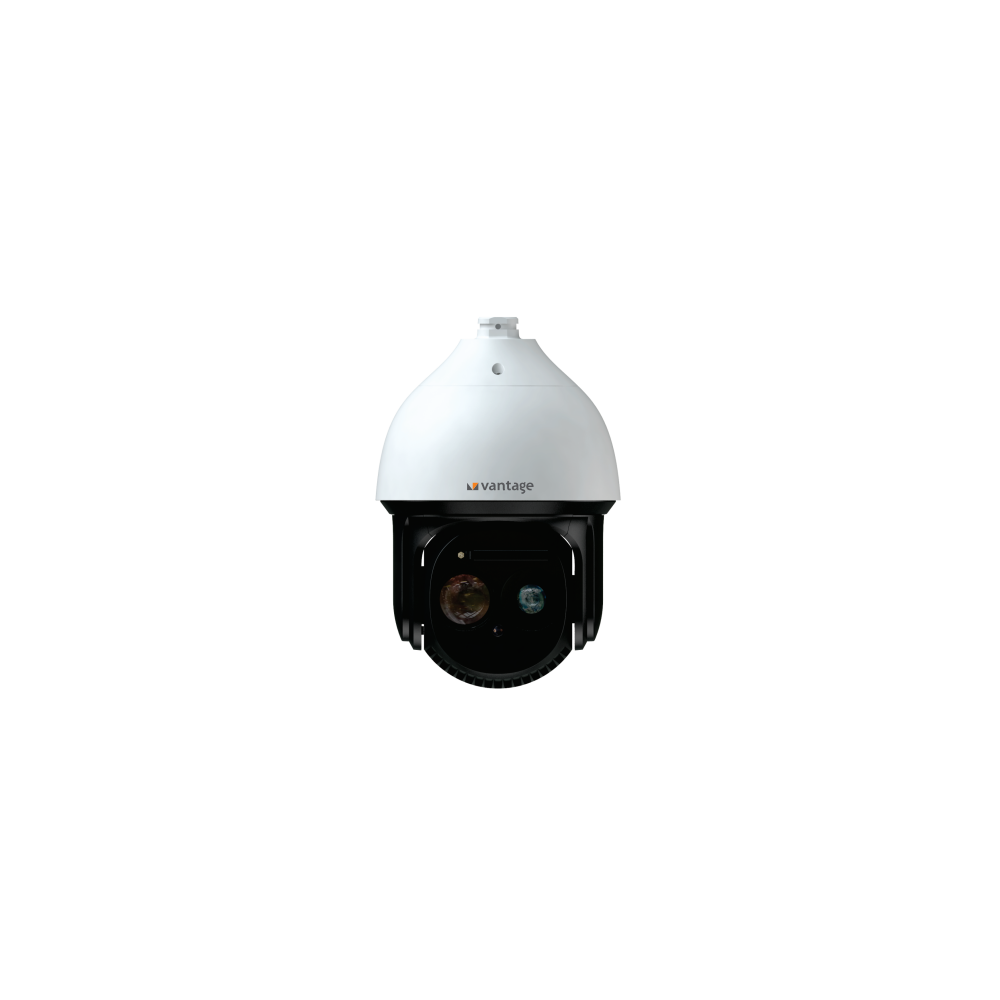

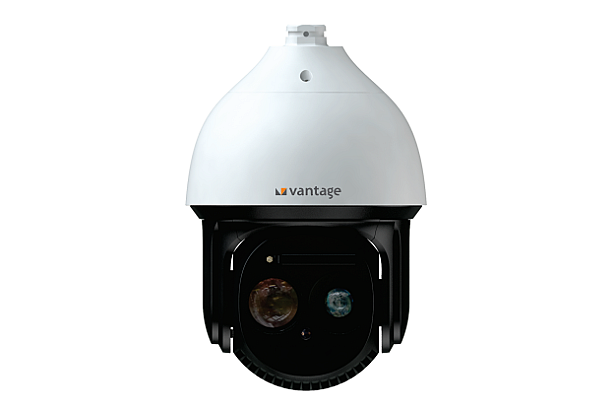

8MP IP PTZ Camera with 37x Optical Zoom and Smart AI
VP-NC9778P-AZ37IR9T1
- Ultra high definition 8MP (3840×2160) resolution
- 1/1.8" progressive scan CMOS Sensor
- Inbuilt 2D/3D DNR, HLC,HDR, BLC & Defog functions
- Support H.265+/H.265/H.264+/H.264,MJPEG video compression
- 37x Optical zoom
- 360° endless panning
- Inbuilt IR LEDs for 800 mtrs light distance
- IP67 Weather proof outdoor enclosure
- Sensor and resolution: 1/1.8" Progressive Scan CMOS (Sony IMX678), Ultra HD 8MP at 3840×2160 (4K), 25/30fps on the main stream.
- Laser night vision: Continuous-zoom VCSEL laser illuminator delivering up to 800 metres light distance, with 3-filter switching (IR-Cut, IR Only, Near-IR pass).
- Optics: 6mm to 222mm motorized lens with 37x optical zoom plus 8x digital zoom, P-IRIS 6-blade diaphragm, aperture range F1.2 to F4.6.
- Long-range DORI: Detects up to 2,960m, observes up to 1,429m, recognises up to 592m and identifies up to 296m at full telephoto.
- Low-light performance: Minimum illumination of 0.001 Lux (colour) and 0.0002 Lux (B/W), down to 0 Lux with IR active.
- PTZ movement: 360° endless pan, tilt from -25° to 155° with auto flip, 360 presets, 8 cruises (up to 16 presets each), and 4 traces.
- Video compression: H.265+/H.265/H.264+/H.264/MJPEG with triple-stream output and bitrate from 32Kbps to 16Mbps.
- Smart analytics: Perimeter protection (line crossing, intrusion, region entrance/exit), object removal and audio exception detection, auto-tracking of people and vehicles, face capture and comparison, plus ANPR road-traffic recognition.
- Connectivity and storage: ONVIF G/S/T compliant, RJ45 10M/100M Ethernet with High Power PoE (802.3bt, 90W), micro SD up to 256GB, 16 users across 3 levels, RS485 (PELCO-P/D), plus 7CH alarm input and 2CH alarm output.
- Build and protection: IP67 weatherproof aluminium-alloy enclosure, IK10 impact rating, 6,000V TVS lightning protection, built-in heater/fan with frost, fog and water removal, operating range -40°C to +70°C. Weight approx. 8.8kg.
