CCTV Surveillance Cameras

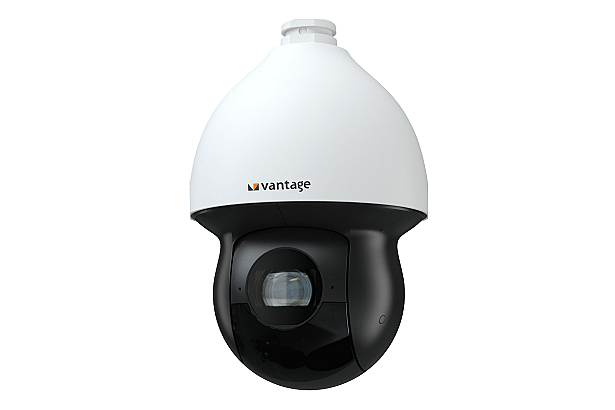

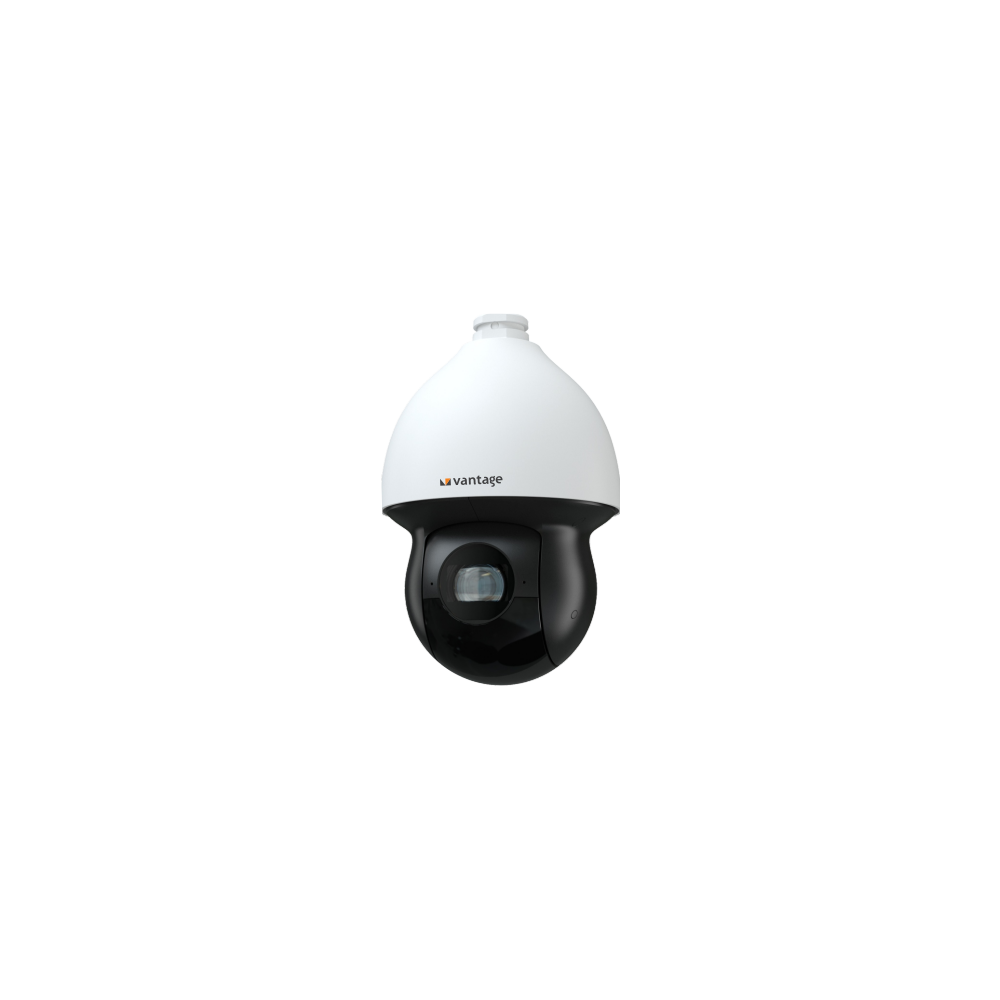

8MP IP PTZ Camera with 32x Optical Zoom and Smart AI
VP-NC9818P-AZ32IR7T1
- Ultra high definition 8MP (3840×2160) resolution
- 1/2.8" progressive scan CMOS Sensor
- Inbuilt 120dB WDR, HLC, BLC, 3D DNR, and Smart IR functions
- Support H.265+/H.265/H.264+/H.264,MJPEG video compression
- 32x Optical zoom
- 360° endless panning
- Inbuilt IR LEDs for 200 mtrs IR range
- Smart Video content analytics
- IP67 Weather proof outdoor enclosure
- Sensor and resolution: 1/2.8" Sony Progressive Scan CMOS, Ultra HD 8MP at 3840×2160 (4K), 25/30fps on the main stream.
- Optics: 4.8mm to 154mm motorized lens with 32x optical zoom plus 8x digital zoom, aperture range F1.3 to F4.8.
- IR night vision: Built-in array IR LEDs delivering up to 200 metres range, with Smart IR and True Day and Night switching via mechanical IR-cut filter.
- Low-light performance: Minimum illumination of 0.01 Lux (colour) and 0.002 Lux (B/W), down to 0 Lux with IR active.
- PTZ movement: 360° endless pan, tilt from -25° to 155° with auto flip, 300 presets, 8 patrols (up to 16 presets each), and 4 tour patterns.
- Image enhancement: 120dB WDR, 3D DNR, HLC, BLC and OSD for clear footage in high-contrast and low-light scenes.
- Video compression: H.265+/H.265/H.264+/H.264/MJPEG with triple-stream output and bitrate from 64Kbps to 16Mbps.
- Smart analytics: Tripwire, bi-directional tripwire, illegal intrusion detection, region entrance/exit detection, vehicle detection and tracking, auto-tracking of humans and vehicles, plus face detection, capture and comparison (up to 17 faces per scene).
- Connectivity and storage: ONVIF-compliant, RJ45 10M/100M Ethernet with PoE++ (802.3bt), micro SD onboard storage up to 256GB, 16 users across 3 levels, RTMP support, plus 1CH alarm in/out.
- Build and protection: IP67 weatherproof enclosure, IK10 impact rating, 6,000V TVS lightning protection, built-in heater/fan with frost, fog and water removal, operating range -40°C to +65°C. Weight approx. 2.82kg.
